Instrument and control functions
3-23
3
EAU47001
Adjusting the shock absorber
assembly
This shock absorber assembly is
equipped with a spring preload adjust-
ing ring.
NOTICE
ECA10102
To avoid damaging the mechanism,
do not attempt to turn beyond the
maximum or minimum settings.
Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring in direction (a). To
decrease the spring preload and there-
by soften the suspension, turn the ad-
justing ring in direction (b).
 Align the appropriate notch in the
adjusting ring with the position in-
dicator on the shock absorber.
 Use the special wrench and ex-
tension bar included in the own-
er’s tool kit to make the
adjustment.
WARNING
EWA10222
This shock absorber assembly con-
tains highly pressurized nitrogen
gas. Read and understand the fol-
lowing information before handling
the shock absorber assembly.
 Do not tamper with or attempt
to open the cylinder assembly.
 Do not subject the shock ab-
sorber assembly to an open
flame or other high heat source.
This may cause the unit to ex-
plode due to excessive gas
pressure.
 Do not deform or damage the
cylinder in any way. Cylinder
damage will result in poor
damping performance.
 Do not dispose of a damaged or
worn-out shock absorber as-
sembl
y
yourself. Take the shock
absorber assembly to a Yamaha
dealer for any service.

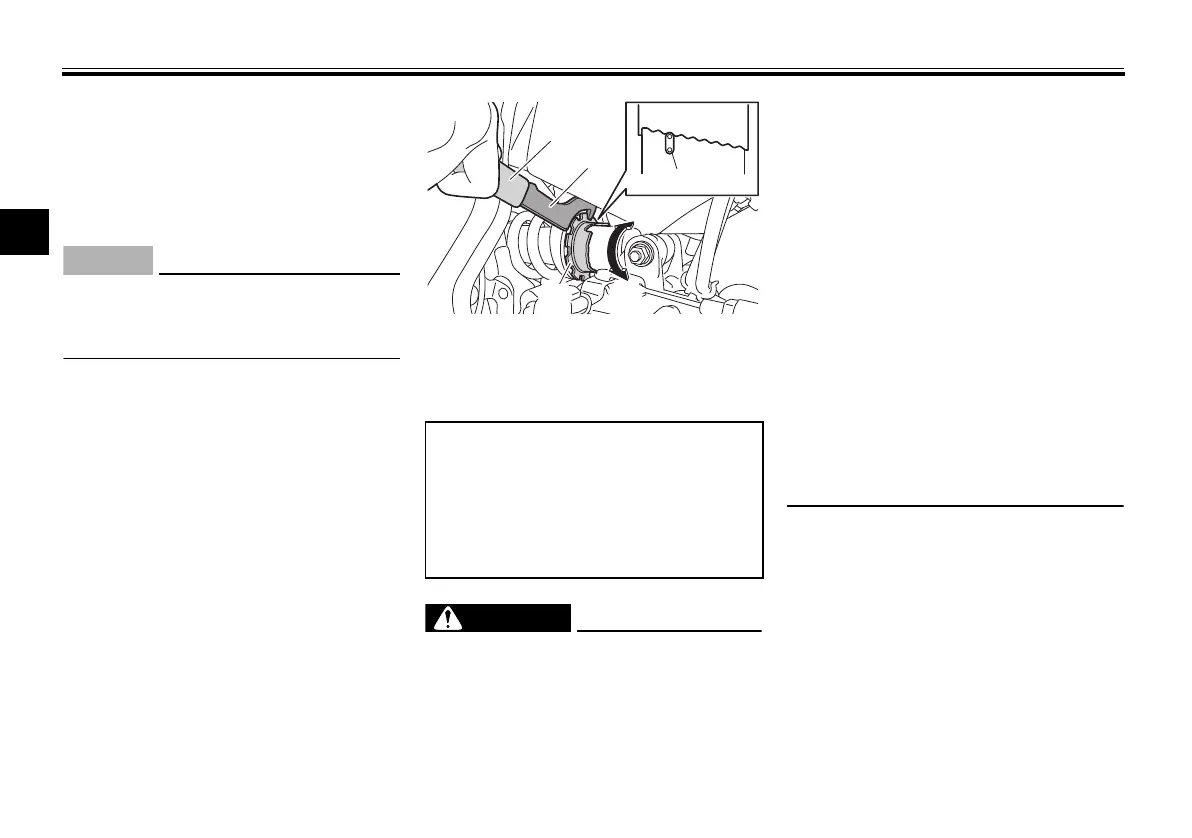

1. Extension bar
2. Special wrench
3. Spring preload adjusting ring
4. Position indicator
Spring preload setting:
Minimum (soft):
1
Standard:
3
Maximum (hard):
9
7
6
9
8
5
4
3
2
1
3
(a)
(b)
2
1
4
UBU2E0E0.book Page 23 Friday, September 9, 2016 9:23 AM

Yamaha MT-07 2016 Specifications

General

Displacement	689 cc
Bore x Stroke	80.0 mm x 68.6 mm
Compression Ratio	11.5:1
Maximum Power	55.0 kW (74.8 PS) @ 9, 000 rpm
Maximum Torque	68.0 Nm (6.9 kg-m) @ 6, 500 rpm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	Constant mesh, 6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Brake	Hydraulic dual disc, Ø 282 mm
Rear Brake	Hydraulic single disc, Ø 245 mm
Front Tire	120/70 ZR17 M/C (58W)
Rear Tire	180/55 ZR17 M/C (73W)
Overall Length	2, 085 mm
Overall Width	745 mm
Overall Height	1, 090 mm
Seat Height	805 mm
Wheelbase	1, 400 mm
Minimum Ground Clearance	140 mm
Wet Weight	179 kg
Fuel Tank Capacity	14 L
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Rear Suspension	Swingarm, (link suspension)
