Yamaha MT-07 2019 User Manual

Periodic maintenance and adjustment
6-31
6
EAU59872

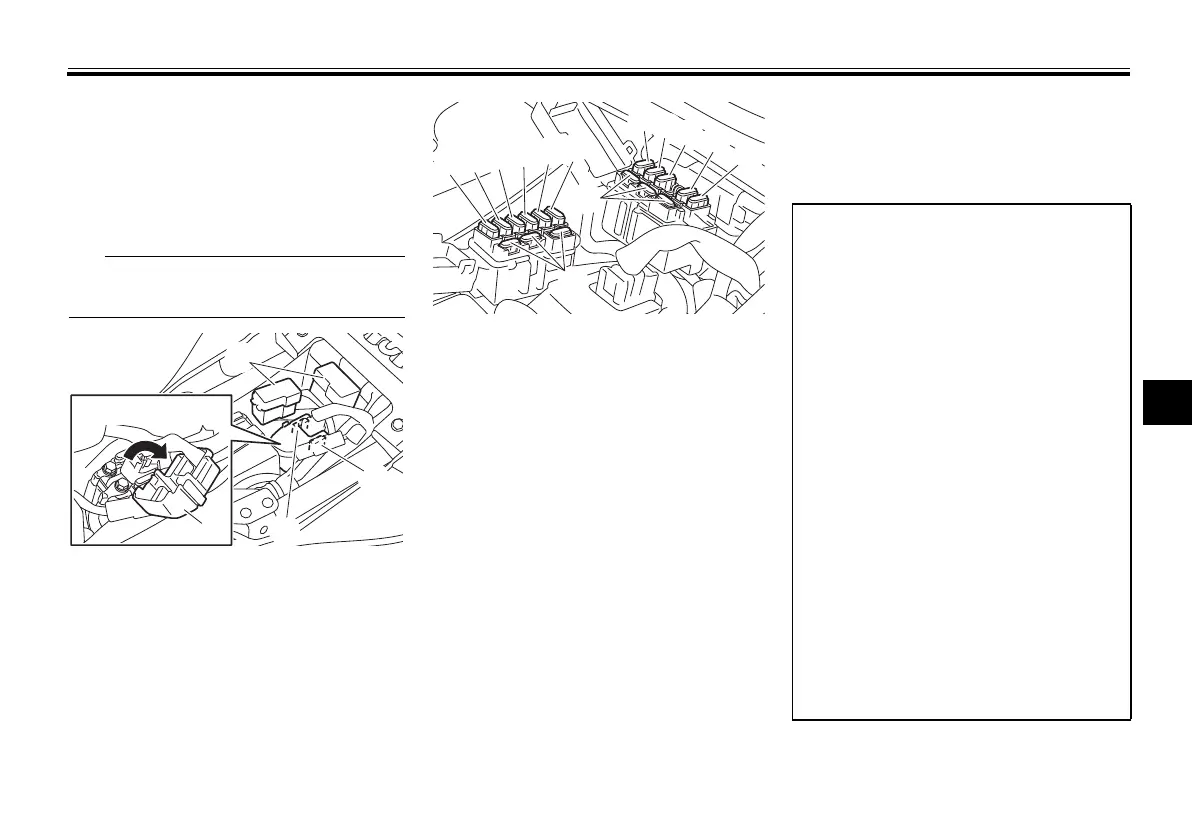

Replacing the fuses
The main fuse and the fuse boxes,
which contain the fuses for the individ-
ual circuits, are located under the rider
seat. (See page 3-19.)
TIP
To access the main fuse, remove the
starter relay cover as shown.
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15132]
1. Starter relay cover
2. Fuse box
3. Spare main fuse
4. Main fuse
2
3
4
1
1. Ignition fuse
2. Signaling system fuse
3. Headlight fuse
4. Backup fuse 2 (for ECU)
5. Backup fuse (for clock and immobilizer sys-
tem)
6. Radiator fan motor fuse
7. ABS solenoid fuse
8. ABS motor fuse
9. Parking lighting fuse
10.Auxiliary fuse
11.ABS control unit fuse
12.Spare fuse
7
8
9
10
11
1
2
3
4
5
6
12
12
Specified fuses:
Main fuse:
30.0 A
Auxiliary fuse:
2.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
10.0 A
Parking lighting fuse:
7.5 A
Radiator fan motor fuse:
10.0 A
ABS motor fuse:
30.0 A
ABS solenoid fuse:
20.0 A
ABS control unit fuse:
7.5 A
Backup fuse:
7.5 A
Backup fuse 2:
10.0 A
UB4CE1E0.book Page 31 Friday, August 3, 2018 10:57 AM

Yamaha MT-07 2019 Specifications

General

Displacement	689cc
Bore x Stroke	80.0mm x 68.6mm
Compression Ratio	11.5:1
Maximum Power	55.0 kW (74.8 PS) @ 9, 000 rpm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Brake	Hydraulic dual disc, Ø282 mm
Rear Brake	Hydraulic single disc, Ø245 mm
Front Tire	120/70 ZR17 M/C(58W) (Tubeless)
Rear Tire	180/55 ZR17 M/C(73W) (Tubeless)
Overall Length	2, 085 mm
Overall Width	745 mm
Overall Height	1, 090 mm
Seat Height	805 mm
Wheelbase	1, 400 mm
Wet Weight	182 kg
Fuel Tank Capacity	14 L
Minimum Ground Clearance	140 mm
Oil Tank Capacity	3.0 L
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	68.0 Nm (6.9 kgf-m) @ 6, 500 rpm
Rear Suspension	Swingarm, (link suspension)
