Yamaha P-45B User Manual

P-115B/P-115WH/P-45B
11

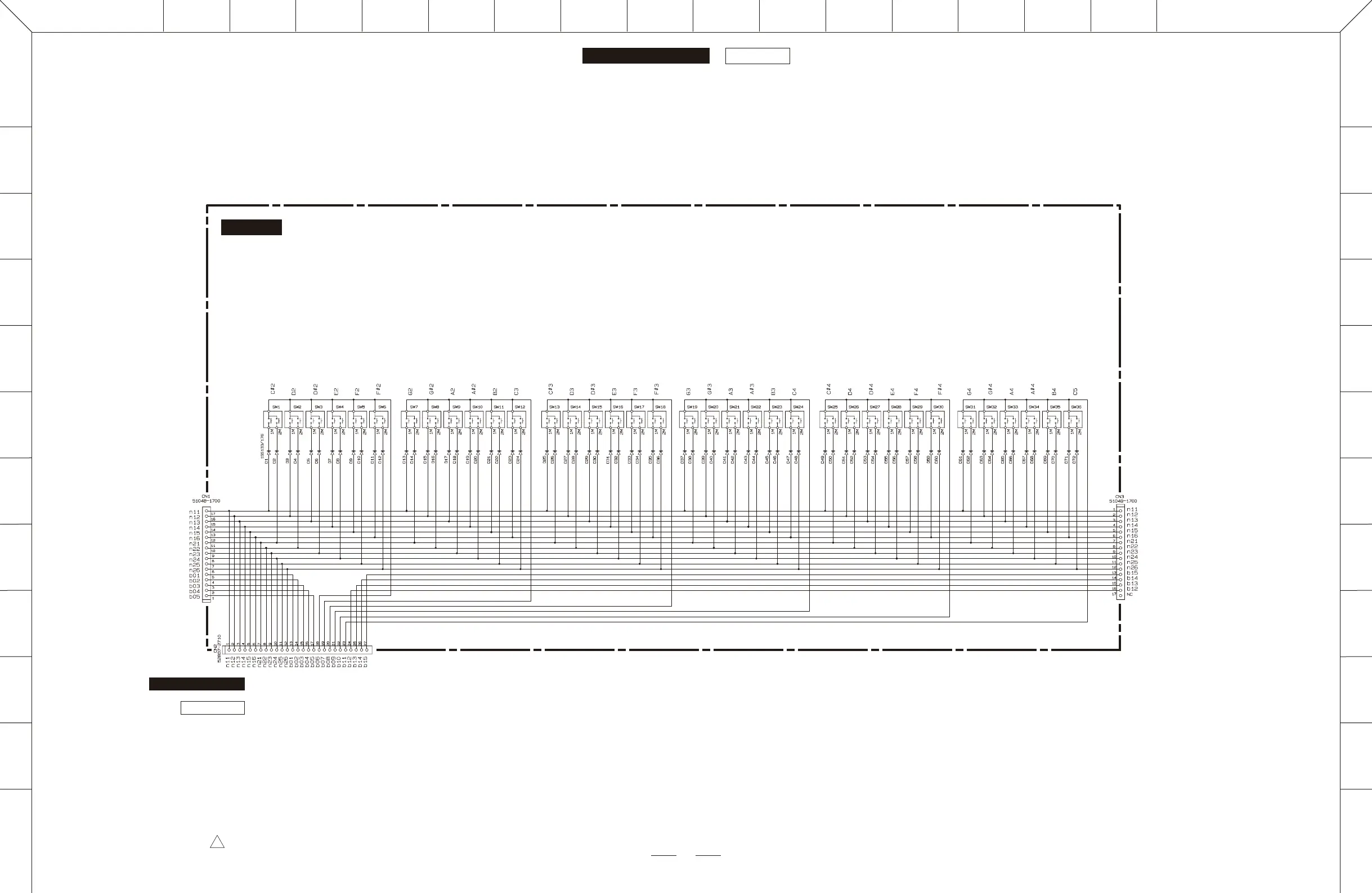

■ GHL88M CIRCUIT DIAGRAM (P-115B/P-115WH/P-45B)
■ GHL88M CIRCUIT DIAGRAM (P-115B/P-115WH/P-45B)
GHL88M
to GHL88L-CN1
(Page 10: B-7)
to GHL88H-CN1
(Page 9: M-8)
to DM-CN1 (Page 6: U-16)
to DM-CN201 (Page 12: K-1)
P-115B/P-115WH
P-45B
28CC1-2000006193
1
LMNOPQ K J I H G F E D C B A
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
P-45B
P-115B/P-115WH

Yamaha P-45B Specifications

General

Type	Digital Piano
Voices	10
Effects	Reverb (4 types)
Sound Source	AWM Stereo Sampling
Dual/Layers	Yes
Duo Mode	Yes
Metronome	Yes
Touch Sensitivity	Hard/Medium/Soft/Fixed
Demo Songs	10
Amplifiers	6 W x 2
Speakers	12 cm x 2
Weight	11.5 kg (25 lbs, 6 oz)
Included Accessories	Music Rest, Pedal/Footswitch, AC Adaptor
Keyboard	88-key Graded Hammer Standard (GHS) keyboard
Polyphony	64
Transpose	Yes
Tuning	414.8 - 440.0 - 446.8 Hz
Connectors	Headphones, Sustain Pedal, USB to Host
Power Supply	PA-150
Dimensions	1326 x 154 x 295 mm
Built-in Songs	10 Voice Demo Songs + 10 Piano Preset Songs
