Yamaha YZ250 User Manual

4-57

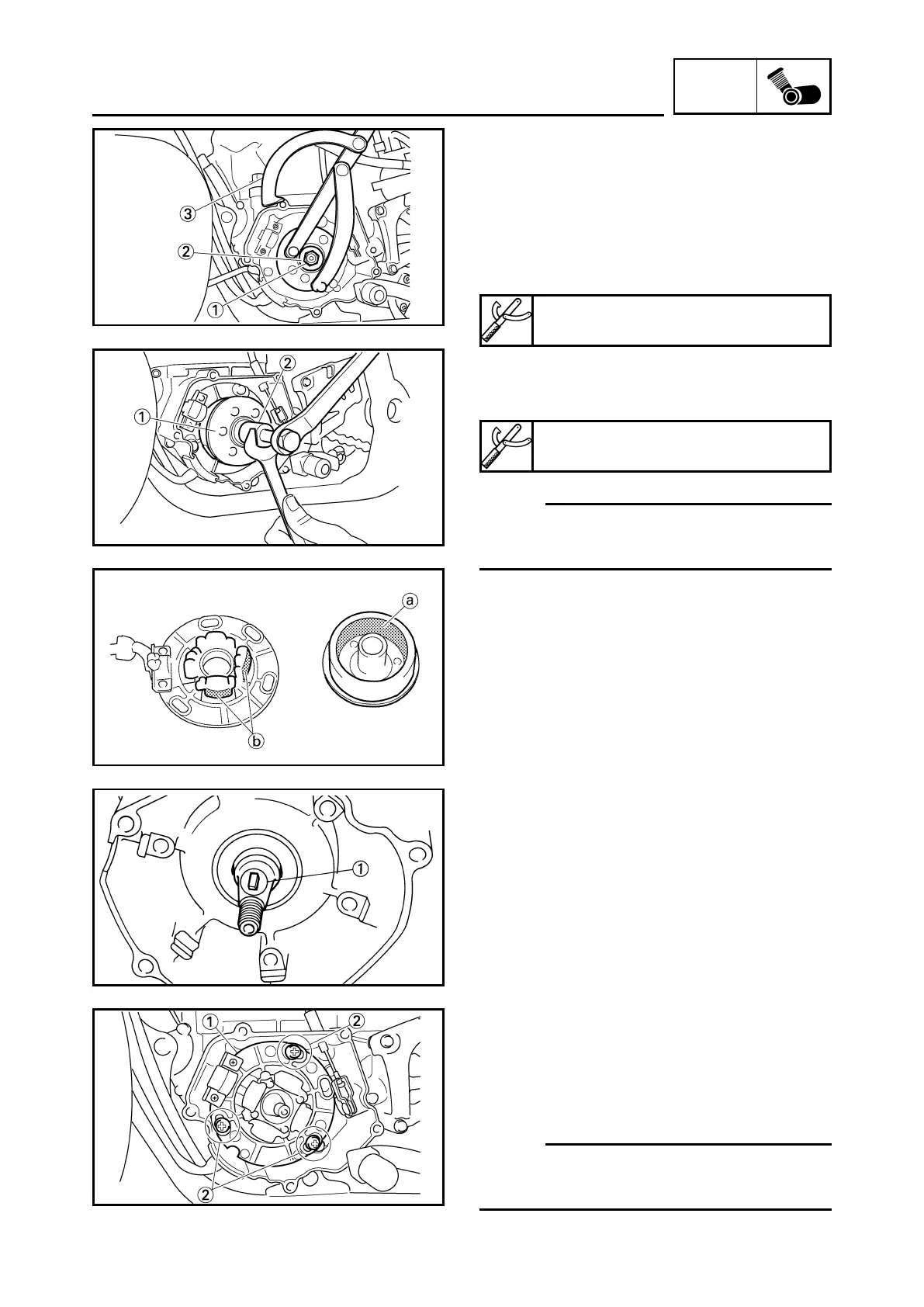

CDI MAGNETO
ENG
EC4L5000
ASSEMBLY AND INSTALLATION
EC4L5172
CDI magneto
1. Install:
9
Stator 1
9
Screw (stator) 2
NOTE:
Temporarily tighten the screw (stator) at this
point.
2. Remove:
9
Rotor 1
Use the flywheel puller 2.
NOTE:
When installing the flywheel puller, turn it coun-
terclockwise.
EC4L3000
REMOVAL POINTS
EC4L3102
Rotor
1. Remove:
9
Nut (rotor) 1
9
Plain washer 2
Use the rotor holding tool 3.
EC4L4000
INSPECTION
EC4L4101
CDI magneto
1. Inspect:
9
Rotor inner surface a
9
Stator outer surface b
Damage
→ Inspect the crankshaft runout
and crankshaft bearing.
If necessary, replace CDI magneto and/or
stator.
EC4L4200
Woodruff key
1. Inspect:
9
Woodruff key 1
Damage → Replace.
Rotor holding tool:
YU-1235/90890-01235
Flywheel puller:
YM-1189/90890-01189
1P8-9-30-4C 21/5/04 12:59 PM Page 16

Yamaha YZ250 Specifications

General

Engine Type	249cc liquid-cooled 2-stroke; reed-valve inducted
Bore x Stroke	66.4mm x 72.0mm
Compression Ratio	8.9~10.6:1
Ignition	CDI
Transmission	5-speed; multiplate wet clutch
Final Drive	Chain
Suspension Rear	KYB® single shock; fully adjustable, 12.4-in travel
Brakes Front	Hydraulic disc, 270mm
Brakes Rear	Hydraulic disc, 240mm
Tires Front	80/100-21
Tires Rear	110/90-19
Length	85.8 in
Width	32.5 in
Wheelbase	58.5 in
Ground Clearance	14.2 in
Fuel Capacity	2.1 gal
Wet Weight	227 lb
Suspension Front	KYB® inverted fork; fully adjustable, 11.8-in travel
Fuel Delivery	Keihin PWK38S carburetor
