Yamaha YZ250 User Manual

5-41
CHAS

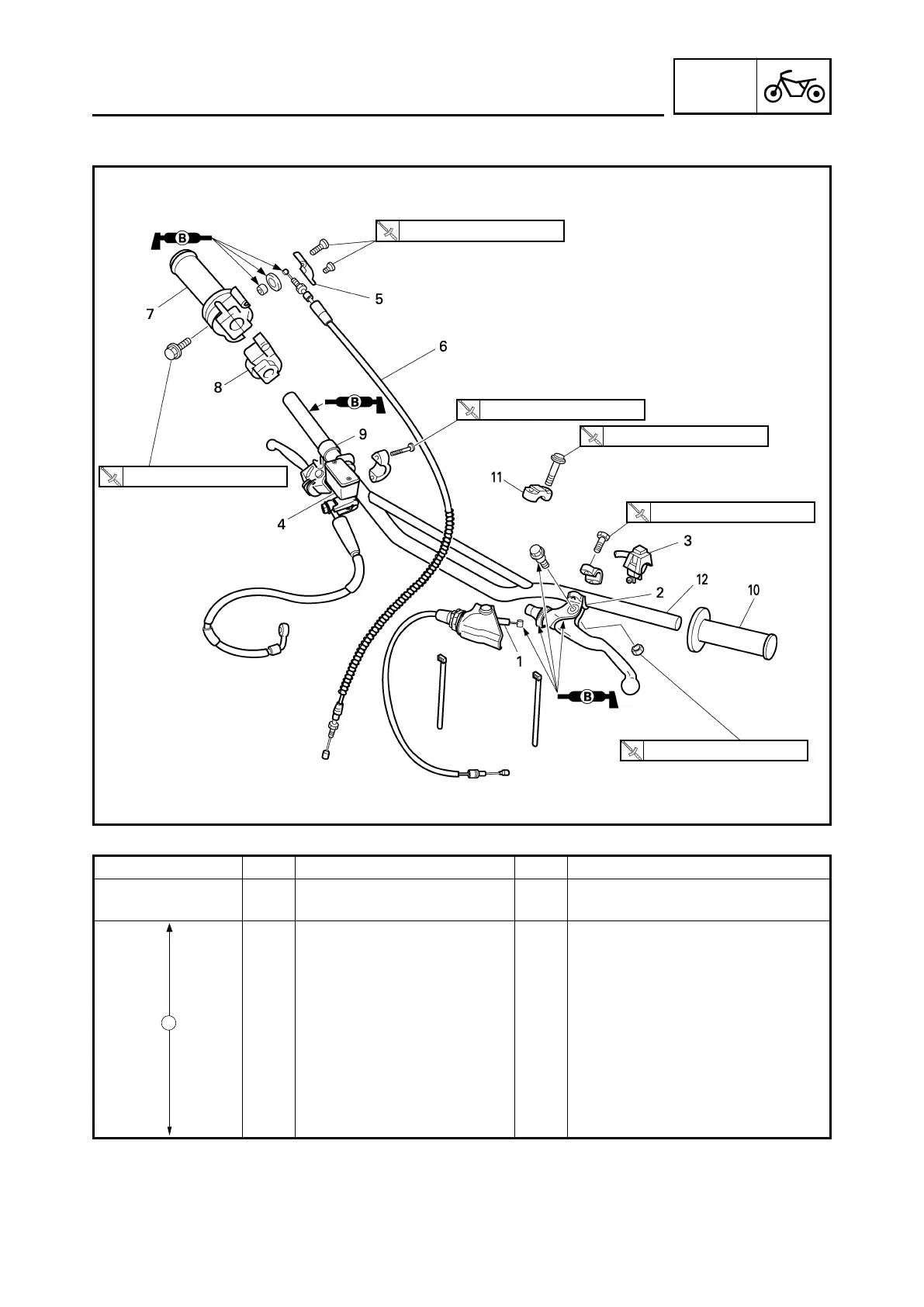

HANDLEBAR
Extent of removal Order Part name Q’ty Remarks
Preparation for HANDLEBAR REMOVAL
removal
Number plate Remove the clamp portion only.
1 Clutch cable 1 Disconnect at the lever side.
2 Clutch lever holder 1
3 “ENGINE STOP” button 1
4 Master cylinder 1 Refer to “REMOVAL POINTS”.
5 Throttle cable cap 1 Turn over the cap cover.
6 Throttle cable 1 Disconnect at the throttle side.
7 Throttle 1 Loosen the bolts.
8 Cap cover 1
9 Collar 1
10 Grip (left) 1 Refer to “REMOVAL POINTS”.
11 Handlebar holder (upper) 2
12 Handlebar 1
EC5B0000
HANDLEBAR
1
Extent of removal: 1 Handlebar removal
1 Nm (0.1 m•kg, 0.7 ft•lb)
4 Nm (0.4 m•kg, 2.9 ft•lb)
9 Nm (0.9 m•kg, 6.5 ft•lb)
28 Nm (2.8 m•kg, 20 ft•lb)
4 Nm (0.4 m•kg, 2.9 ft•lb)
4 Nm (0.4 m•kg, 2.9 ft•lb)
1P8-9-30-5C 11/5/04 11:09 AM Page 2

Yamaha YZ250 Specifications

General

Engine Type	249cc liquid-cooled 2-stroke; reed-valve inducted
Bore x Stroke	66.4mm x 72.0mm
Compression Ratio	8.9~10.6:1
Ignition	CDI
Transmission	5-speed; multiplate wet clutch
Final Drive	Chain
Suspension Rear	KYB® single shock; fully adjustable, 12.4-in travel
Brakes Front	Hydraulic disc, 270mm
Brakes Rear	Hydraulic disc, 240mm
Tires Front	80/100-21
Tires Rear	110/90-19
Length	85.8 in
Width	32.5 in
Wheelbase	58.5 in
Ground Clearance	14.2 in
Fuel Capacity	2.1 gal
Wet Weight	227 lb
Suspension Front	KYB® inverted fork; fully adjustable, 11.8-in travel
Fuel Delivery	Keihin PWK38S carburetor
