Yealink SIP-T40G Configuration Guide

BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK T4X IP PHONE 20-BD5476-00
©
2017 BROADSOFT INC. PAGE 26 OF 150
4.3.1.3 Hybrid Key System Configuration
Hybrid Key System emulation requires the phone to support assignment of multiple line
keys to a single registering line on the phone. It also requires the phone to limit each line
key to a single call appearance or provide the configurability to roll a new call over to the
next free line key. Any of the locations can be used to originate or receive calls.
First, from the Shared Call Appearance configuration web page, select Add to add a
second appearance.

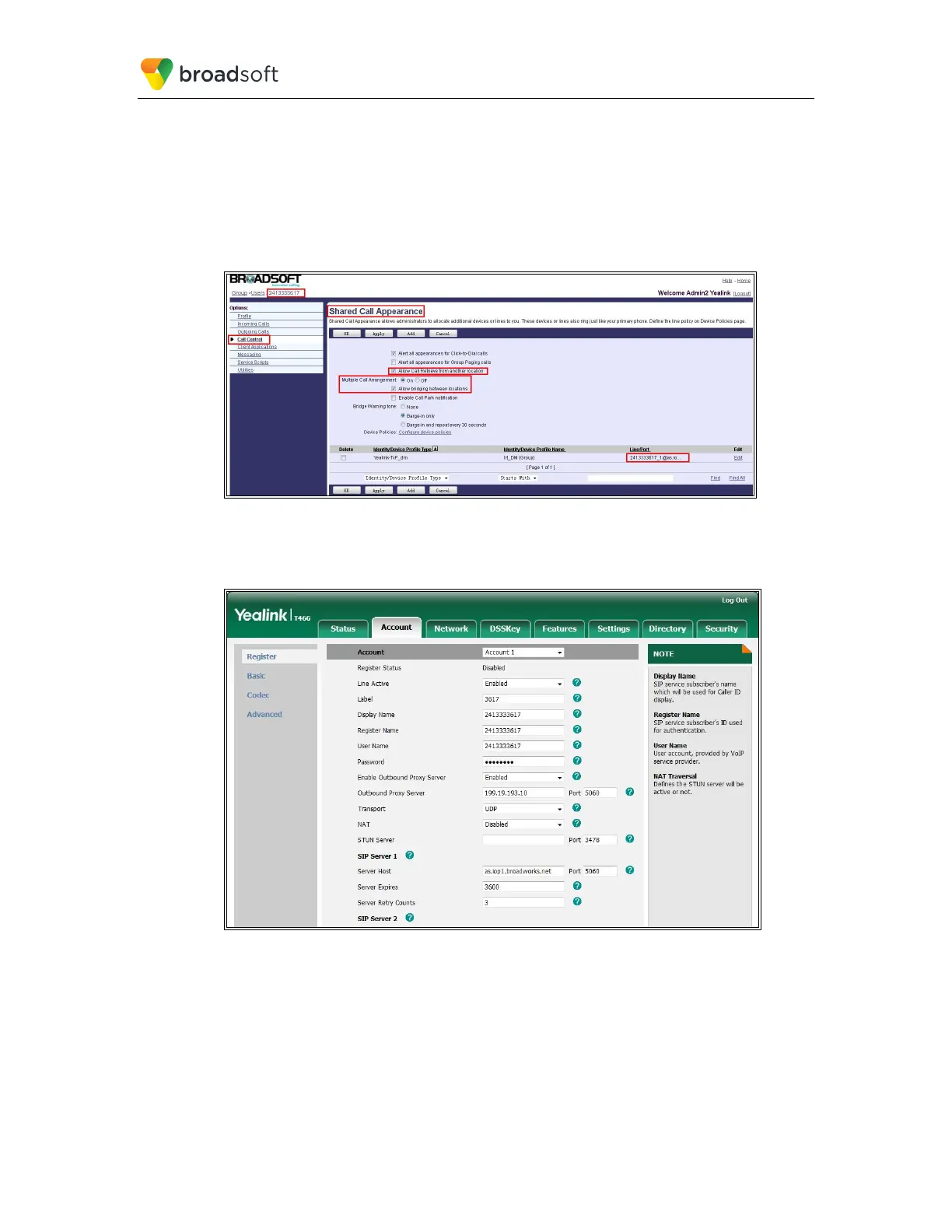

Figure 3 Shared Call Appearance Configuration Page
Second, on line registration web page, type in the host line and second appearance line
as shown in the following figures.
Figure 4 Account Register Page

Yealink SIP-T40G Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Wall mountable	Yes
Wi-Fi	No
Security algorithms	AES, HTTPS, SSL/TLS
Networking standards	IEEE 802.3af
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	FTP, TFTP, HTTP, HTTPS
Voice codecs	G.711, G.711a, G.711u, G.722, G.726, G.729ab
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	2
AC adapter input voltage	100 - 240 V
AC adapter output current	0.6 A
AC adapter output voltage	5 V
Power consumption (typical)	1.6 W
Certification	CE, FCC, ISO 9001
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Volume control	Digital
Display diagonal	2.3 \
Display resolution	132 x 64 pixels
Lines quantity	3 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	3
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	175 mm
Width	212 mm
Height	54 mm
