BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK T4X IP PHONE 20-BD5476-00
©
2017 BROADSOFT INC. PAGE 64 OF 150

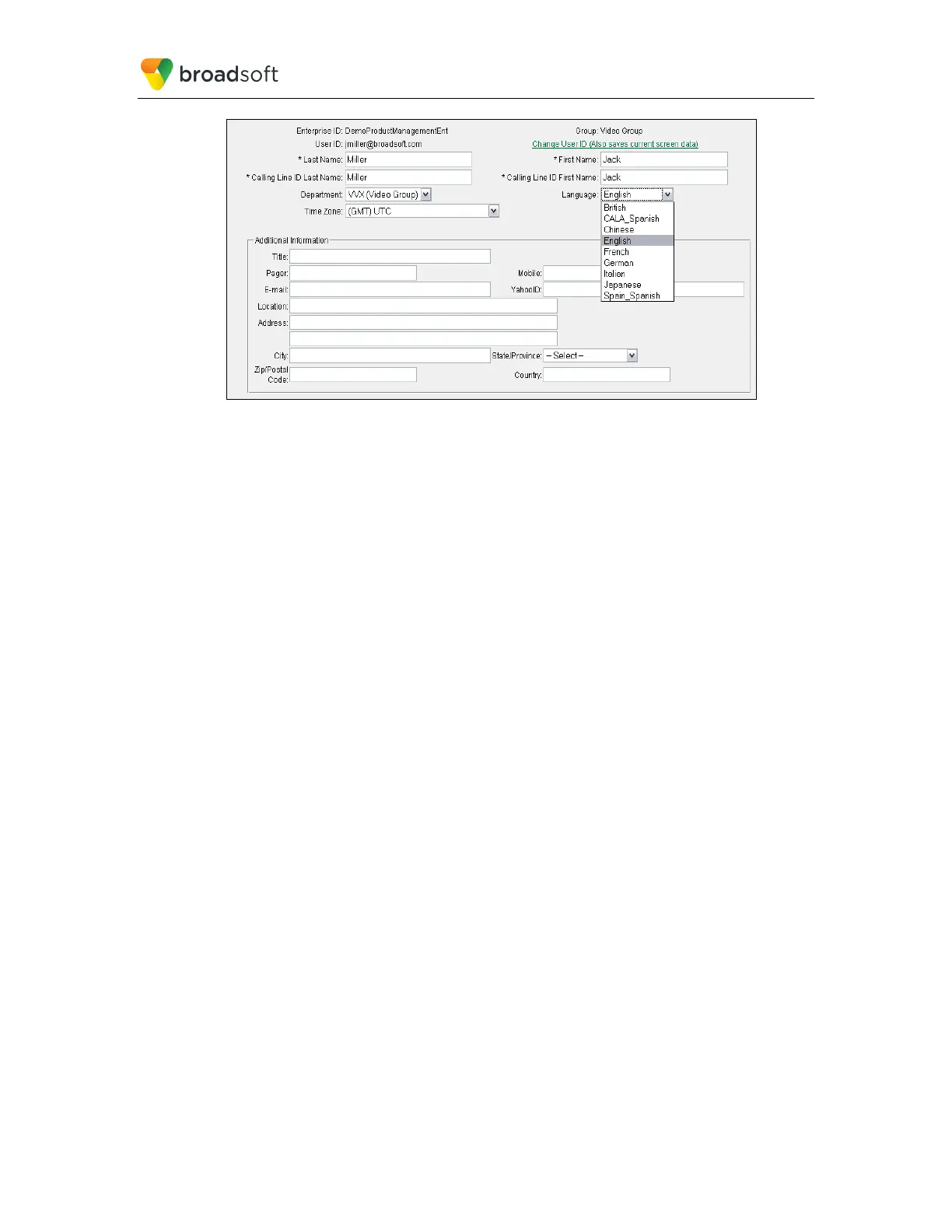

Figure 35 BroadWorks User Language Definition
5.2.3 Create Device Profile Instance
The previous sections defined the device profile type such that the system is ready to
mass deploy device profiles. A device profile is an instance of the device profile type and
defines the BroadWorks interface to an individual Yealink T4x device.
Browse to the BroadWorks <group> → Resources → Identity/Device Profiles page and
then select Add to add a new Yealink T4x device profile. Configure the device profile as
shown in the Figure 36 Device Profile Instance example.
The Use Custom Credentials option must be selected. Set the Device Access User Name
and Password to the username and password the device uses for file download.

Yealink SIP-T40G Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Wall mountable	Yes
Wi-Fi	No
Security algorithms	AES, HTTPS, SSL/TLS
Networking standards	IEEE 802.3af
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	FTP, TFTP, HTTP, HTTPS
Voice codecs	G.711, G.711a, G.711u, G.722, G.726, G.729ab
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	2
AC adapter input voltage	100 - 240 V
AC adapter output current	0.6 A
AC adapter output voltage	5 V
Power consumption (typical)	1.6 W
Certification	CE, FCC, ISO 9001
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Volume control	Digital
Display diagonal	2.3 \
Display resolution	132 x 64 pixels
Lines quantity	3 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	3
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	175 mm
Width	212 mm
Height	54 mm
