BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK T4X IP PHONE 20-BD5476-00
©
2017 BROADSOFT INC. PAGE 70 OF 150
5.2.5.2.2 Configuration Method 2: Manual
This section identifies the manual steps necessary configure BroadWorks to add the
Device Management Defaults device type for No Touch Provisioning
The manual method must be used for BroadWorks releases prior to Release 17.0. It is an
optional method in Release 17.0 and later. The steps in this section can also be followed
to update previously imported or configured device profile type(s) with new configuration
files and firmware.
5.2.5.2.2.1 Create Default Device Profile Type
A Device Management default device profile type must be created. This device profile
type can be configured to serve default provisioning files to Yealink T4x endpoints, as well
as other vendor devices.
Create a default device profile type as shown in the following figure. Only the device
management settings are important in this context since the profile type is used only to
serve default provisioning files. The standard and advanced settings do not matter.
5.2.5.2.2.1.1 Configure Standard Options
The device profile type name and standard options do not matter, but an example is
provided for reference. All settings can be left with their default values.

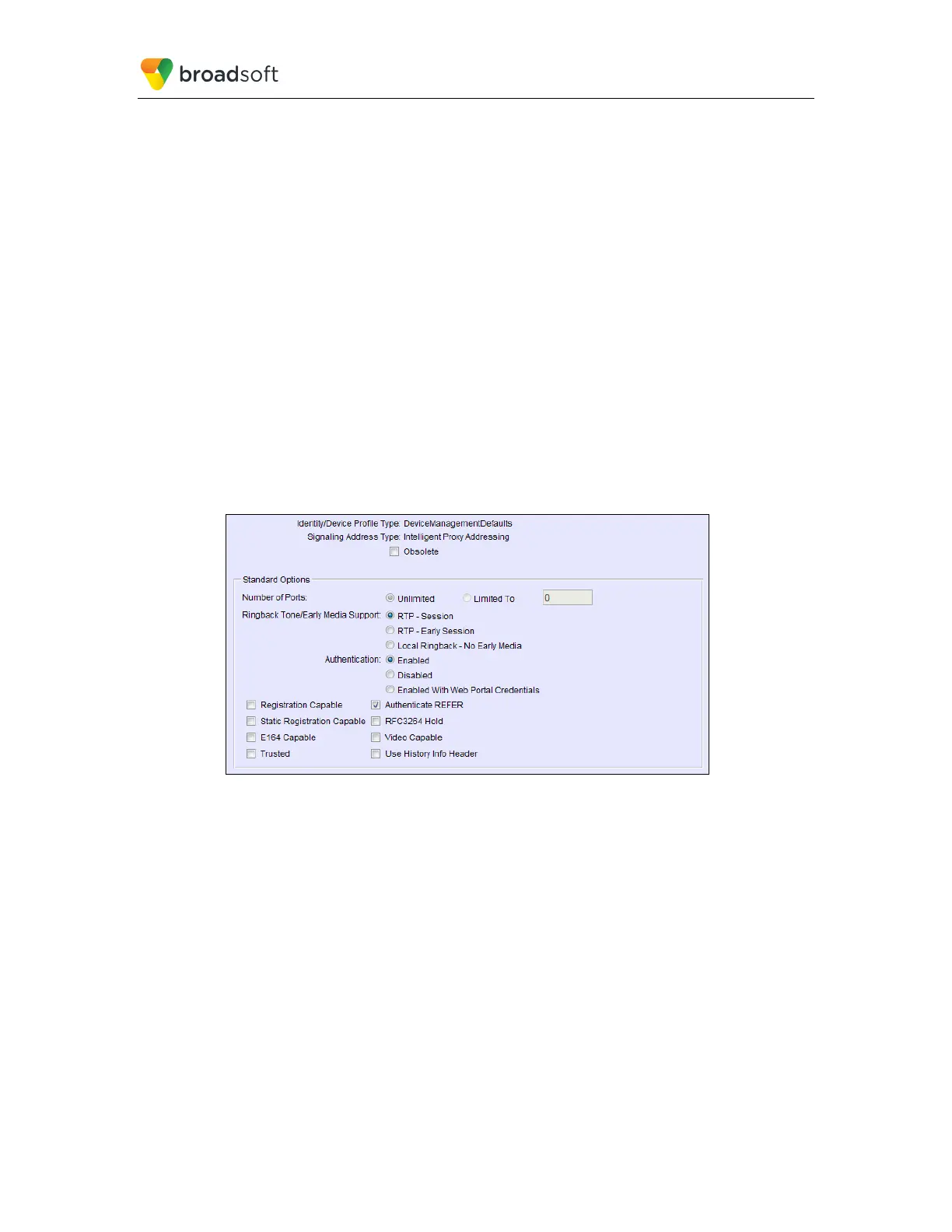

Figure 40 Default Device Profile Type
5.2.5.2.2.1.2 Configure Advanced Options
The advanced options do not matter, but an example is provided for reference. All
settings can be left with their default values.

Yealink SIP-T40G Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Wall mountable	Yes
Wi-Fi	No
Security algorithms	AES, HTTPS, SSL/TLS
Networking standards	IEEE 802.3af
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	FTP, TFTP, HTTP, HTTPS
Voice codecs	G.711, G.711a, G.711u, G.722, G.726, G.729ab
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	2
AC adapter input voltage	100 - 240 V
AC adapter output current	0.6 A
AC adapter output voltage	5 V
Power consumption (typical)	1.6 W
Certification	CE, FCC, ISO 9001
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Volume control	Digital
Display diagonal	2.3 \
Display resolution	132 x 64 pixels
Lines quantity	3 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	3
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	175 mm
Width	212 mm
Height	54 mm
