Yealink SIP-T40G Configuration Guide

BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK T4X IP PHONE 20-BD5476-00
©
2017 BROADSOFT INC. PAGE 54 OF 150

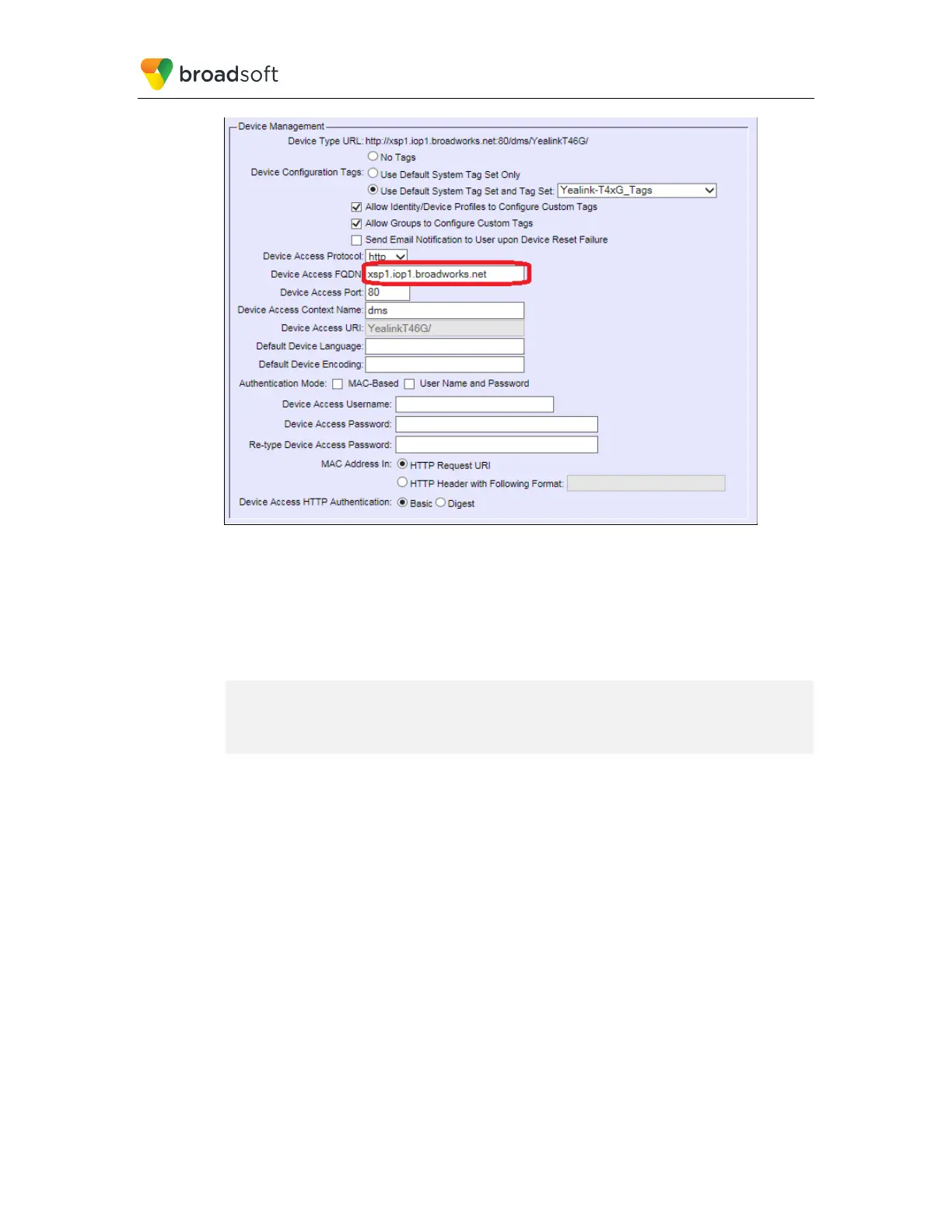

Figure 30 Device Access FQDN
7)
Click the Files and Authentication link and then select the option to rebuild all the
system files.
Firmware files must be obtained from Yealink. These files are not included in the
import. Complete the steps in section 5.2 .2.2.2 Define Device Profile Type Files to
define the static firmware files and to upload the firmware.
NOTE: The non-firmware static files in section 5.2.2.2.2 Define Device Profile Type Files are
normally included in the import.
8) After importing the DTAFs, restart the Application Server to load the TimeZoneAlias
files.
9) Update the device profile type language setting according to instructions provided in
section 5.2.2.2.4 Language Mapping.
5.2.2.2 Configuration Method 2: Manual
This section identifies the basic steps necessary for an administrator to manually configure
BroadWorks to add the Yealink T4x IP Phone as a Device Management-enabled device
type. This method should not be used except in special cases as described in the opening
to section 5.2.2 Configure BroadWorks Device Profile Type.
For more detailed instructions on the manual configuration, see the BroadWorks CPE Kit
Usage Guide [8] and the BroadWorks Device Management Configuration Guide [2].
The steps in this section can also be followed to update previously imported or configured
device profile type(s) with new configuration files and firmware.
If there are DTAFs for more than one device model, these steps must be completed for
each model.

Yealink SIP-T40G Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Wall mountable	Yes
Wi-Fi	No
Security algorithms	AES, HTTPS, SSL/TLS
Networking standards	IEEE 802.3af
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	FTP, TFTP, HTTP, HTTPS
Voice codecs	G.711, G.711a, G.711u, G.722, G.726, G.729ab
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	2
AC adapter input voltage	100 - 240 V
AC adapter output current	0.6 A
AC adapter output voltage	5 V
Power consumption (typical)	1.6 W
Certification	CE, FCC, ISO 9001
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Volume control	Digital
Display diagonal	2.3 \
Display resolution	132 x 64 pixels
Lines quantity	3 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	3
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	175 mm
Width	212 mm
Height	54 mm
