Yealink SIP-T53W Auto Provisioning Guide

Yealink IP Phones Auto Provisioning Guide
34
DHCP Options
Yealink IP phones can obtain the provisioning server address by detecting DHCP options during
startup.
If you are using IPv4 network, the phone will automatically detect the option 66 and option 43
for obtaining the provisioning server address. DHCP option 66 is used to identify the TFTP server.
DHCP option 43 is a vendor-specific option, which is used to transfer the vendor-specific
information.
If you are using IPv6 network, the phone will automatically detect the option 59 for obtaining
the provisioning server address. DHCP option 59 is used to specify a URL for the boot file to be
downloaded by the client.
You can configure the phone to obtain the provisioning server address via a custom DHCP
option. You can select to use IPv4 or IPv6 custom DHCP option according to your network
environment. To obtain the provisioning server address via an IPv4 or IPv6 custom DHCP option,
make sure the DHCP option is properly configured on the phone. The IPv4 or IPv6 custom DHCP
option must be in accordance with the one defined in the DHCP server.

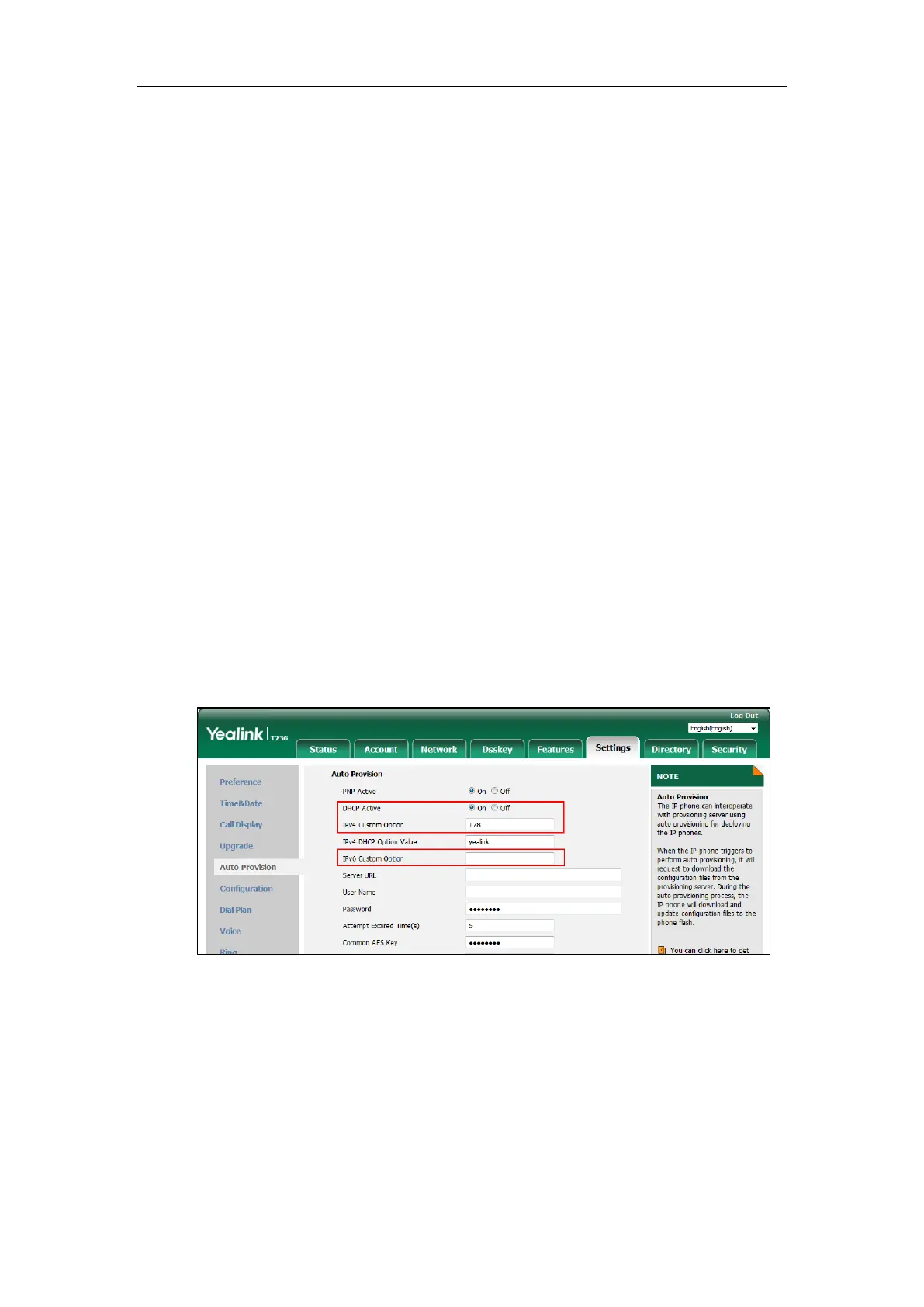

To configure the DHCP option via web user interface:
1. Click on Settings->Auto Provision.
2. Mark the On radio box in the DHCP Active field.
3. If you are using IPv4 network, enter the desired value in the IPv4 Custom Option field.
4. If you are using IPv6 network, enter the desired value in the IPv6 Custom Option field.
5. Click Confirm to accept the change.
During startup, the phone will broadcast DHCP request with DHCP options for obtaining the
provisioning server address. The provisioning server address will be found in the received DHCP
response message.
After the IP phone obtains the provisioning server address from the DHCP server, it will connect
to the provisioning server and perform auto provisioning during startup.
For more information on the DHCP options, refer to the latest Administrator Guide for your
phone on Yealink Technical Support.

Yealink SIP-T53W Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP mobile phone
Product color	Gray
Keypad illumination	Yes
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.2
Security algorithms	AES, HTTPS, SIPS
Networking standards	IEEE 802.1p, IEEE 802.1x, IEEE 802.3af
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	FTP/TFTP/HTTP/HTTPS
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Lines quantity	8 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	12
AC adapter input voltage	100 - 240 V
AC adapter output current	1.2 A
AC adapter output voltage	5 V
Power consumption (typical)	2.3 W
Volume control	Buttons
Number of programmable keys	8
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Display diagonal	3.7 \
Display resolution	360 x 160 pixels
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Number of DECT wireless handsets	4
Voice codecs	G.722, G.723.1, G.726, G.729A, G.729B, OPUS, iLBC

Weight and Dimensions

Depth	210.6 mm
Width	212 mm
Height	174.5 mm
