Yealink SIP-T53W Auto Provisioning Guide

Triggering the IP Phone to Perform Auto Provisioning
45
in CFG Files or Administrator Guide for your phone on Yealink Technical Support. This method
requires server support.

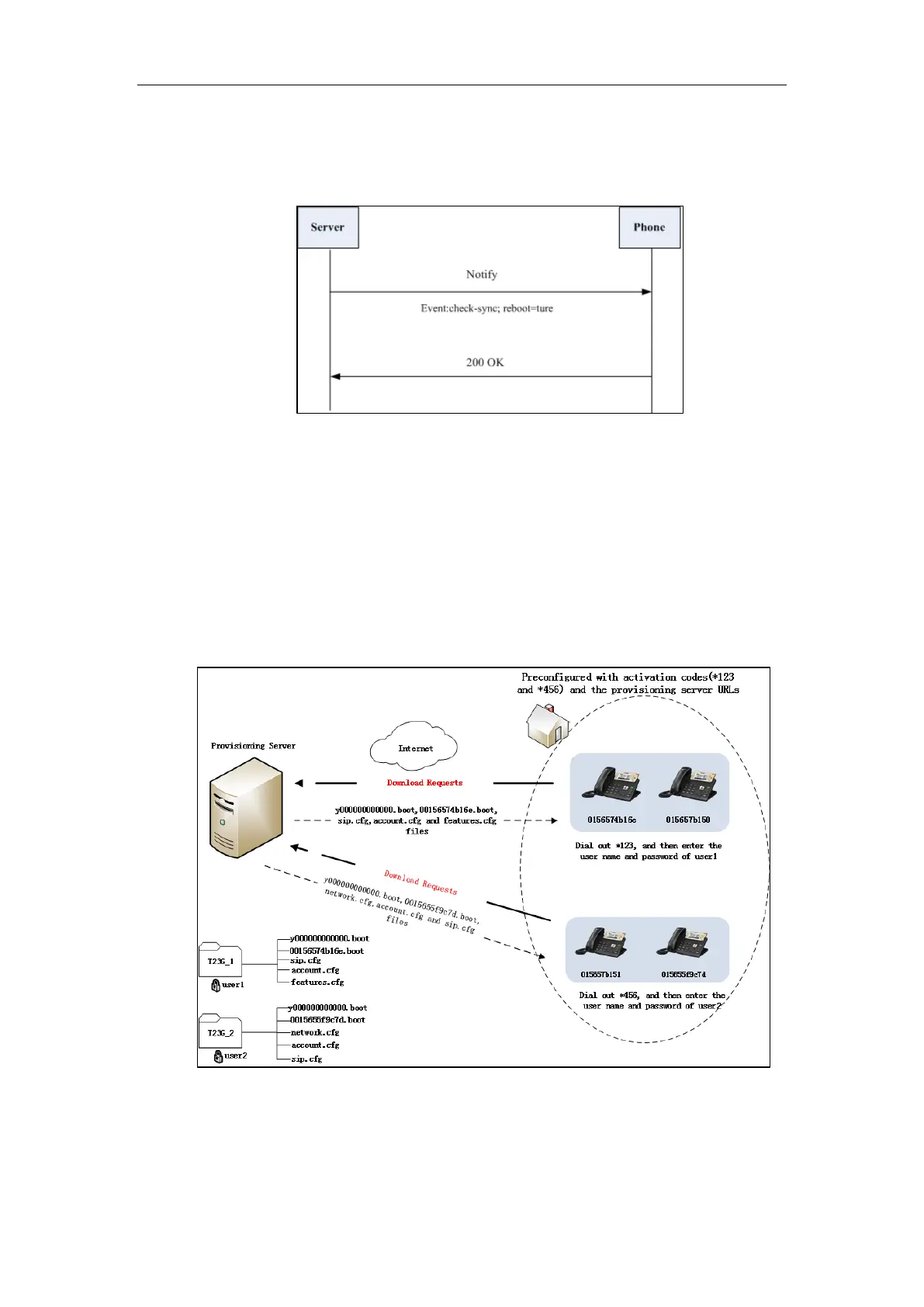

The following figure shows the message flow:
Auto Provisioning via Activation Code
In addition to the updating modes introduced above, users can trigger IP phones to perform
auto provisioning by dialing an activation code. To use this method, the activation code and the
provisioning server URL need to be pre-configured on the IP phones. This method works only if
there is no registered account on the IP phone. It is usually used for IP phones distributed by
retail sales. It has the advantage that the IP phones do not need to be handled (e.g., registering
account) before sending them to end-users.

Yealink SIP-T53W Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP mobile phone
Product color	Gray
Keypad illumination	Yes
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.2
Security algorithms	AES, HTTPS, SIPS
Networking standards	IEEE 802.1p, IEEE 802.1x, IEEE 802.3af
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	FTP/TFTP/HTTP/HTTPS
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Lines quantity	8 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	12
AC adapter input voltage	100 - 240 V
AC adapter output current	1.2 A
AC adapter output voltage	5 V
Power consumption (typical)	2.3 W
Volume control	Buttons
Number of programmable keys	8
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Display diagonal	3.7 \
Display resolution	360 x 160 pixels
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Number of DECT wireless handsets	4
Voice codecs	G.722, G.723.1, G.726, G.729A, G.729B, OPUS, iLBC

Weight and Dimensions

Depth	210.6 mm
Width	212 mm
Height	174.5 mm
