YOKOGAWA wt3000 User Manual

2-34 IM 760301-01E

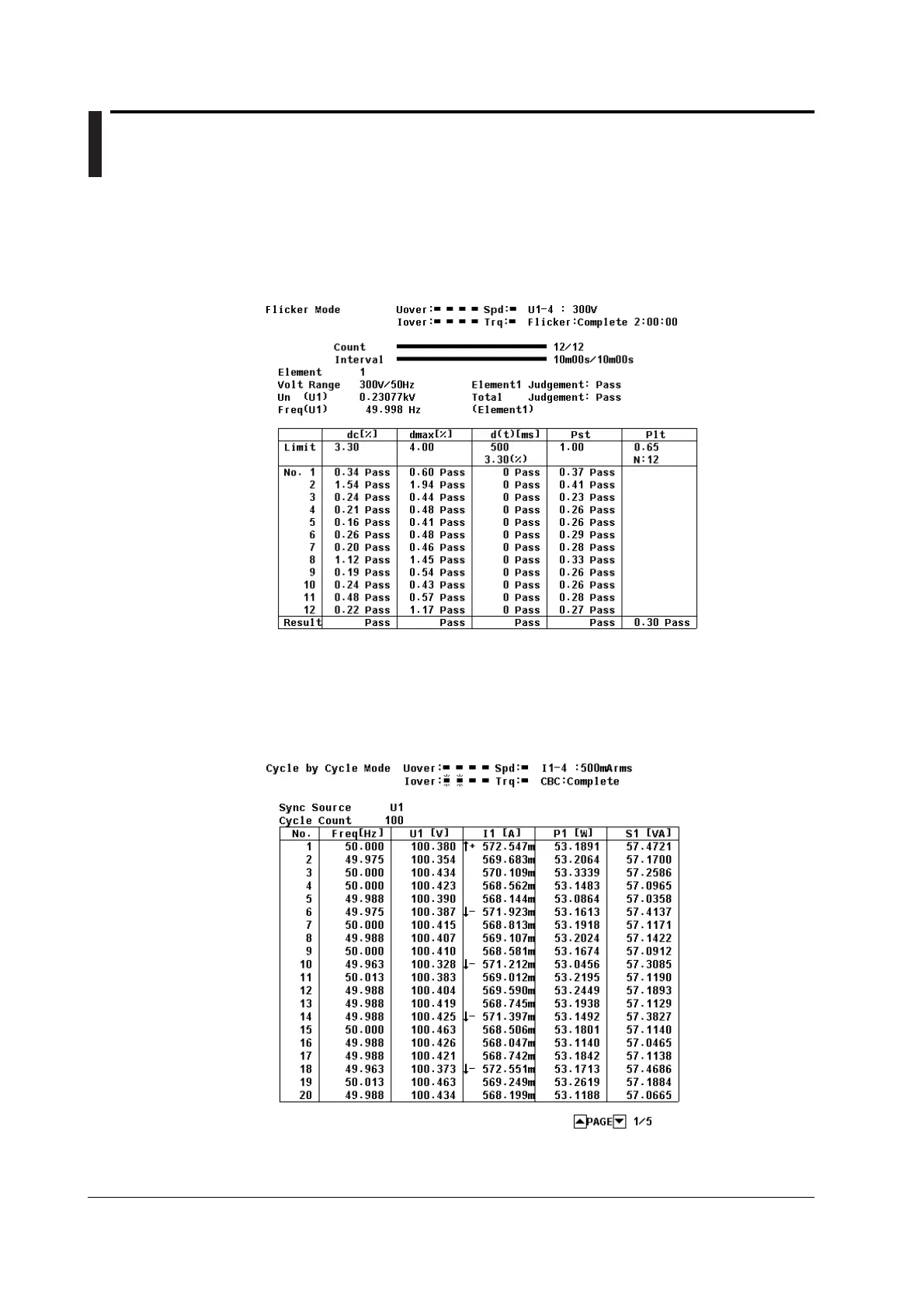

2.10 Voltage Fluctuation and Flicker and Cycle-by-
Cycle Measurements
Voltage Fluctuation and Flicker Measurement Expansion Function User’s Manual
IM760301-51E
.»
Voltage fluctuation and flicker measurements conforming to IEC61000-3-3 can be
performed on models with the voltage fluctuation and flicker measurement (/FL) option.
Cycle-by-Cycle Measurement «See the Expansion Function User’s Manual IM760301-
51E
.»
The voltage, current, power, and other parameters for each cycle of the AC input signal
can be measured on models with the cycle-by-cycle measurement (/CC) option.

YOKOGAWA wt3000 Specifications

General

Frequency Range	DC, 0.1 Hz to 1 MHz
Number of Input Elements	Up to 4 elements
Harmonic Measurement	Up to 500th order
Interfaces	USB, Ethernet, RS-232
Sampling Rate	2 MS/s
Voltage Range	1.5 V to 1000 V
Display	8.4-inch LCD
