York Fitness T500 User Manual

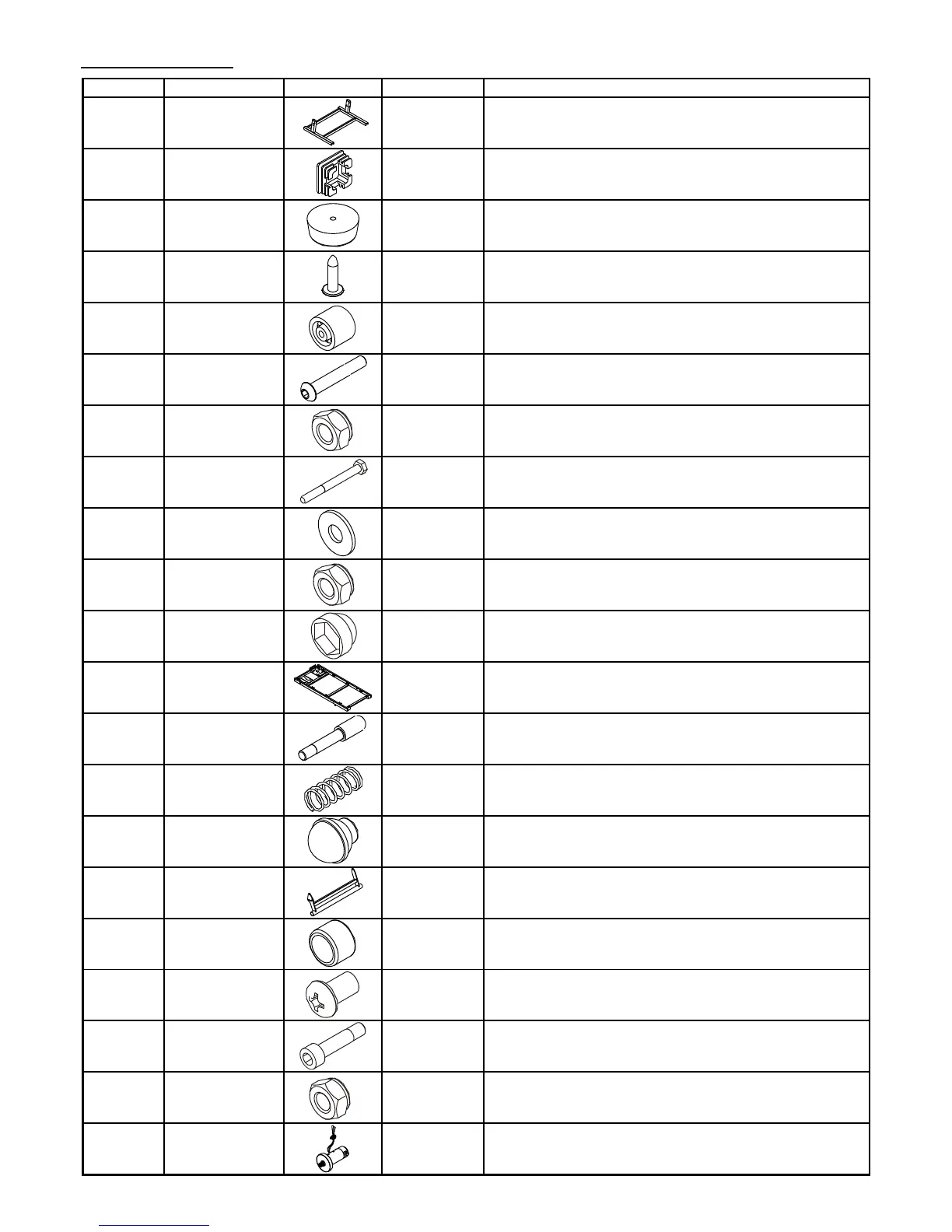

PARTS LIST
YORK T500 TM / 08
KEY NO. PART NO. PART FIG. Q'TY(PCS) DESCRIPTION
1 8615-01 1 BASE FRAME
2 8615-02 2 38mm SQ END CAP
3 8615-03 4 BASE FRAME FOOT STOP
4 8615-04 4 M4 X 16mm SELF TAPPING SCREW
5 8615-05 2 MOVING WHEEL
6 8615-06 2 M8 X 45mm ALLEN HEAD BOLT
7 8615-07 2 M8 NYLON LOCKNUT
8 8615-08 2 M10 X 100mm HEX HEAD BOLT
9 8615-09 2 10.3mm X 25mm X 2mm FLAT WASHER
10 8615-10 2 M10 NYLON LOCKNUT
11 8615-11 2 BOLT HEAD PLASTIC CAP
12 8615-12 1 MAIN FRAME
13 8615-13 1 LOCK PIN
14 8615-14 1 LOCK PIN SPRING
15 8615-15 1 PLASTIC BALL END
16 8615-16 1 REAR ADJUSTABLE STABILIZER
17 8615-17 2 REAR STABILIZER END CAP
18 8615-18 1 M6 X 6mm MACHINE SCREW
19 8615-19 2 M8 X 35mm HEXGAN HEAD BOLT
20 8615-20 2 M8 NYLON LOCKNUT
21 8615-21 1 DC MOTOR ASSEMBLY
