SHOULD YOU REQUIRE ANY ASSISTANCE REGARDING THIS PRODUCT PLEASE CONTACT YORK DIRECTLY.
*
*
1.
ASSEMBLY INSTRUCTIONS

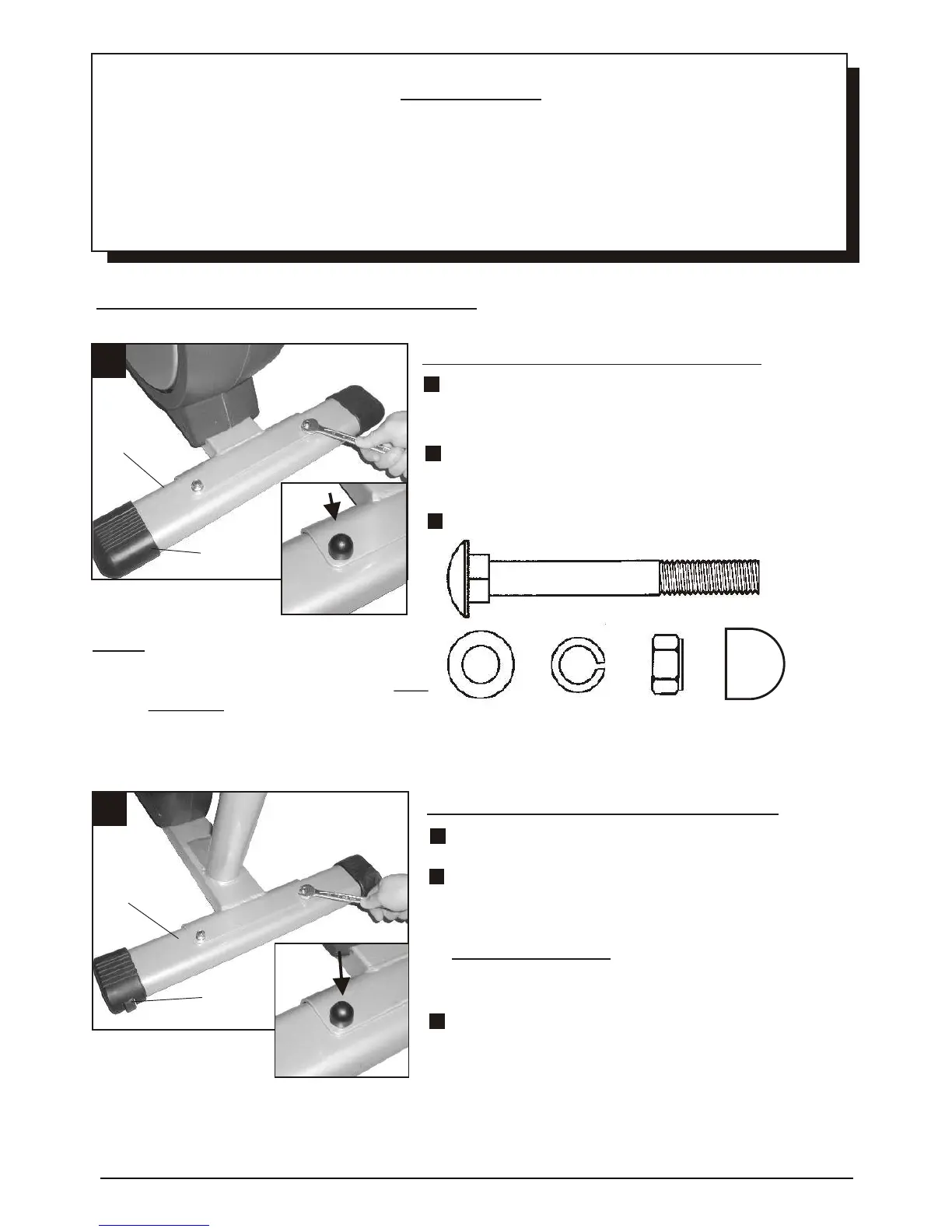

ATTACH THE REAR STABILIZER
The front stabilizer has moving wheels near each end.
Fix the front stabilizer to the main frame and
secure, using two carriage bolts, washers,
spring washers and nylon locknuts.
X4
A
A
NOTE: MAKE SURE you fasten the nuts and bolts
securely for your safety and comfort when
pedalling.
NOTE: MAKE SURE
GENERAL
WE RECOMMEND YOU HAVE SOMEONE ASSIST YOU IN LIFTING AND ASSEMBLING
YOUR YORK X510 CROSSTRAINER.
REMOVE ALL THE PARTS OF YOUR
FROM THE CARTON AND PLACE THEM ON THE FLOOR CAREFULLY.
FOLLOW THESE INSTRUCTIONS CAREFULLY AND IT WILL MAKE IT EASIER FOR
YOU TO ASSEMBLE YOUR
YORK X510 CROSSTRAINER.
YORK X510 CROSSTRAINER.
ATTACH THE FRONT STABILIZER
REAR
STABILIZER
END CAP
2.
#5555-09
#5555-10
#5555-11
#5555-12
FRONT
STABILIZER
MOVING
WHEEL
Fix the rear stabilizer to the main frame and
secure, using two carriage bolts, spring washers,
washers and nylon locknuts.
Fix the plastic caps onto the locknuts once secured.
X4
#5555-29
NOTE: This equipment has been supplied
with some Nylon
Locknuts.
It is essential that the nuts are fully
tightened onto the bolts, so that
the bolt penetrates through the
nylon insert.
Fix the plastic caps onto the locknuts once secured.
YORK X510 / 02
The rear stabilizer has end caps with an adjustable
knob fitted under neath that can vary in height to
enable you to level the trainer on uneven floors.
