YORK X510 / 05
X4

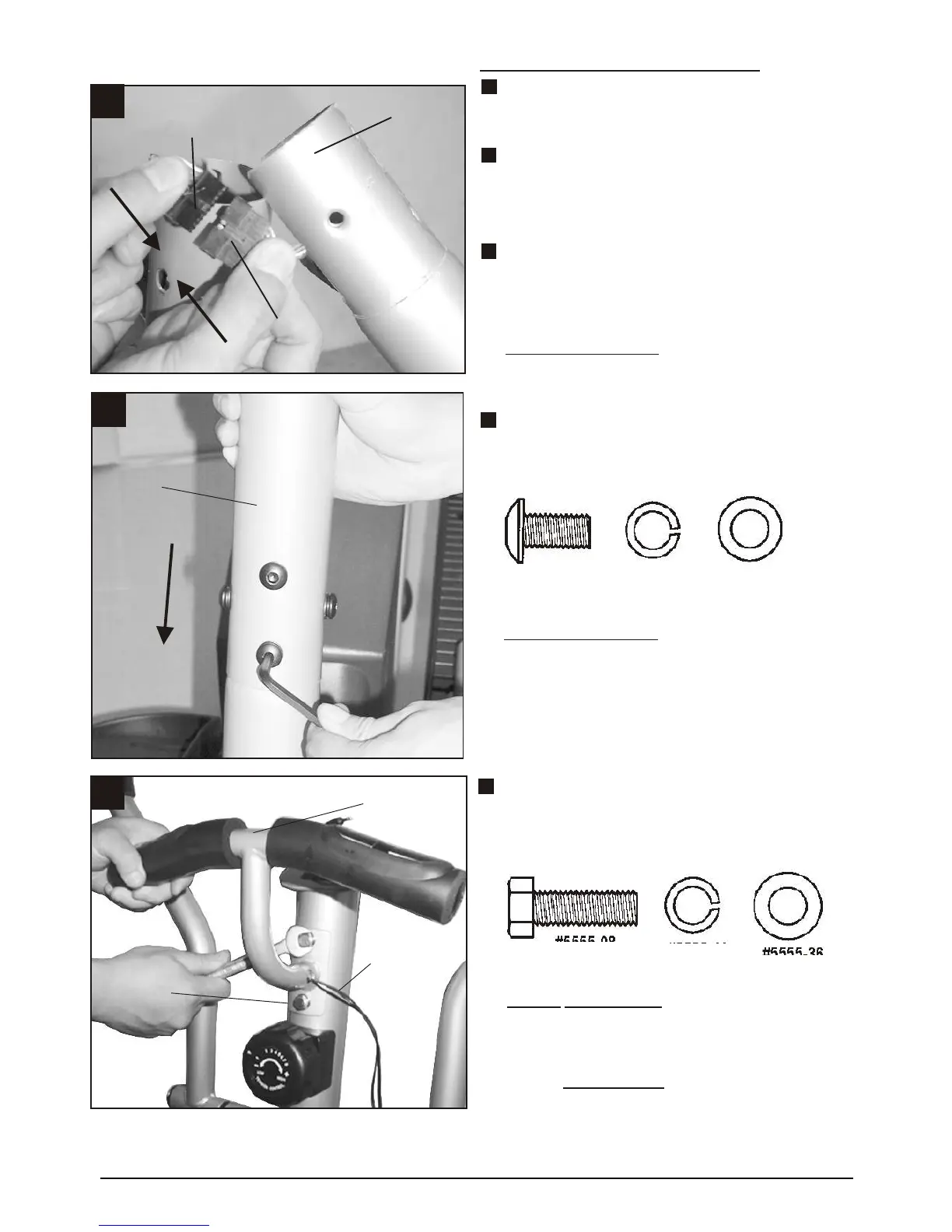

ATTACH THE FRONT POST
Rest the front post on the front post
mounting tube carefully as shown.
Connect the sensor wire plug on the main
frame to the middle wire socket protruding
at the end of the front post.
Check the middle wire runs up the front
post and out of the top - later this will
to the computer. connect
NOTE: TAKE CARE to ensure the wire is
connected as tightly as possible.
Insert the front post to the front post
mounting tube and secure, using four allen
head bolts, spring washers and washers.
NOTE: TAKE CARE to ensure the cable does
not get trapped when you attach the
front post.
#5555-23
#5555-11
#5555-10
A
SENSOR
WIRE
MIDDLE
WIRE
FRONT
POST
B
FRONT
POST
C
CENTRAL
BAR
FIXING
BRACKET
HAND
PULSE
SENSOR
CABLES
Fix the central bar to the front post via the
fixing bracket using two hex head bolts,
spring washers and curve washers.
NOTE: TAKE CARE to ensure that the hand
pulse sensor cables do not get trapped
when you attach the centre bar.
NOTE: TAKE CARE
MAKE SURE you fasten the bolts
securely for your safety and comfort
when pedalling.
MAKE SURE
X2
#5555-08
#5555-11
#5555-36
To Next Page
