SHOULD YOU REQUIRE ANY ASSISTANCE REGARDING THIS PRODUCT PLEASE CONTACT YORK DIRECTLY.
*
*
B
A
C
6.
COMPUTER
BRACKET
HAND
PULSE
SENSOR
WIRE
RECHECK THAT ALL THE BOLTS AND NUTS ARE TIGHTENED
SECURELY FOR YOUR SAFETY & COMFORT.
7.
Plug the AC adaptor lead into the socket at the rear end
of your YORK X510 CROSSTRAINER as shown.
Plug the 6V 500mA A.C. Adaptor into a suitable
mains supply.
AC ADAPTOR
LEAD
YORK X510 / 07

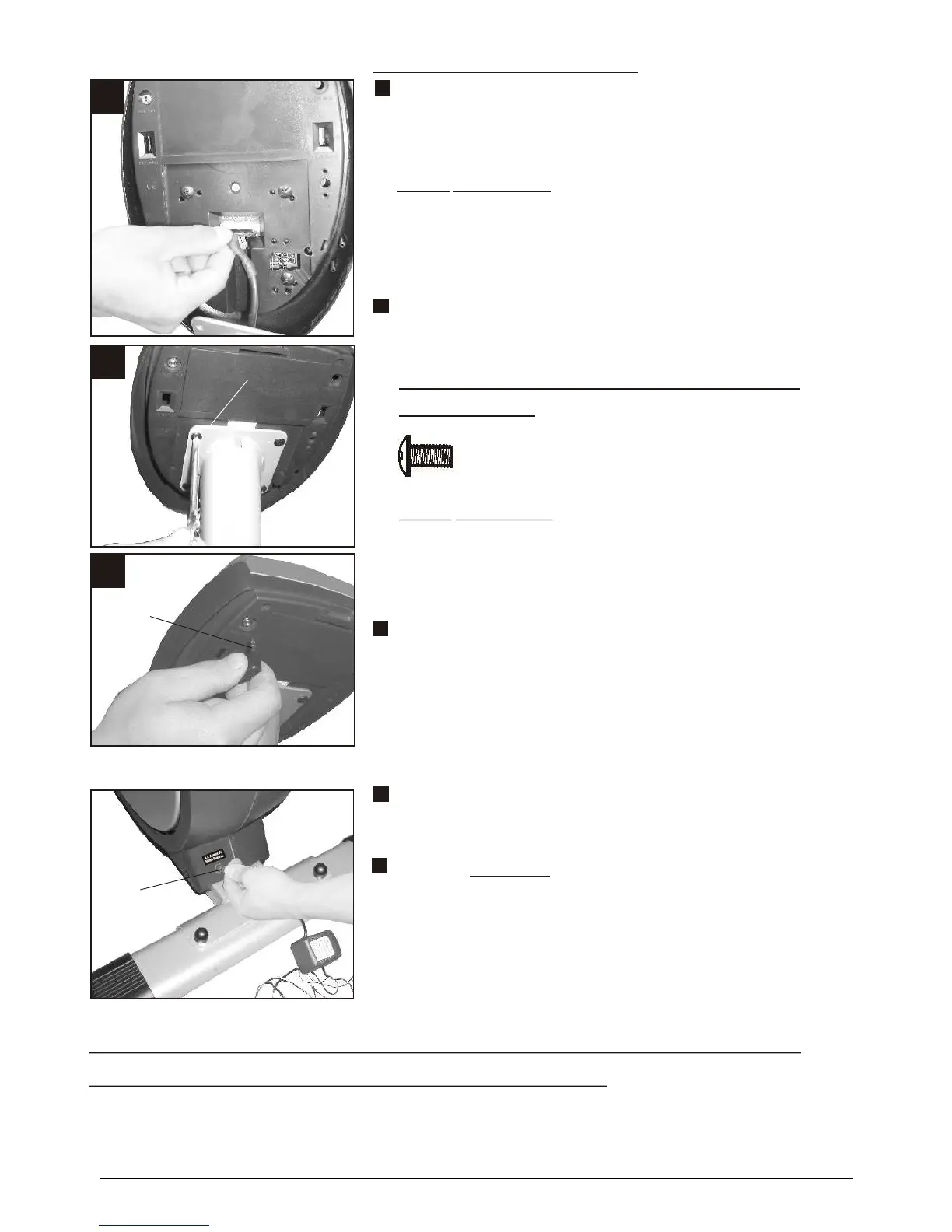

ATTACH THE COMPUTER
Connect the middle wire that comes out of the top of
the front post to the computer plug on the back of
computer console.
NOTE: TAKE CARE to ensure you plug the middle
wire to the socket securely.
NOTE: TAKE CARE
Slide the middle wire into the front post
and attach the computer to the computer
bracket by using four machine screws.
The machine screws are located in the back
of the console.
NOTE: TAKE CARE to ensure the cable
does not get trapped when you attach
the computer.
The machine screws are located in the back
of the console.
X4
#5555-48
Plug the hand pulse sensor wire into the socket
in the back of the computer.
To Next Page
