York CURBPAK CP23 User Manual

FORM 100.10-NOM2
53
YORK INTERNATIONAL
TABLE 13 – FILTER SIZES AND QUANTITIES – ANGLE FILTERS
FILTER SIZES AND QUANTITIES PER UNIT SIZE
NOTES: 1. See the filter configurations below for specific filter arrangements.
2. Filters are side-loaded.
3. The number in ( ) defines how many rows high with that particular filter pattern.
UNIT SIZE
65 85 105 125 170 215 250 305 350 400 460 530 680 860 1030
Area (sq.ft.) 12 16 20 24 32 40 48 56 72 84 96 112 144 180 216
Filter
12 x 24 2–24–4–4–6–88 – –
Size
24 X 24 244488121218182424324554
LD06265

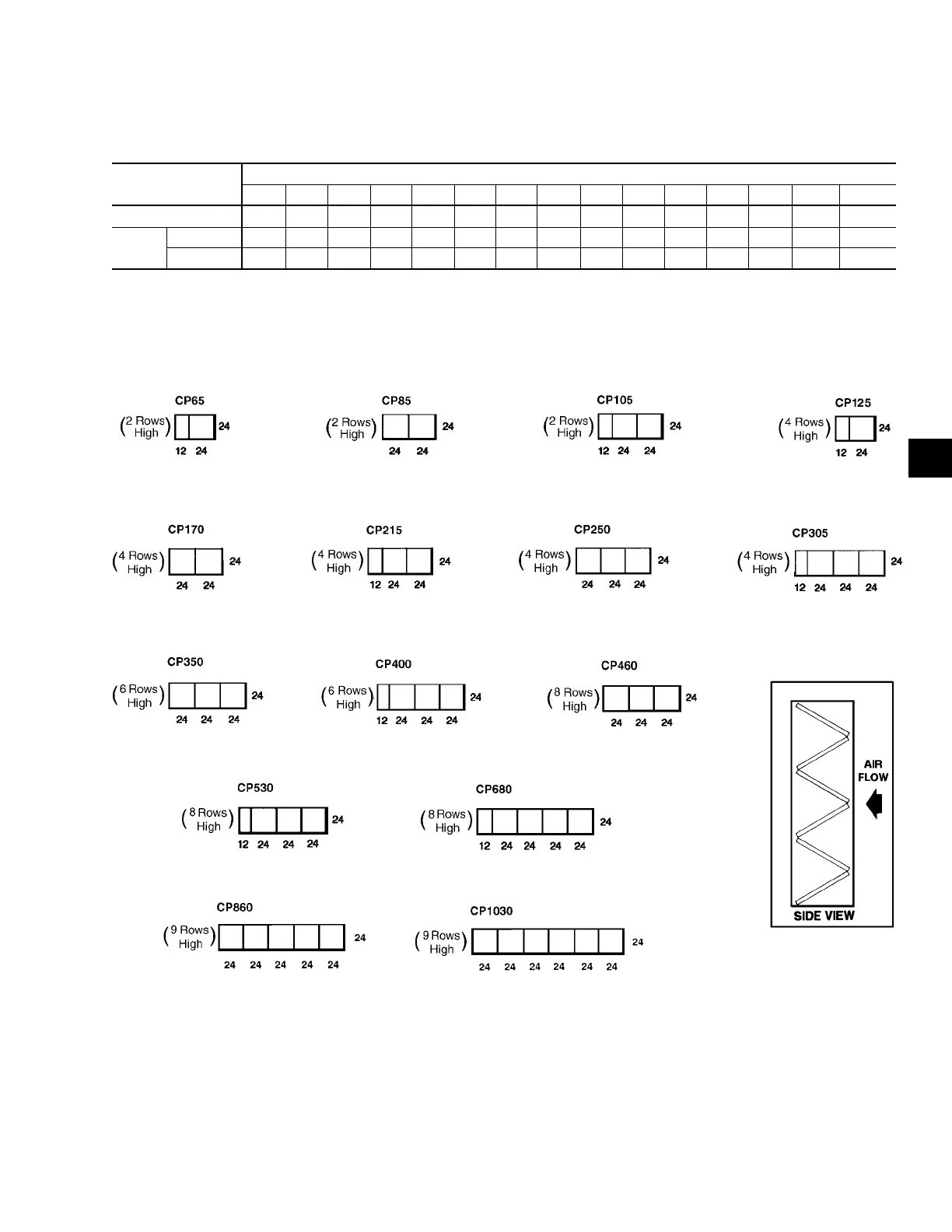

FIG. 55 – FILTERS FOR AF SEGMENT
