036-21345-001-B-0105
Unitary Products Group 17
UNIT DIMENSIONS
PIPING AND ELECTRICAL CONNECTIONS.
Piping connections can be made from either the left or the
right of the unit. The high voltage connections are made from
the left hand side of the unit. Low voltage is made from the
top of the electrical box from either the left or right side. See
the drawings on the following pages for details.

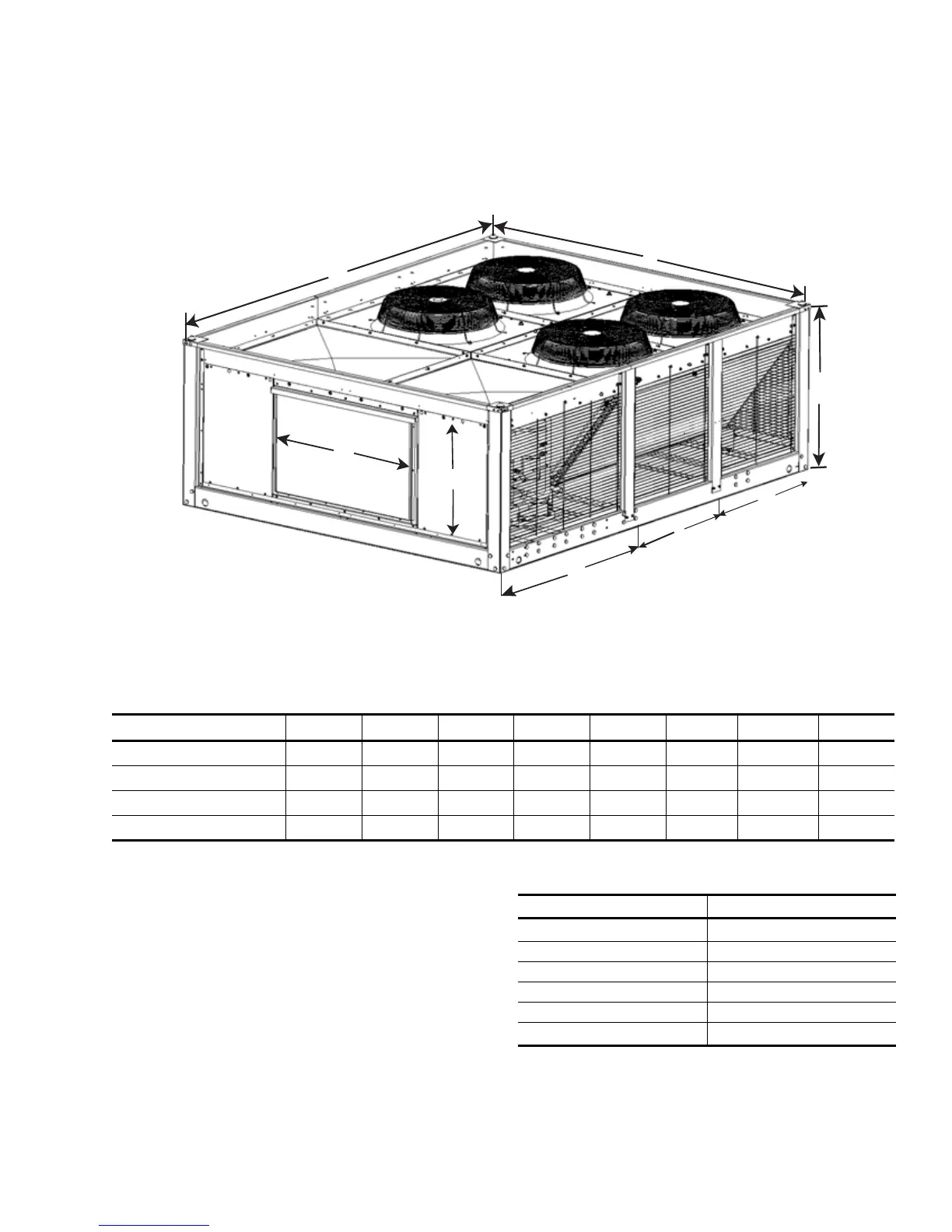

FIGURE 5 - HA/HB UNIT DIMENSIONS
A
B
G
H
C
F
E
D
REAR
RIGHT
FRONT
LEFT
TABLE 15: UNIT DIMENSIONS
MODEL ABCDEFGH
HA300 110.5 88.5 37.5 32.8 31.0 46.1 37.1 23.6
HB360 110.5 88.5 37.5 32.8 31.0 46.1 37.1 23.6
HB480 128.5 88.5 37.5 41.8 40.0 46.1 37.1 23.6
HB600 128.5 88.5 57.7 41.8 40.0 46.1 37.1 23.6
TABLE 16: UNIT CLEARANCES
Location Dimensions
Overhead (Top)
1
1
Units must be installed outdoors. Overhanging structures or
shrubs should not obstruct condenser air discharge.
120”
Front access panels 36”
Left Side 30”
Right Side 30”
Rear 24”
Bottom
2
2
Adequate snow clearance must be provided if winter operation
is expected.
0”
