PIPING AND ELECTRICAL CONNECTION
SIZES
TABLE 17: PIPING AND ELECTRICAL
CONNECTION SIZES (25T)
CONNECTION ENTRY SIZE
A SUCTION LINE SYS #1 1-5/8 OD
B LIQUID LINE SYS #1 7/8 OD
E POWER WIRING KNOCKOUT SEE TABLE 19
F CONTROL WIRING 7/8 HOLE
TABLE 18: PIPING AND ELECTRICAL
CONNECTION SIZES (30/40/50T)
CONNECTION ENTRY SIZE
A SUCTION LINE SYS #1 1-5/8 OD
B LIQUID LINE SYS #1 7/8 OD
C SUCTION LINE SYS #2 1-5/8 OD
D LIQUID LINE SYS #2 7/8 OD
E POWER WIRING KNOCKOUT SEE TABLE 19
F CONTROL WIRING 7/8 HOLE
TABLE 19: ELECTRICAL POWER KNOCKOUT SIZES
CONNECTION ENTRY 25 Ton 30-40-50 Ton
E POWER WIRING 1-1/2’ 1-1/2’

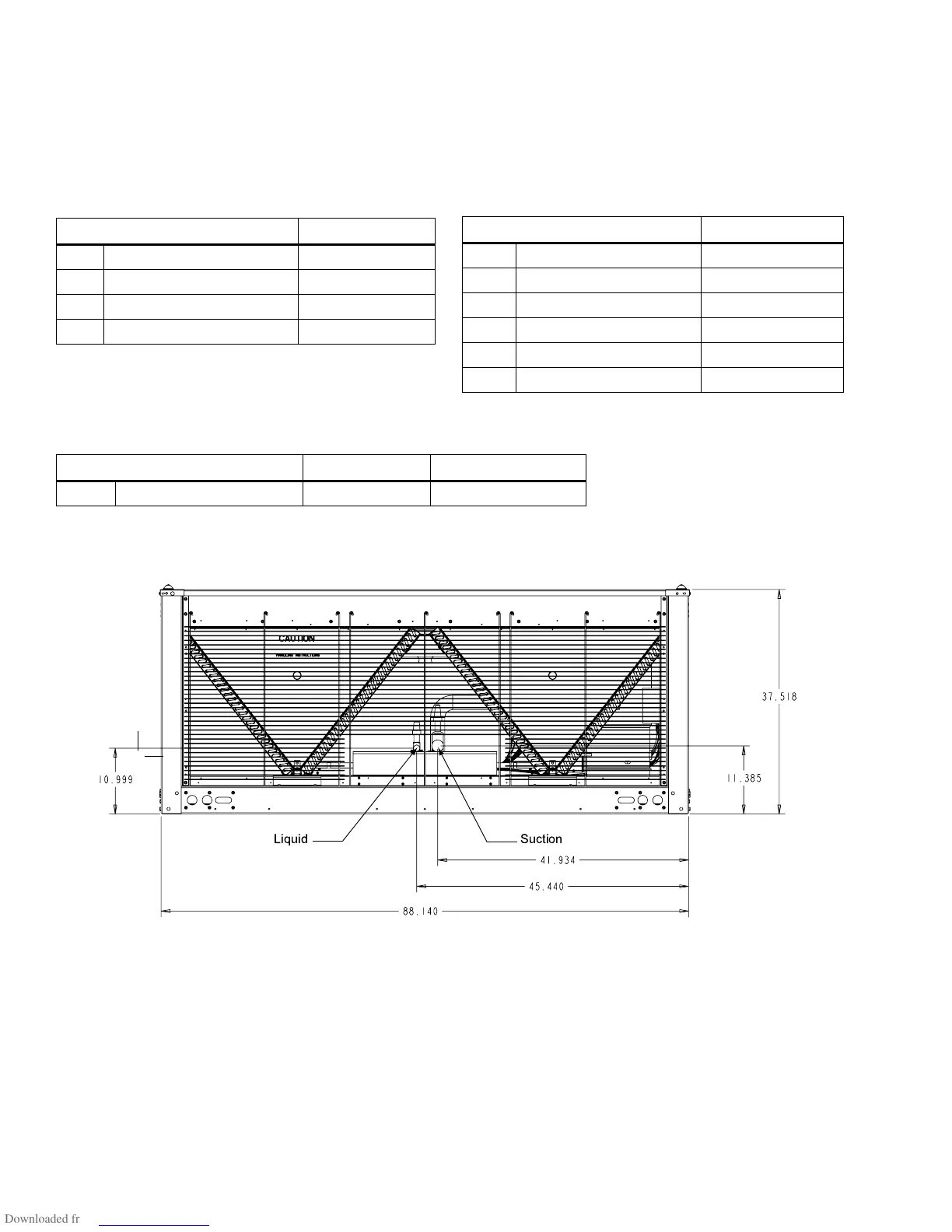

FIGURE 6 - 25 TON PIPING CONNECTIONS
Liquid Suction
