Understanding Schedule Settings
On the Schedule Settings screen, tap the buttons to enable the required
schedule settings. When a setting is enabled, a check mark is displayed.
Use the scroll bar to view all options.
As shown in Figure 22, you can choose one of the following modes:
• Programmable: This mode allows you to set up heating and cool-
ing setpoints for four periods in each day of the week. These peri-
ods are referred to as day parts in this document. When you select
Programmable mode, the default schedule is displayed on the
Schedule screen. You can edit the default schedule as required
using the Edit Schedule screen.
• Non-Programmable: This means that the thermostat runs in a
simplified mode that satisfies the selected heating or cooling set-
points. In this mode, the Edit Schedule icon does not appear
because the scheduling functionality is disabled.
You can change the mode you have selected if required. To do so, go to
the Schedule Settings screen and tap the button for the required mode.

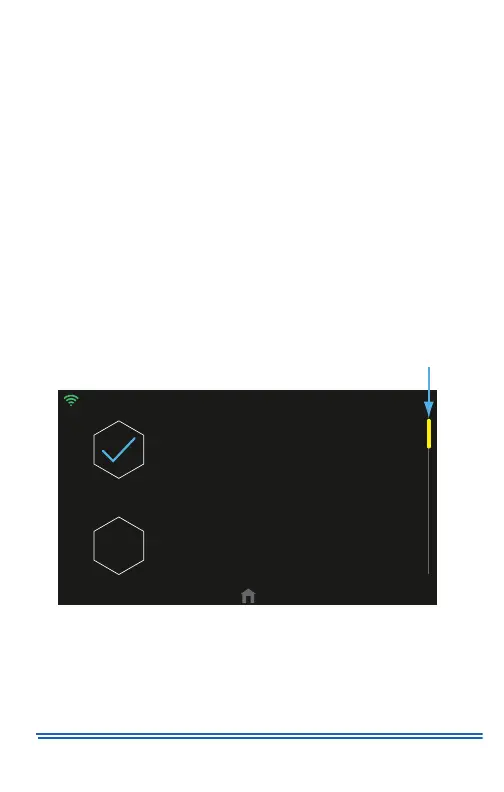

Figure 22: Schedule settings screen
OVERRIDE SETTINGS
NON-PROGRAMMABLE
PROGRAMMABLE
Scroll Bar
A1206-001
To Next Page
