York Predator DF 090 User Manual

246699-YTG-D-1208
32 Johnson Controls Unitary Products

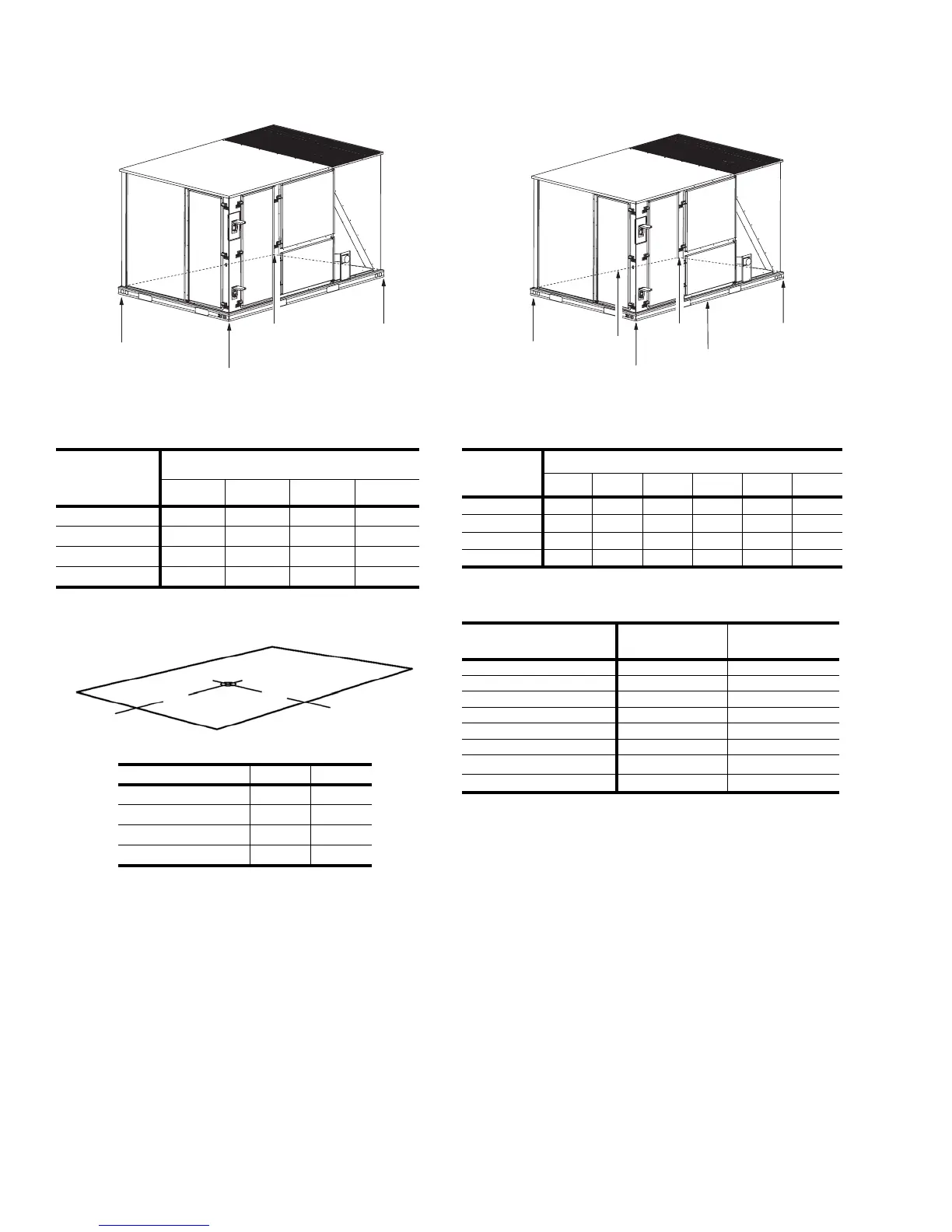

FIGURE 3 - UNIT CENTER OF GRAVITY
FIGURE 2 - UNIT 4 POINT LOAD
TABLE 31: 4 POINT LOAD WEIGHT
Model
Location (lbs.)
*
* Weights include largest heating option.
ABCD
DF078
231 197 288 337
DF090
195 146 228 306
DF102
197 147 230 309
DF120
260 222 324 379
Unit Model Number
XY
DF078
47 1/2 25 1/2
DF090
38 23
DF102
38 23
DF120
47 1/2 25 1/2
D
A
CB
LEFT
FRONT
X
Y
LEFT
FRONT
FIGURE 4 - UNIT 6 POINT LOAD
TABLE 32: 6 POINT LOAD WEIGHT
Model
Locations (lbs.)
ABCDEF
DF078
158 142 128 187 207 231
DF090
137 112 93 145 175 214
DF102
138 113 93 146 176 216
DF120
178 160 144 210 233 260
TABLE 33: UNIT WEIGHT
Model
Shipping
*
Weight (lbs.)
* Weights include largest heating option.
Operating
Weight (lbs.)
DF078 1058 1053
DF090 875 870
DF102 888 883
DF120 1190 1185
ECON. 85 84
PE 150 148
GAS HEAT
†
† 8 tube gas section.
110 100
ELEC. HEAT
‡
‡ 54kW heater.
49 49
D
A
C
B
E
F
LEFT
FRONT
