127878-YIM-C-1208
Johnson Controls Unitary Products 15
NOTE: A one-inch clearance must be provided between
any combustible material and the supply ductwork
for a distance of 3 feet from the unit.
NOTE: If the unit includes gas heating, locate the unit so
the flue exhaust is at least:
• Three (3) feet above any forced air inlet located within 10
horizontal feet (excluding those integral to the unit).
• Four (4) feet below, four (4) horizontal feet from, or one
(1) foot above any door or gravity air inlet into the build-
ing.
• Four (4) feet from electric meters, gas meters, regula-
tors, and relief equipment.
.
TABLE 6: UNIT CLEARANCES
Top
*
*.
Units must be installed outdoors. Overhanging struc-
ture or shrubs should not obstruct condenser air dis-
charge outlet.
72”
Right
12”
Front
†
†.
The products of combustion must not be allowed to
accumulate within a confined space and re-circulate.
36”
Left
36”
Rear
‡
‡.
To remove the slide-out drain pan, a rear clearance of
sixty inches is required. If space is unavailable, the
drain pan can be removed through the front by separat-
ing the corner wall.
36”
Bottom
**
**.
Units may be installed on combustible floors made from
wood or class A, B or C roof covering materials.
0”
5 - 1 / 4
B a s e
P a n
1 7 - 1 3 / 1 6
V i e w o f W a l l A c r o s s f r o m C o i l
G a s P i p e I n l e t
DETAIL A
3 - 3 / 4
3 - 9 / 1 6
2 - 3 / 8
5 - 3 / 8
DETAIL C

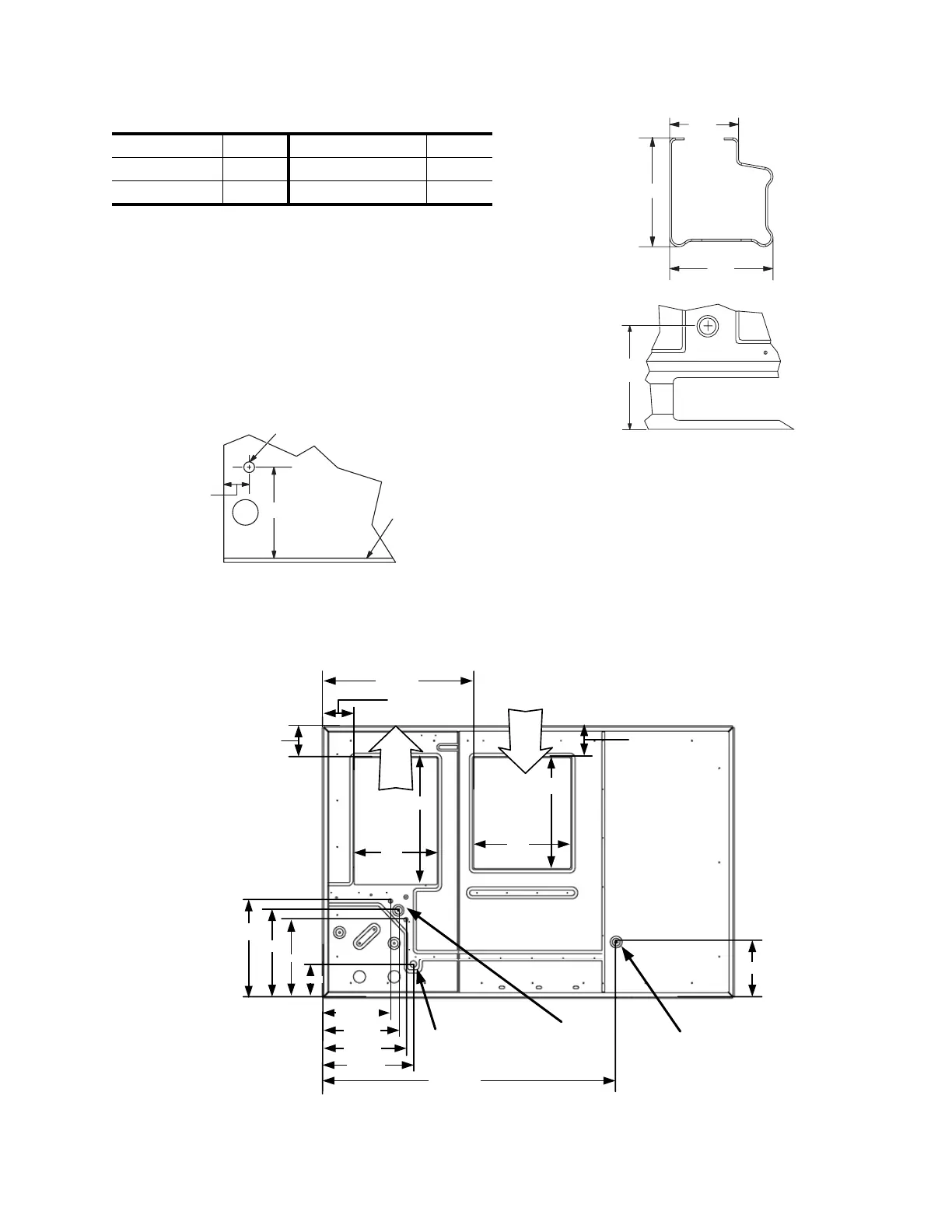

FIGURE 14 - BOTTOM DUCT OPENINGS (FROM ABOVE)
Return
Air
Supply
Air
32-11/16
6-13/16
6-13/16
6-13/16
21-3/16
19-3/16
17-3/16
7-1/8
14-23/32
16-3/8
18-1/16
19-5/8
63-1/2
27-1/2
18
24
21
12-5/16
LEFT
FRONT
Bottom
Condensate
Drain
Bottom
Power, Control and
Convenience Outlet
Wiring Entries
Bottom
Gas Supply Entry
To Next Page
