5167798-YTG-J-0218
Johnson Controls Unitary Products 29

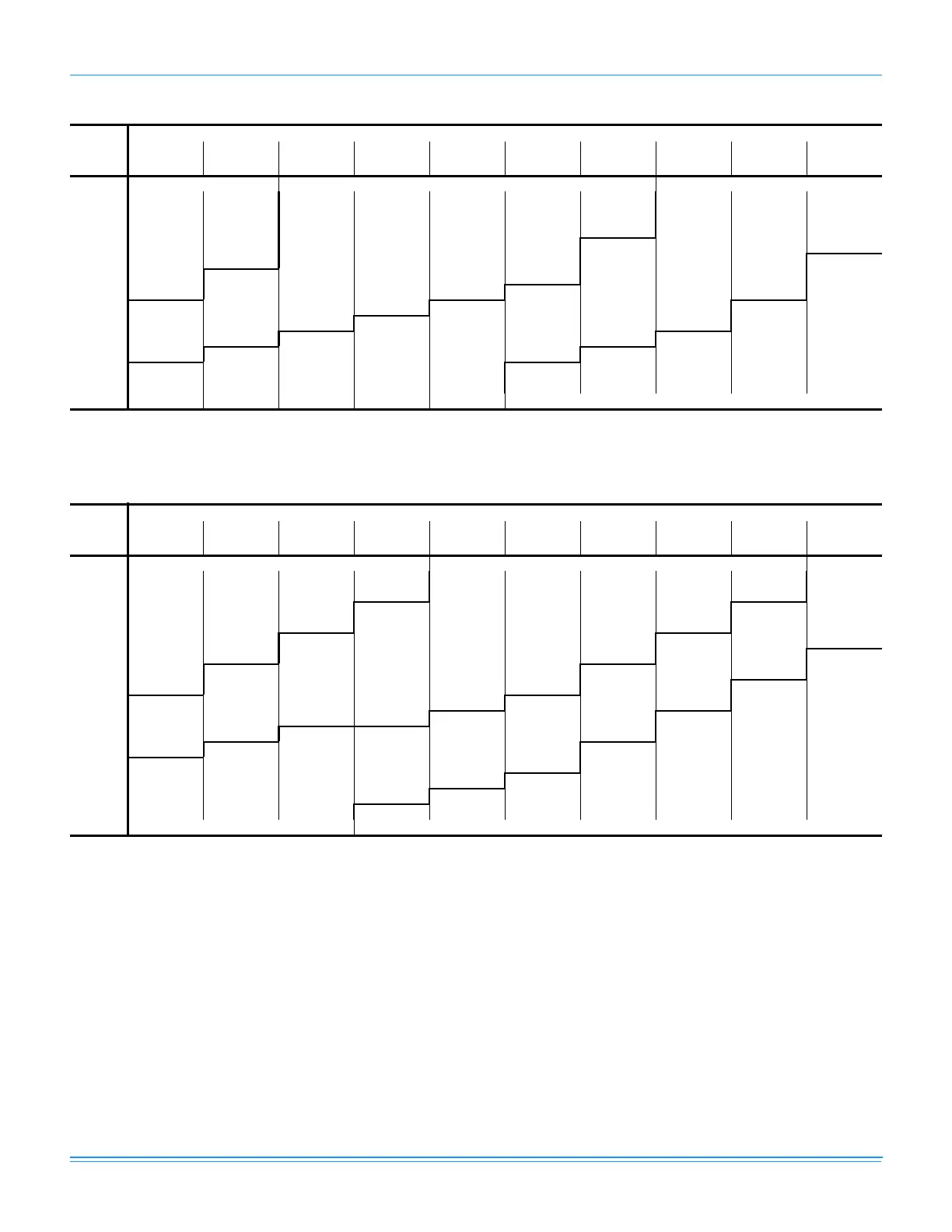

ZF120 (10 Ton) Side Duct
Air Flow
(CFM)
Available External Static Pressure - IWG
1
1. Blower performance includes gas heat exchangers and 2” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard 2 HP & Drive Hi Static 3 HP & Drive
2600 675 0.53 726 0.74 776 0.94 824 1.12 870 1.30 914 1.48 957 1.65 1000 1.82 1041 1.99 1082 2.17
2800 686 0.63 738 0.84 787 1.04 835 1.23 881 1.41 925 1.58 969 1.76 1011 1.93 1052 2.10 1093 2.27
3000 699 0.75 750 0.96 800 1.16 847 1.34 893 1.52 938 1.70 981 1.87 1024 2.04 1065 2.21 1106 2.39
3200 713 0.88 764 1.09 814 1.28 861 1.47 907 1.65 952 1.83 995 2.00 1037 2.17 1079 2.34 1119 2.52
3400 728 1.02 779 1.23 829 1.43 877 1.61 923 1.79 967 1.97 1010 2.14 1053 2.31 1094 2.48 1135 2.66
3600 745 1.18 796 1.39 846 1.59 893 1.77 939 1.95 984 2.13 1027 2.30 1069 2.47 1111 2.64 1152 2.82
3800 763 1.36 815 1.57 864 1.76 912 1.95 958 2.13 1002 2.31 1046 2.48 1088 2.65 1129 2.82 1170 3.00
4000 783 1.55 835 1.76 884 1.96 932 2.15 978 2.33 1022 2.50 1066 2.67 1108 2.84 1149 3.02 1190 3.19
4200 805 1.77 856 1.98 906 2.17 953 2.36 999 2.54 1044 2.72 1087 2.89 1129 3.06 1171 3.23 1211 3.41
4400 828 2.00 879 2.21 929 2.41 976 2.59 1022 2.77 1067 2.95 1110 3.12 1152 3.29 ----
4600 852 2.25 904 2.46 953 2.66 1001 2.85 1047 3.03 1092 3.20 1135 3.37 - -----
4800 879 2.52 930 2.73 980 2.93 1027 3.12 1073 3.30 - - - - - -----
50009062.819583.0210073.2210553.41------------
3 HP & Field Supplied Drive
ZF150 (12.5 Ton) Side Duct
Air Flow
(CFM)
Available External Static Pressure - IWG
1
1. Blower performance includes gas heat exchangers and 2” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
3 HP & Field Supplied Drive Standard 3 HP & Drive
3200 684 1.00 741 1.16 794 1.32 844 1.48 892 1.65 940 1.81 988 1.97 1036 2.12 1087 2.27 1141 2.42
3400 709 1.15 765 1.30 818 1.46 868 1.62 916 1.79 964 1.95 1012 2.11 1061 2.26 1112 2.42 1166 2.56
3600 734 1.30 791 1.46 844 1.62 894 1.78 942 1.94 990 2.10 1038 2.26 1087 2.42 1137 2.57 1191 2.72
3800 761 1.48 818 1.63 871 1.79 921 1.95 969 2.12 1017 2.28 1065 2.44 1114 2.59 1164 2.75 1218 2.89
4000 789 1.66 846 1.82 899 1.98 949 2.14 997 2.31 1045 2.47 1093 2.63 1142 2.78 1192 2.93 1246 3.08
4200 818 1.87 875 2.03 928 2.19 978 2.35 1026 2.51 1074 2.67 1121 2.83 1170 2.99 1221 3.14 1275 3.29
4400 847 2.09 904 2.25 957 2.41 1007 2.57 1055 2.73 1103 2.90 1151 3.06 1199 3.21 1250 3.36 1304 3.51
4600 877 2.33 934 2.49 986 2.65 1036 2.81 1085 2.97 1132 3.14 1180 3.29 1229 3.45 1280 3.60 1334 3.75
4800 907 2.59 963 2.75 1016 2.91 1066 3.07 1115 3.23 1162 3.39 1210 3.55 1259 3.71 1310 3.86 1364 4.01
5000 937 2.86 993 3.02 1046 3.18 1096 3.34 1145 3.50 1192 3.66 1240 3.82 1289 3.98 1340 4.13 1394 4.28
5200 967 3.15 1023 3.31 1076 3.47 1126 3.63 1175 3.79 1222 3.95 1270 4.11 1319 4.27 1370 4.42 1424 4.57
5400 997 3.45 1053 3.61 1106 3.77 1156 3.93 1205 4.09 1252 4.26 1300 4.41 1349 4.57 1400 4.72 1454 4.87
5600 1027 3.77 1083 3.93 1136 4.09 1186 4.25 1235 4.41 1282 4.57 1330 4.73 1379 4.89 1430 5.04 1484 5.19
5800 1057 4.11 1113 4.26 1166 4.42 1216 4.59 1264 4.75 1312 4.91 1360 5.07 1409 5.22 ----
6000 1086 4.46 1143 4.61 1196 4.77 1246 4.93 1294 5.10 1342 5.26 - - - -----
620011164.8211724.9812255.1412755.30------------
Hi Static 5 HP & Drive 5 HP & Field Supplied Drive
