SECTION 2 - OPTIVIEW CONTROL CENTER INTRODUCTION
JOHNSON CONTROLS
153
FORM 160.54-O1
ISSUE DATE: 9/10/2014
2
OVERVIEW
This screen allows the user to browse through the faults.
In order to get a more thorough reporting of the system
conditions at the time of the recorded shutdown, move
to the subscreen HISTORY DETAILS.
The user may use the SELECT FAULT button to select
the history to view. At this point the VIEW DETAILS
button is used to jump to a subscreen containing stored
chiller parameters values at the time of the shutdown.
Additionally, the PRINT HISTORY button can be used
to generate a hard-copy report of the parameter values
at the time of the shutdown.
DISPLAY ONLY
Last Normal Shutdown
This window displays the date and time and the de-
scription of the last normal shutdown. A normal shut-
down is defined as:
• Local (Panel rocker switch)
• Remote (Digital, Analog or ISN)
Last Fault While Running
This window displays the date and time and the de-
scription of the last safety or cycling shutdown while
the system was running.
Last Ten Faults
This window displays a chronological listing (most
recent first) of the date and time and the description
of the last ten safety or cycling shutdowns that occur
while the system is running or stopped.
For elds requiring access level of SER-
VICE. Service Technicians refer to the
OptiView Control Center - Service Instruc-
tions (Form 160.54-M1) for operation
instructions and explanation of all pro-
grammable setpoints and displayed values.
PROGRAMMABLE
Print History
Access Level Required: VIEW
This generates a report listing the status of the chiller
parameters at the time of the selected shutdown.

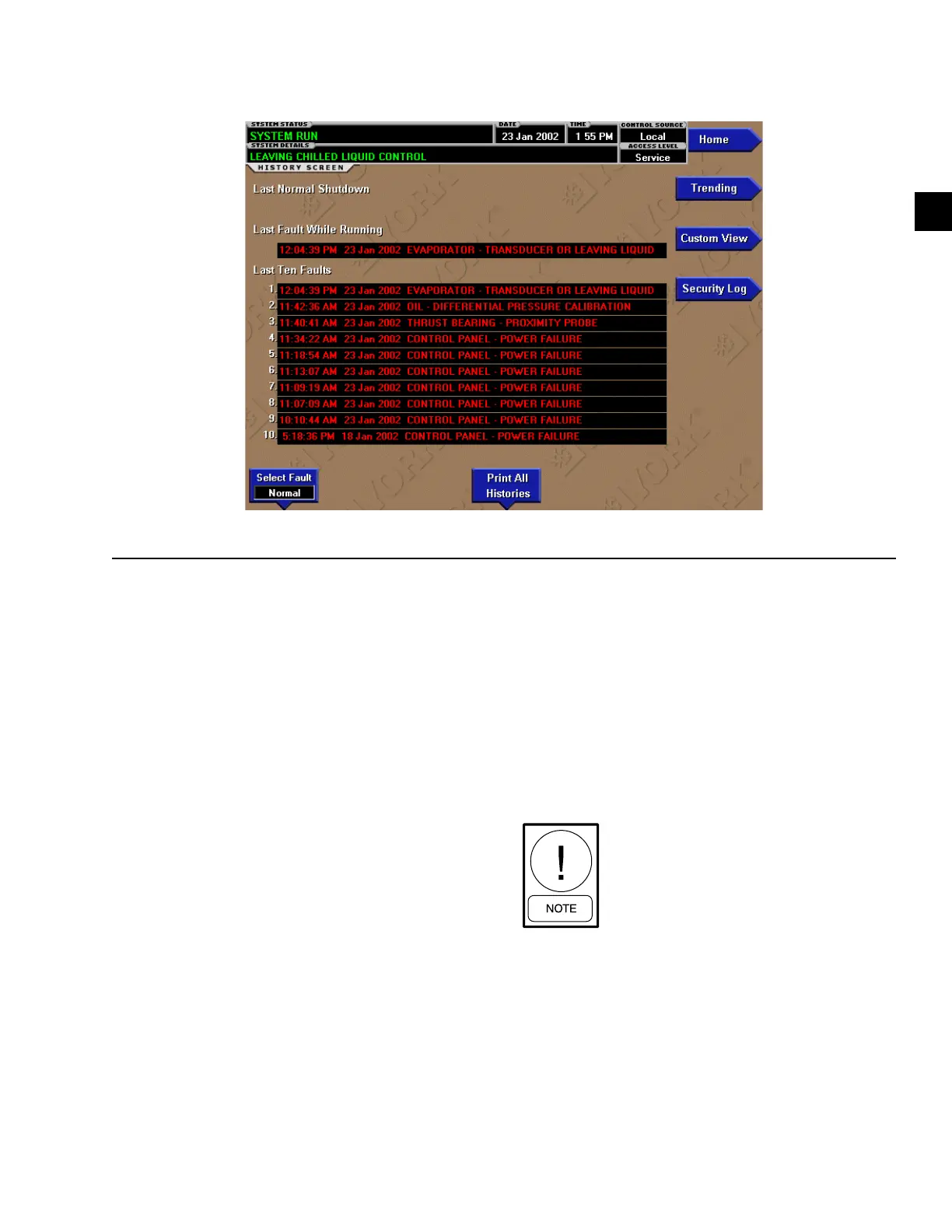

HISTORY SCREEN
00661VIP
FIGURE 52 - HISTORY SCREEN
