JOHNSON CONTROLS
83
SECTION 2 - OPTIVIEW CONTROL CENTER INTRODUCTION
FORM 160.67-O1
ISSUE DATE: 4/1/2015
2
USER SCREEN
00317VIP

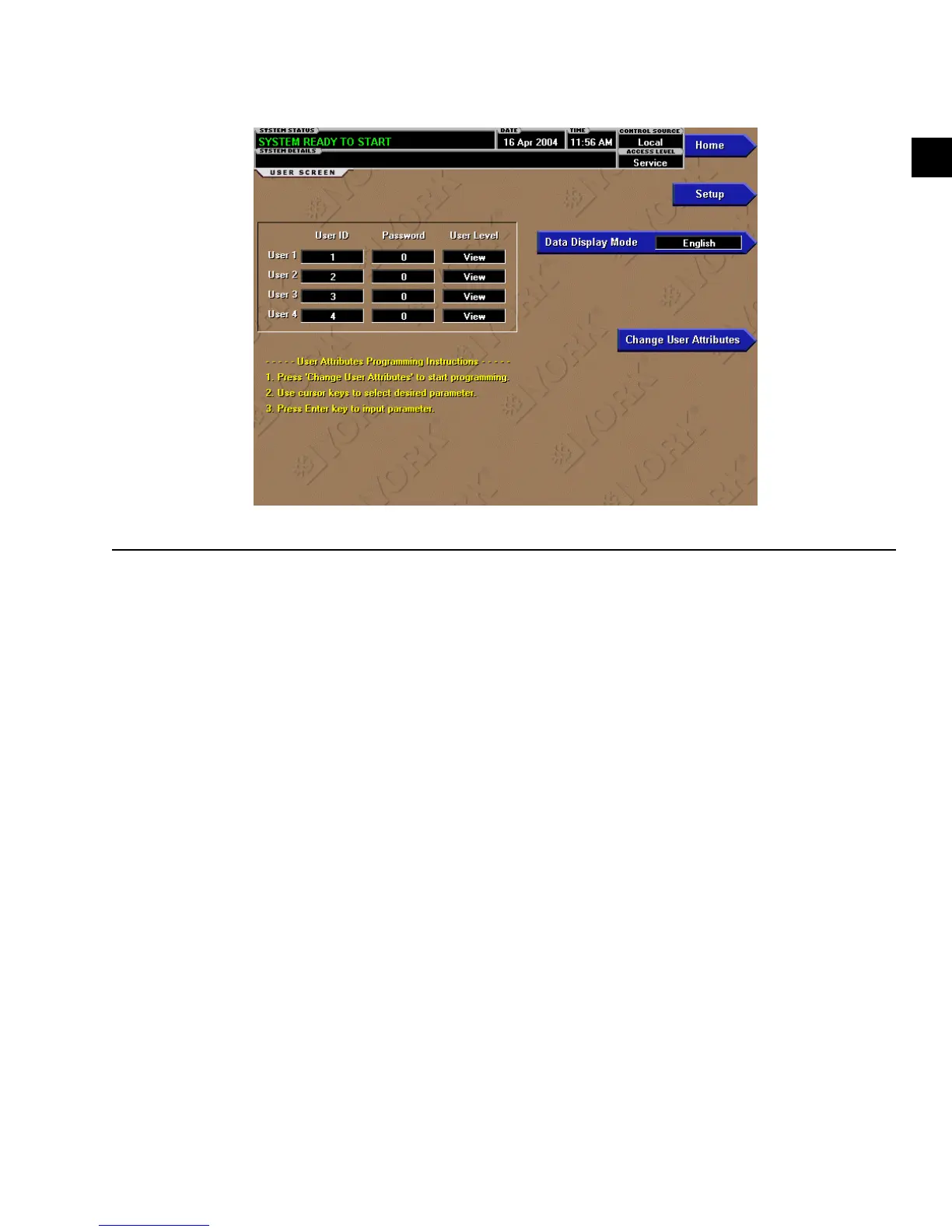

FIGURE 30 - USER SCREEN
NOTE: OptiView
™
Control Center Screens shown may NOT represent the exact screens according to the software version utilized.
OVERVIEW
This screen allows definition of custom User ID’s and
matching passwords. This allows the building admin-
istrator to assign custom passwords to those who are
authorized to maintain the chiller.
Each Custom User value is not linked to a specific
button. Instead, the Change button is pressed which
enables the cursor arrows which are used to highlight
the Custom User parameter the user wishes to modify.
At this point the ‘’ (Check) button is pressed and the
value may be entered.
DISPLAY ONLY
None
PROGRAMMABLE
English / Metric Units
Access Level Required: OPERATOR
Define the unit system (English or Metric) used by the
chiller display.
Custom User ID (4)
Access Level Required: SERVICE
This allows the user to specify up to four (4) Custom
User ID values. Each user ID will then require a corre-
sponding Password and User Level. A User ID can be
defined for various maintenance personnel.
Custom User Password (4)
Access Level Required: SERVICE
This allows the user to specify up to four (4) Custom
Password values. Each Password will then require a
corresponding User ID and User Level.
Custom User Access Level (4)
Access Level Required: SERVICE
This allows the user to specify up to four (4) Custom
User Access Levels. Each Access Level will then re-
quire a corresponding Password and User ID.
NAVIGATION
Home
Access Level Required: VIEW
Causes an instant return to the Home Screen.
Setup
Access Level Required: VIEW
Return to the Setup Screen.
