Z-CAM E2 User Manual

 Sharpness: Strong / Medium / Week, default Medium.
 Brightness: 0~100, default is 50.*
 Saturation: 0~100, default is 50.*
 Contrast: 0~100, default 50.*
* Available only when Image Profile is set to Rec.709 or HLG.
 Luminance Level: Full / Limited. The range of luminance level is 0~255 when it’s set
to Full, and 16~235 when it’s set to Limited.

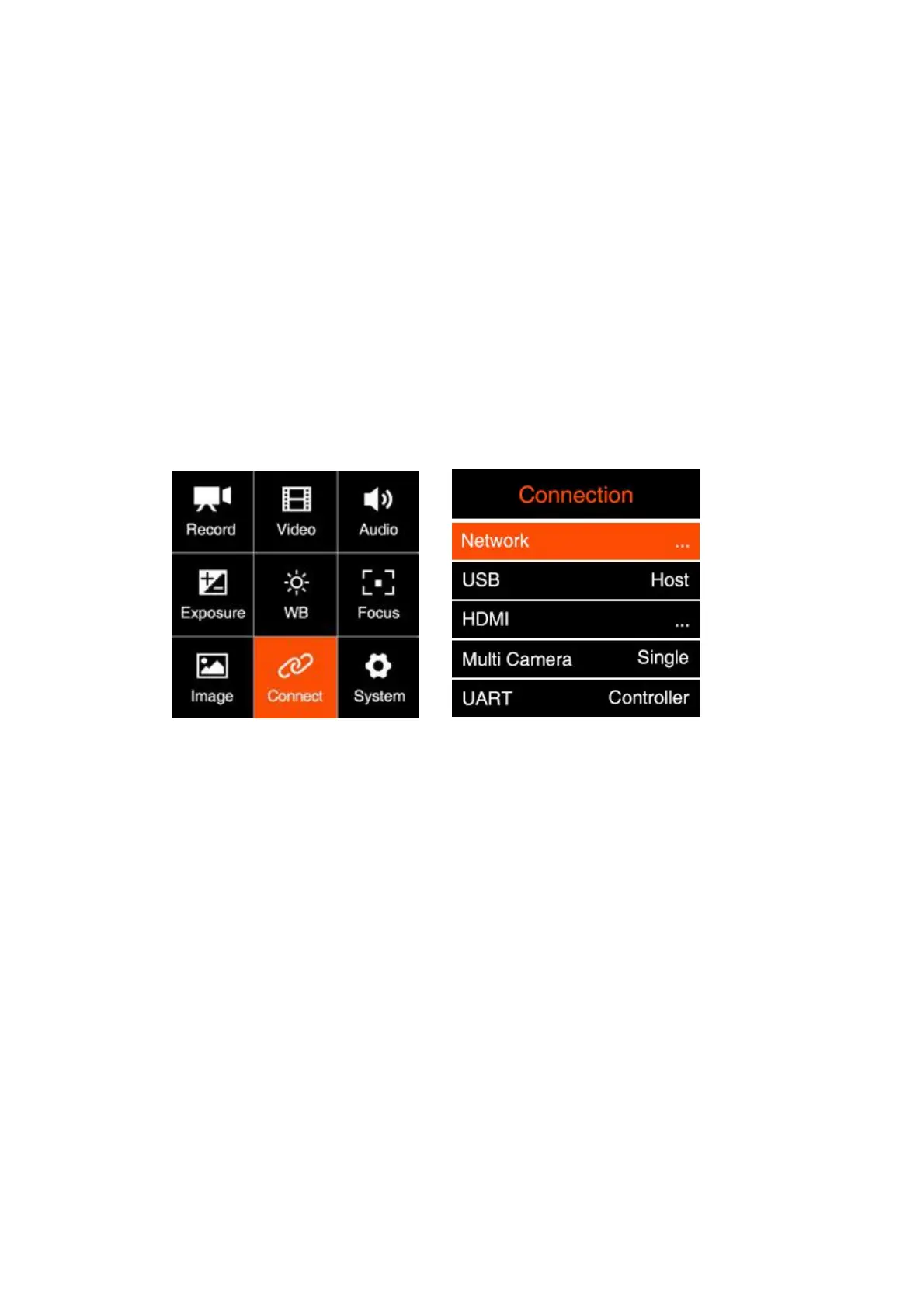

2.9. Connect
 Network: there are sub-items as below:
 Wi-Fi: Off / On. When the Wi-Fi is activated, here will show the Wi-Fi ID, which
is ZCAM-E2-XXXX (last four digits which match to the camera ID), and the
default password is: 12345678, which can only be changed with iOS app (6.
Using Z Camera App)
 Wi-Fi IP: Here will show IP address of the Wi-Fi when it’s is activated.

ETH. Mode (Ethernet Mode): Direct / Router / Static
- Router: Camera is connected to the computer through a router, IP
address will be assigned by the router.
- Direct: Camera is connected to the computer directly through Ethernet
cable, camera will generate the IP address. The default is: 10.98.32.1
- Static: to set the IP address with configuration file. (Please contact Z
CAM’s technical support if you want to set this)
 ETH. IP: IP address of the Ethernet when it’s connected.

Z-CAM E2 Specifications

General

HDMI	Yes
PictBridge	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Optical zoom	- x
Image stabilizer	-
Sensor type	CMOS
Total megapixels	- MP
Optical sensor size	4/3 \
Effective megapixels (movie)	10.28 MP
Video resolutions	3840 x 2160, 4096 x 2160 pixels
Maximum frame rate	160 fps
Video formats supported	H.264, H.265
Maximum video resolution	4096 x 2160 pixels
Bitrate at maximum video resolution	300 Mbit/s
Camcorder media type	Memory card
Compatible memory cards	CFast 2.0
Internal storage capacity	- GB
ISO sensitivity	500, 640, 800, 1000, 1250, 1600, 2000, 2200, 2250, 2500, 3200, 4000, 5000, 6400, 8000, 10000, 12500, 12800, 16000, 20000, 25000, 25600, 32000, 40000, 50000, 51200, 80000, 102400
Light exposure modes	Auto, Manual
Camcorder type	Handheld camcorder
Wi-Fi standards	Wi-Fi 4 (802.11n)
Ethernet interface type	Gigabit Ethernet
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Display diagonal	- \
Product color	Black
Housing material	Aluminum
Maximum image resolution	- pixels
Audio system	stereo
PCM digital audio	24-bit/48 kHz
Audio formats supported	AAC, PCM
Charging source	Battery, DC
Battery capacity	- mAh
Battery life (max)	- h

Weight and Dimensions

Depth	89.1 mm
Width	91.2 mm
Height	99.2 mm
Weight	757 g
