DISASSEMBLY
You can disassemble the scooter into seven pieces: the seat, the front section,
the rear section, the rear shroud, the basket, and the batteries. Place the scooter
in an area where you have sufficient clearance to move the parts around. You
may need assistance to lift some of the scooter components.
No tools are required to disassemble or assemble your scooter. Always
disassemble or assemble your scooter on a level, dry surface with sufficient room
for you to work and move around your scooter. Keep in mind that the
disassembled sections of the scooter take up more floor space than the
assembled scooter.
WARNING! Lifting weight beyond your physical capability may result in
personal injury. Ask for assistance when necessary while disassembling
your scooter.
1. Place the manual freewheel lever in the drive (up) position.
2. Coil the charger power cord and store it for future use.
3. Pull up on the seat lock lever and lift the seat straight up and off the
scooter. (Figure 13).
4. Gently pull the shroud away from the frame and lift it off of the scooter.
The shroud is held on with Velcro strips. (Figure 14).
5. Disconnect the battery straps.
6. Unplug both black and white 2-pin battery harnesses (Figure 15).

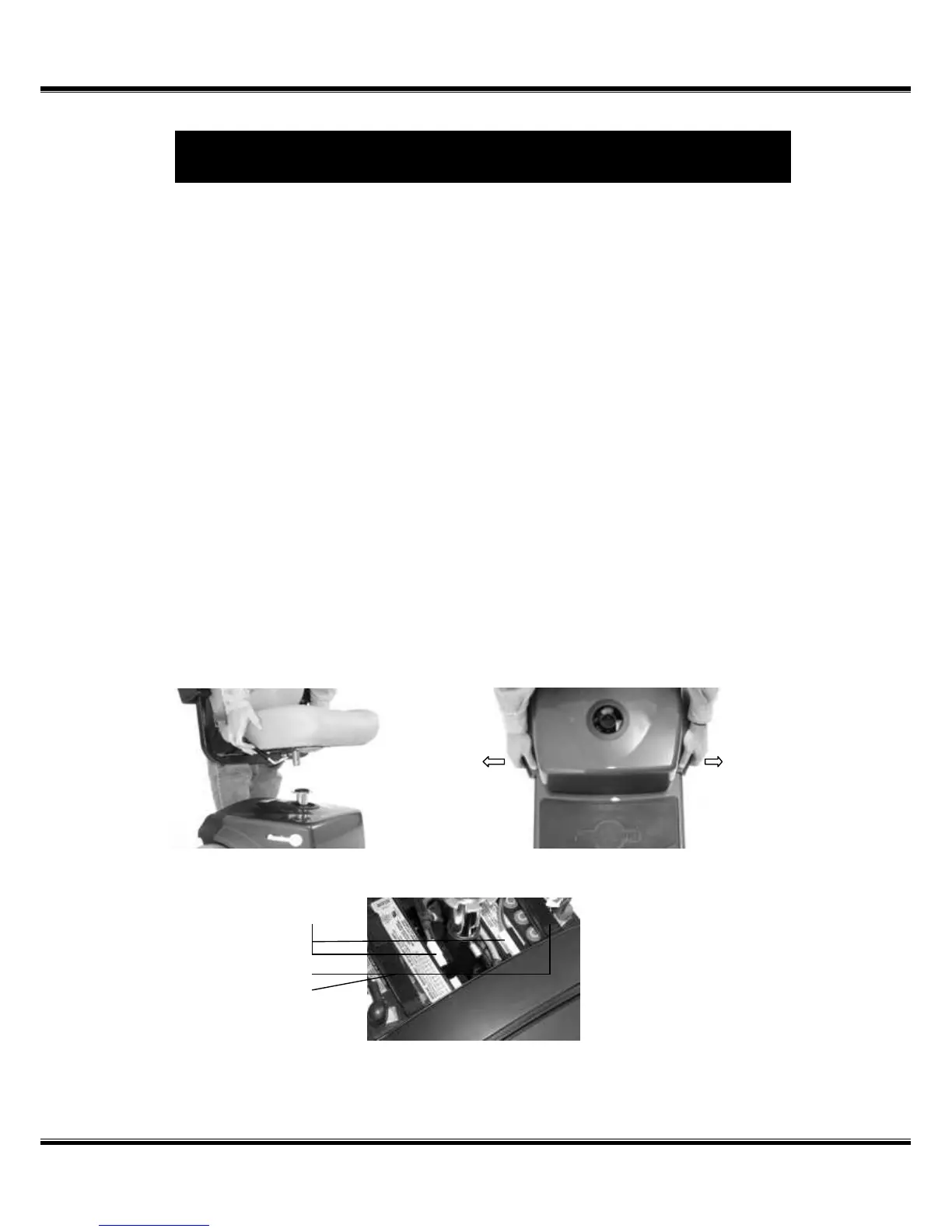

FIGURE 13. REMOVING SEAT FIGURE 14. REAR SHROUD REMOVAL
Battery Harnesses
Straps
FIGURE 15. BATTERY HARNESS
