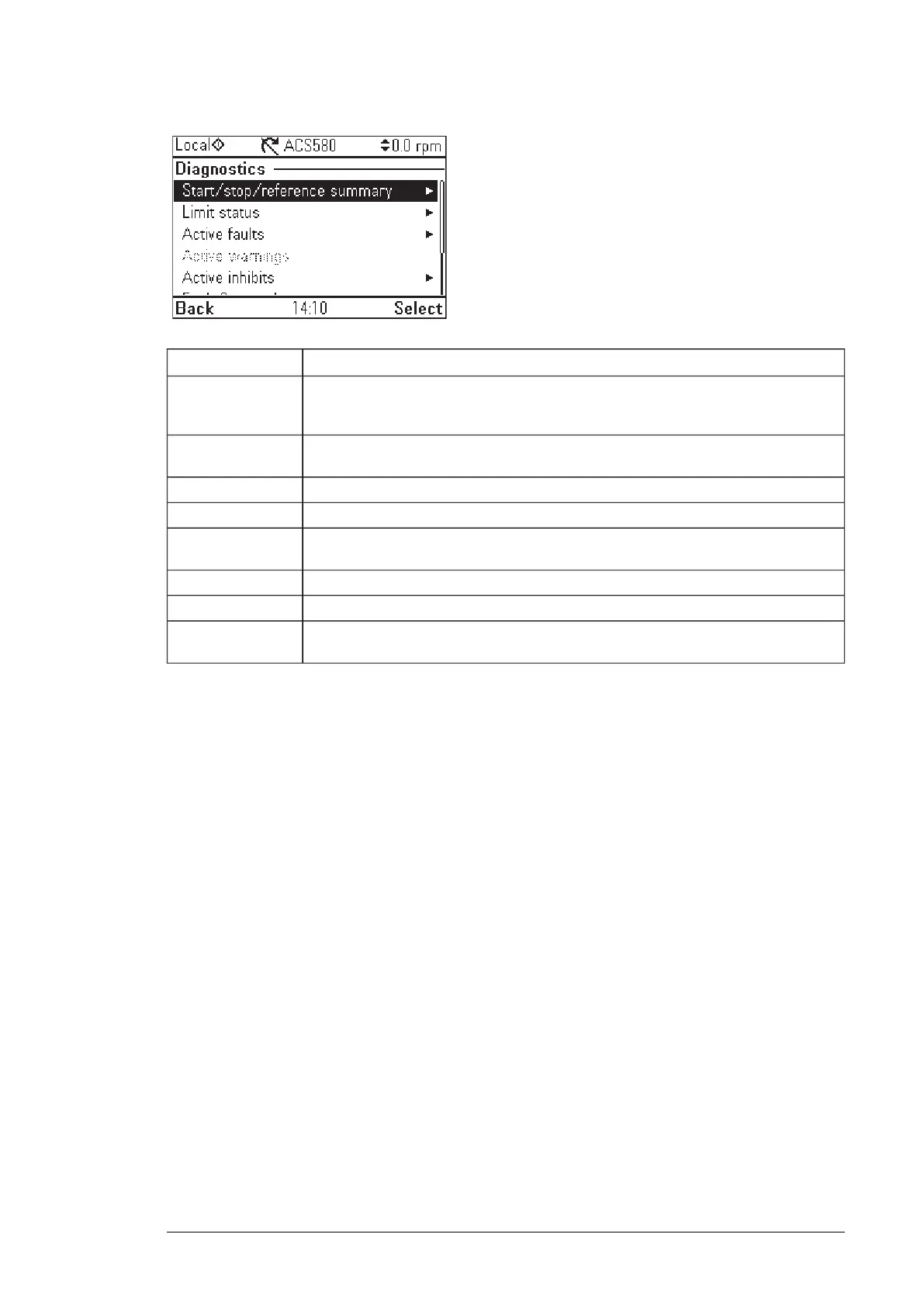

FunctionSub-menu
Shows where the drive is currently taking its start, stop commands and reference. The
view is updated in real time. If the drive is not starting or stopping as expected, or runs
at undesired speed, use this view to find out where the control comes from.
Start, stop, reference,
summary
Describes any limits currently affecting operation. If the drive is running at undesired
speed, use this view to find out if any limitations are active.
Limit status
Shows the currently active faults and provides instructions on how to fix and reset.Active faults
Shows the currently active warnings and provides instructions on how to fix and reset.Active warnings
Shows the currently active inhibits. The drive cannot start. Drive is not parameterized
correctly.
Active inhibits
Lists the faults, warnings and other events that have occurred in the drive.Fault & event log
Provides status information and sent and received data from fieldbus for troubleshooting.Fieldbus
Provides status information of load distribution (that is, drive running time spent on each
load level) and peak load levels.
Load profile
Functions in the main Menu 51
