23.4.1 Process Supply Voltage
CAUTION!
The process supply voltage must be included in the earthing concept (e. g.
earthing of the minus pole).
23.4.2 Outputs

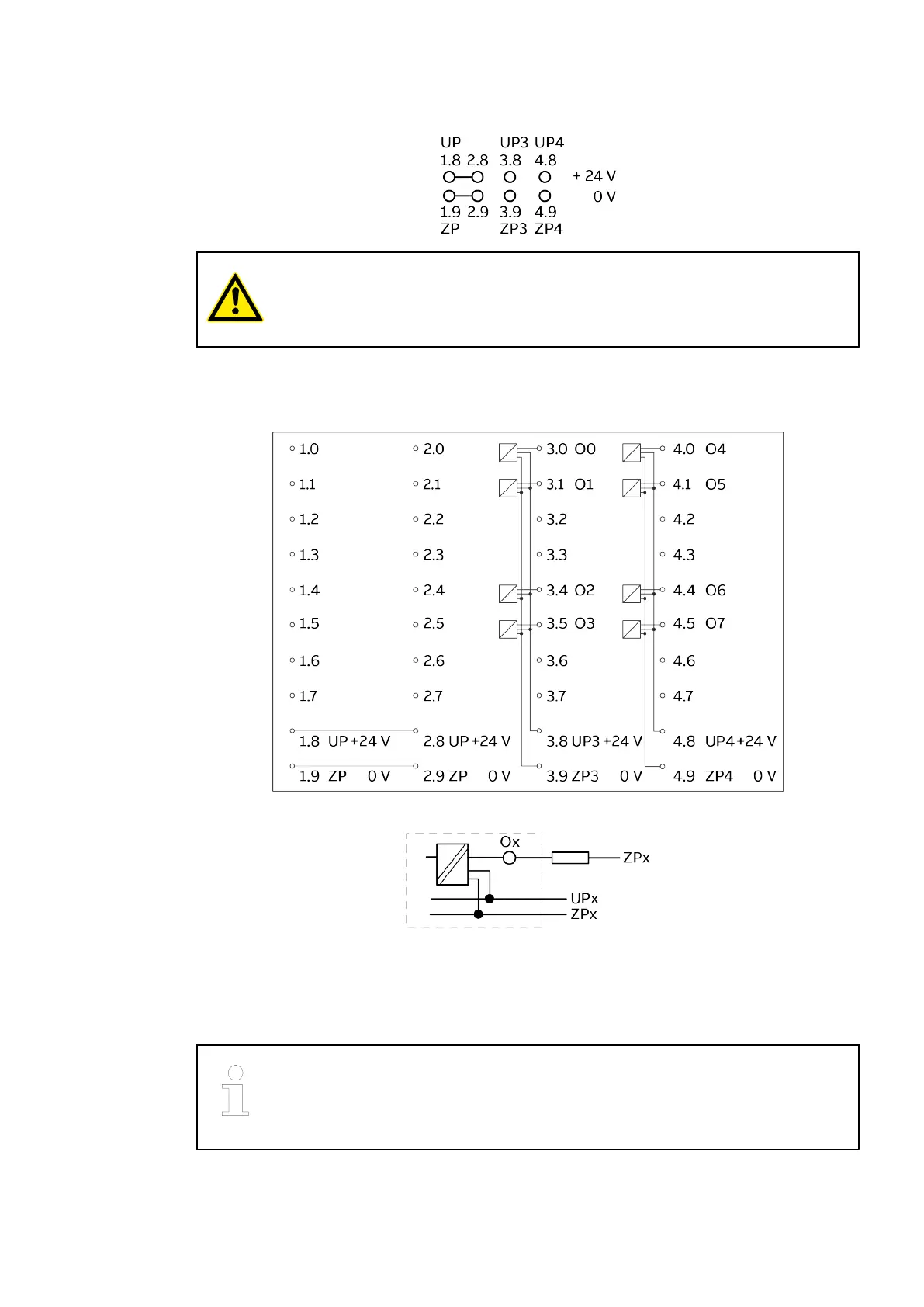

Fig. 35: Example for connection output
23.5 Cleaning
Cleaning instruction
Do not use cleaning agent for cleaning the device.
Use a damp cloth instead.
Example
DO526
Cleaning
2019/11/15 3ADR024117M02xx, 11, en_US 185
