ABB ACH550-UH User Manual

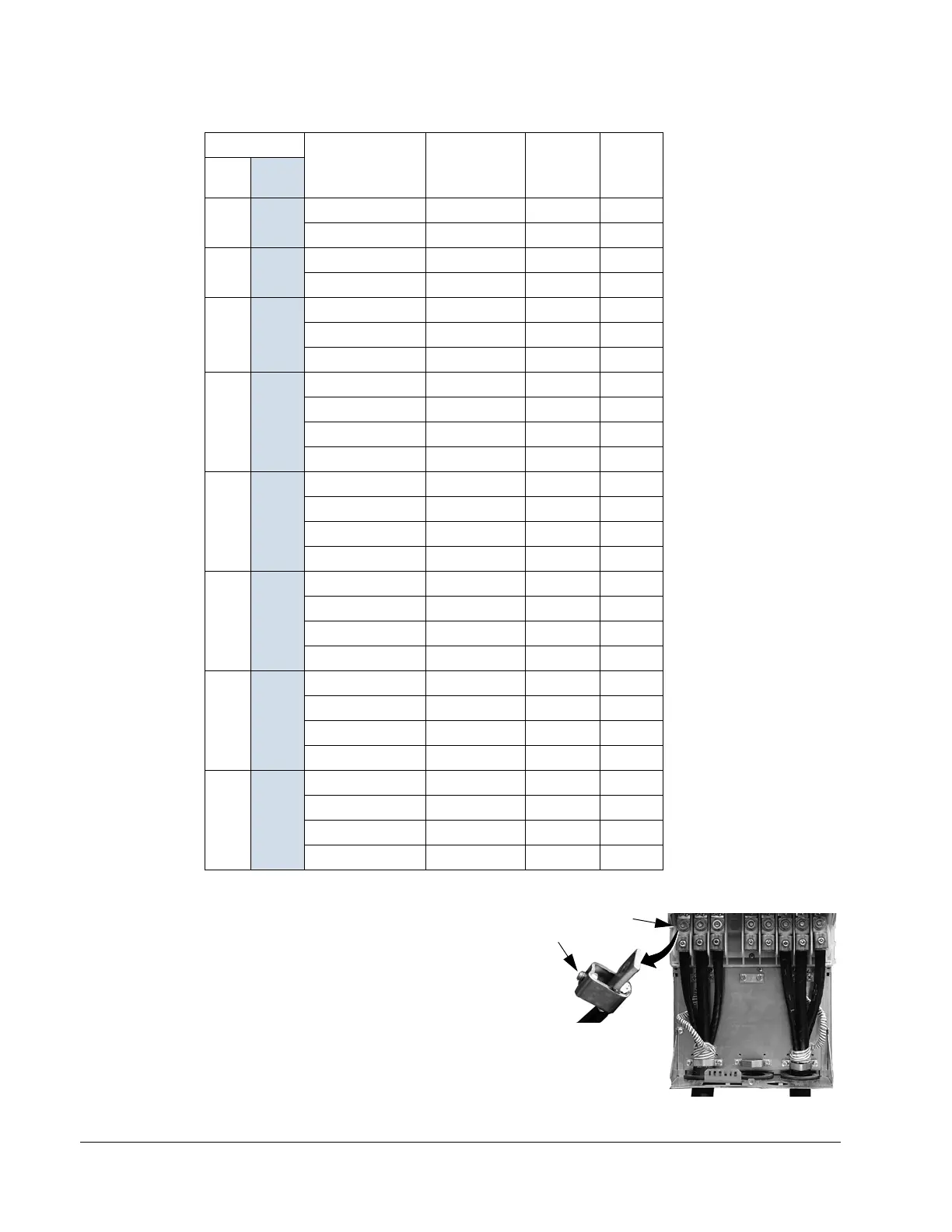

1-308 ACH550-UH User’s Manual
Technical data
4. Attach terminal lug to the drive.
Compression lugs
Use the following procedure to attach cables
if compression lugs are supplied and can be
used.
1. Attach the supplied compression lugs to the
drive end of the cables.
2. Attach compression lug to the drive.
Wire Size
Manufacturer Ring Lug
Crimping
Tool
No. of
Crimps
mm
2
kcmil/
AWG
16
6
Burndy YAV6C-L2 MY29-3 1
Ilsco CCL-6-38 ILC-10 2
25
4
Burndy YA4C-L4BOX MY29-3 1
Ilsco CCL-4-38 MT-25 1
35 2
Burndy YA2C-L4BOX MY29-3 2
Ilsco CRC-2 IDT-12 1
Ilsco CCL-2-38 MT-25 1
50
1
Burndy YA1C-L4BOX MY29-3 2
Ilsco CRA-1-38 IDT-12 1
Ilsco CCL-1-38 MT-25 1
Thomas & Betts 54148 TBM-8 3
55
1/0
Burndy YA25-L4BOX MY29-3 2
Ilsco CRB-0 IDT-12 1
Ilsco CCL-1/0-38 MT-25 1
Thomas & Betts 54109 TBM-8 3
70
2/0
Burndy YAL26T38 MY29-3 2
Ilsco CRA-2/0 IDT-12 1
Ilsco CCL-2/0-38 MT-25 1
Thomas & Betts 54110 TBM-8 3
95
3/0
Burndy YAL27T38 MY29-3 2
Ilsco CRA-3/0 IDT-12 1
Ilsco CCL-3/0-38 MT-25 1
Thomas & Betts 54111 TBM-8 3
95
3/0
Burndy YA28R4 MY29-3 2
Ilsco CRA-4/0 IDT-12 1
Ilsco CCL-4/0-38 MT-25 2
Thomas & Betts 54112 TBM-8 4
X60001
X60003
1
2
