ACS 6000 Maintenance Manual 3BHS202077 ZAB E01 Rev. C 4-1 (10)
Chapter 4 - Changing 3/5 MVA Phase Modules
The tools listed below are part of the tool set (ident. No. 3BHS130246)
delivered with the ACS 6000.
• Lifting device (customer crane or ACS 6000 hoist), two rails

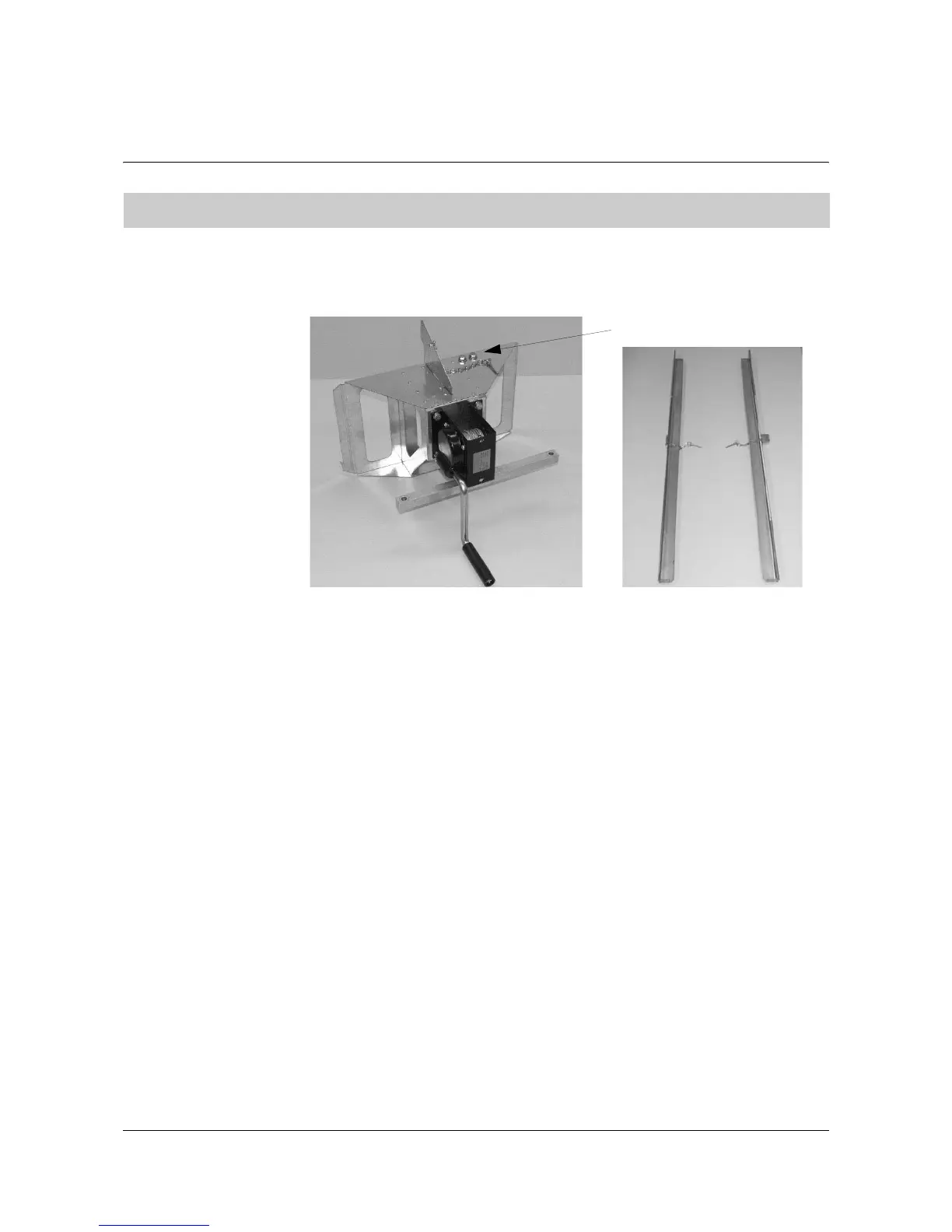

Figure 4-1 ACS 6000 Hoist and Rails
• Two eyebolts (DIN 580, M12) for lifting the phase module by means
of an overhead crane
• Wrench with extension bar (approx. 80 cm) and 10 mm ball end hex
driver for replacing the phase module
• 18 mm ring spanner to unscrew the clamp pressure loading gauge
attached to the side of the phase module
• 12 mm hex driver to open the pressure adjustment bolt of the stack
• Side cutter
• Torque wrench
• MOLYKOTE (type D) assembly grease and RHODORSIL (type 4)
silicone paste
4.1 Required Tools and Accessories
Fastening bolts
