ABB Chapter 9 - Changing Thyristors in EXU
ACS 6000 Maintenance Manual 3BHS202077 ZAB E01 Rev. C 9-7 (8)
under warranty, follow the procedures as stated in the Warranty
Directive (this is recommended even if the warranty period has
expired).

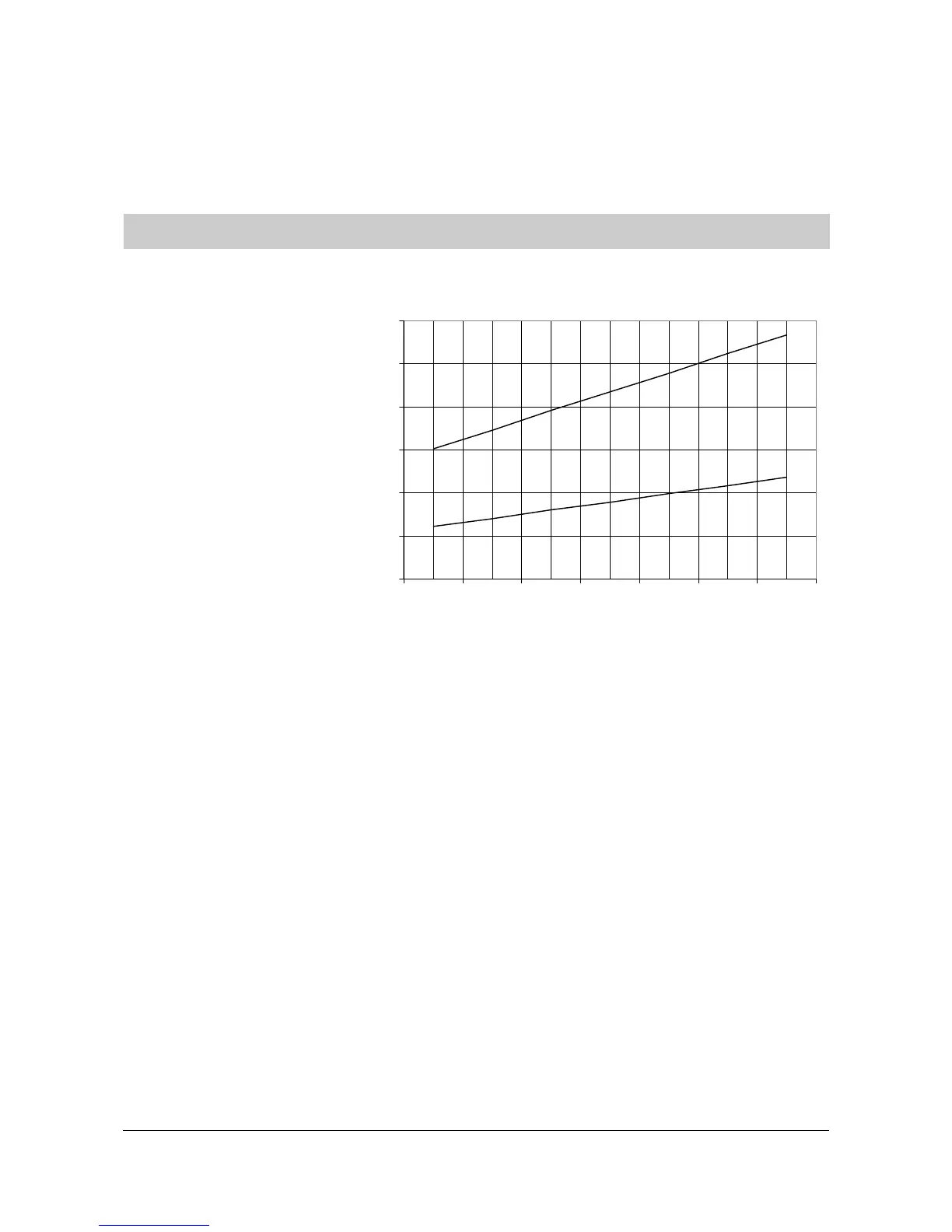

Figure 9-9 Deflection Diagram
9.5 Deflection Diagram
Direct excitation 5STP 1842H
0
10
20
30
40
50
60
0.07 0.08 0.09 0.1 0.11 0.12 0.13
Clamp type SLZD 117
Force 45 kN
Deflection 0.103 mm
Meas. device code 57269324
1842
1242
Brushless excitation 5STP 1242F
Clamp type SLZF 117
Force 22 kN
Deflection 0.121 mm
Meas. device code 57269324
Force in kN
Deflection of clamp (SLZD or SLZF) in mm
