Chapter 7 - Changing 7/9 MVA Phase Modules ABB
7-4 (6) 3BHS202077 ZAB E01 Rev. C ACS 6000 Maintenance Manual
7 Cut off the cable ties on the side of the phase module (see circles in
Figure 7-5 ) and then disconnect the fiber optic cables and the power
supply leads (see arrows in
Figure 7-5 ).

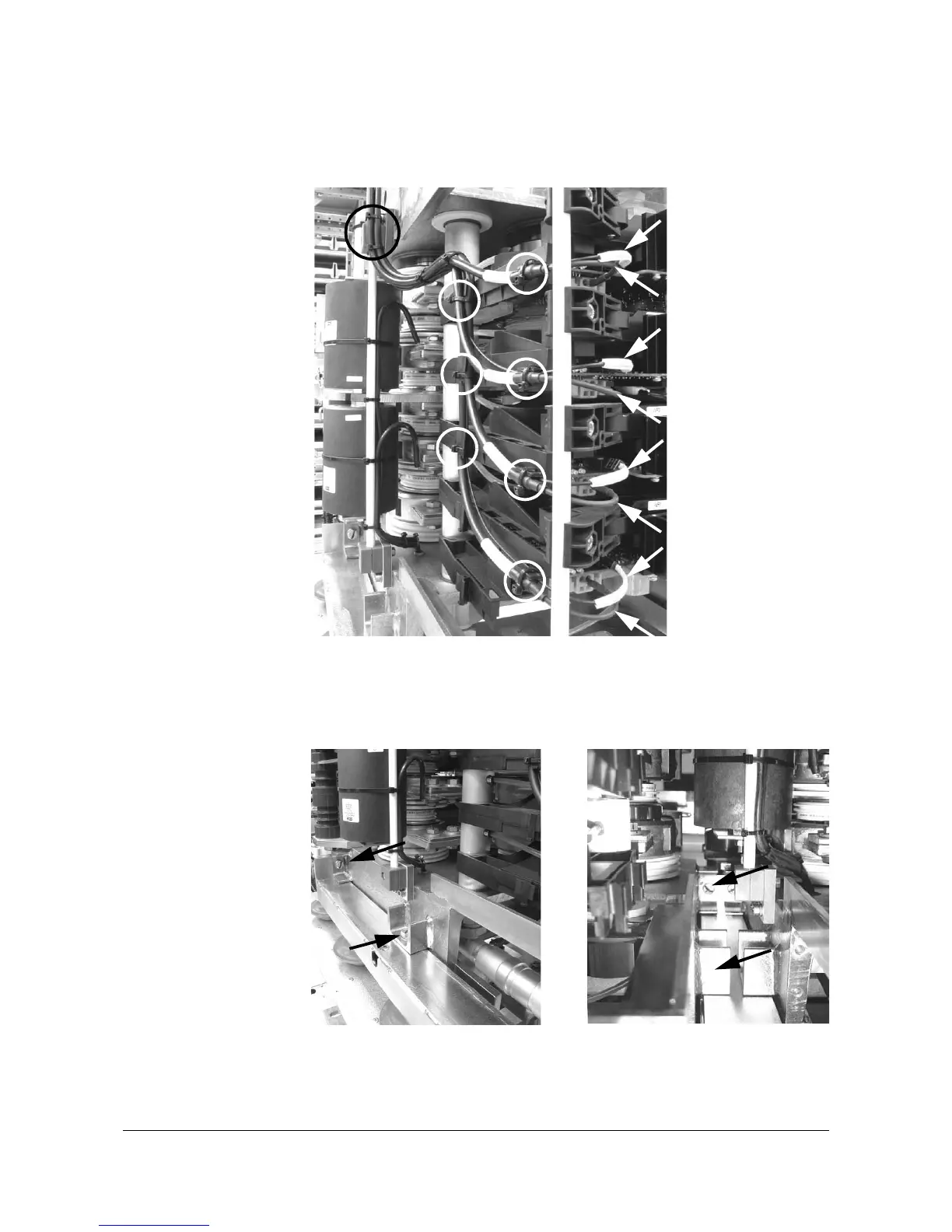

Figure 7-5 Disconnecting Fiber Optics and Power Supply Cables
8 Remove the two fastening bolts at the bottom of each side of the
phase module. See arrows in
Figure 7-6 .
Figure 7-6 Removing the Fastening Bolts
Left side
Right side
