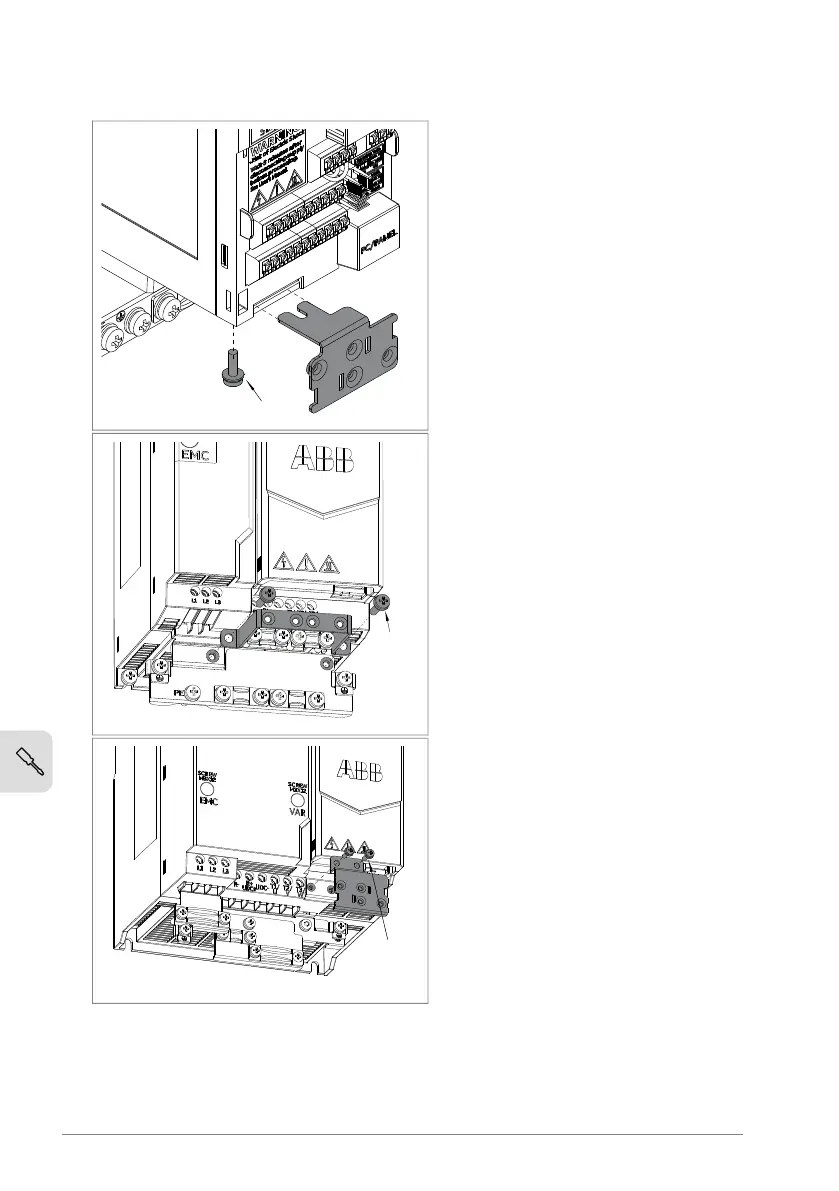

3. Insert the grounding clamp into the slot and fasten it with screw.
R0/R1
M3x10, 1x
R2
M4x20, 2x
R3/R4
R3: M3x12, 2x
R4: M4x8, 2x
4. Strip a part of the outer shield of the control cable for 360-degree grounding.
5. Use a 360-degree grounding clamp to connect the cable to the grounding tab.
74 Electrical installation
