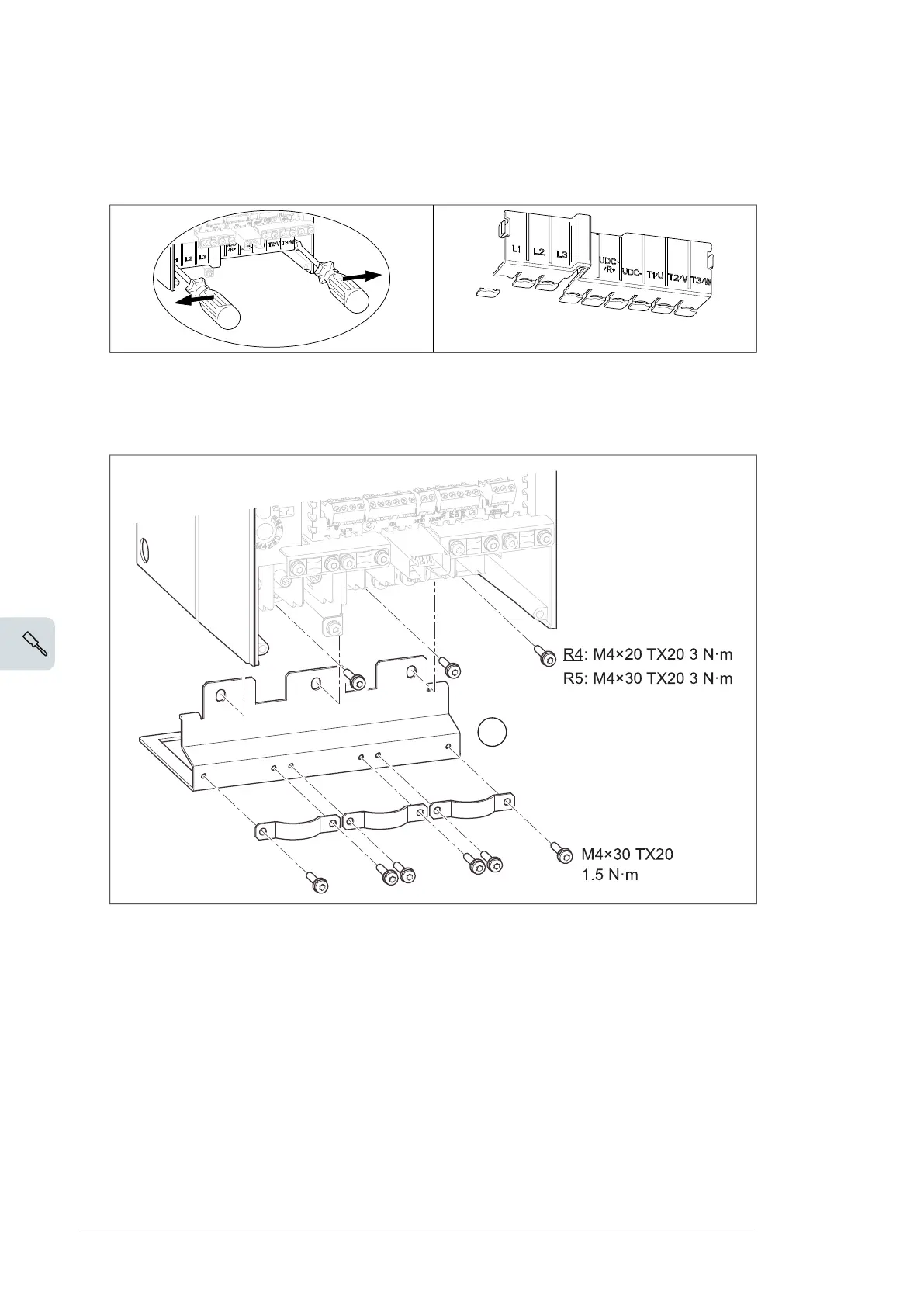

2. Remove the shroud on the power cable terminals by releasing the clips and lifting the
shroud up from the sides with a screwdriver. Knock out holes in the shroud for the cables
to be installed.
3. Attach the mechanical support shelf for the power cables to the drive module.
Note: This shelf is not included with option +C135.
3
44 Electrical installation

ABB ACS880 P940 Series Specifications

General

Category	DC Drives
Output current	Up to 5200 A
Input voltage	380 ... 690 VAC
Cooling method	Air or liquid cooling
Control method	Direct Torque Control (DTC)
Communication protocols	Ethernet, Modbus, PROFIBUS DP, PROFINET, EtherCAT, DeviceNet, CANopen
Protection class	IP00, IP21, IP54
