ABB ACSM1 Control Panel User Manual

Operation
23

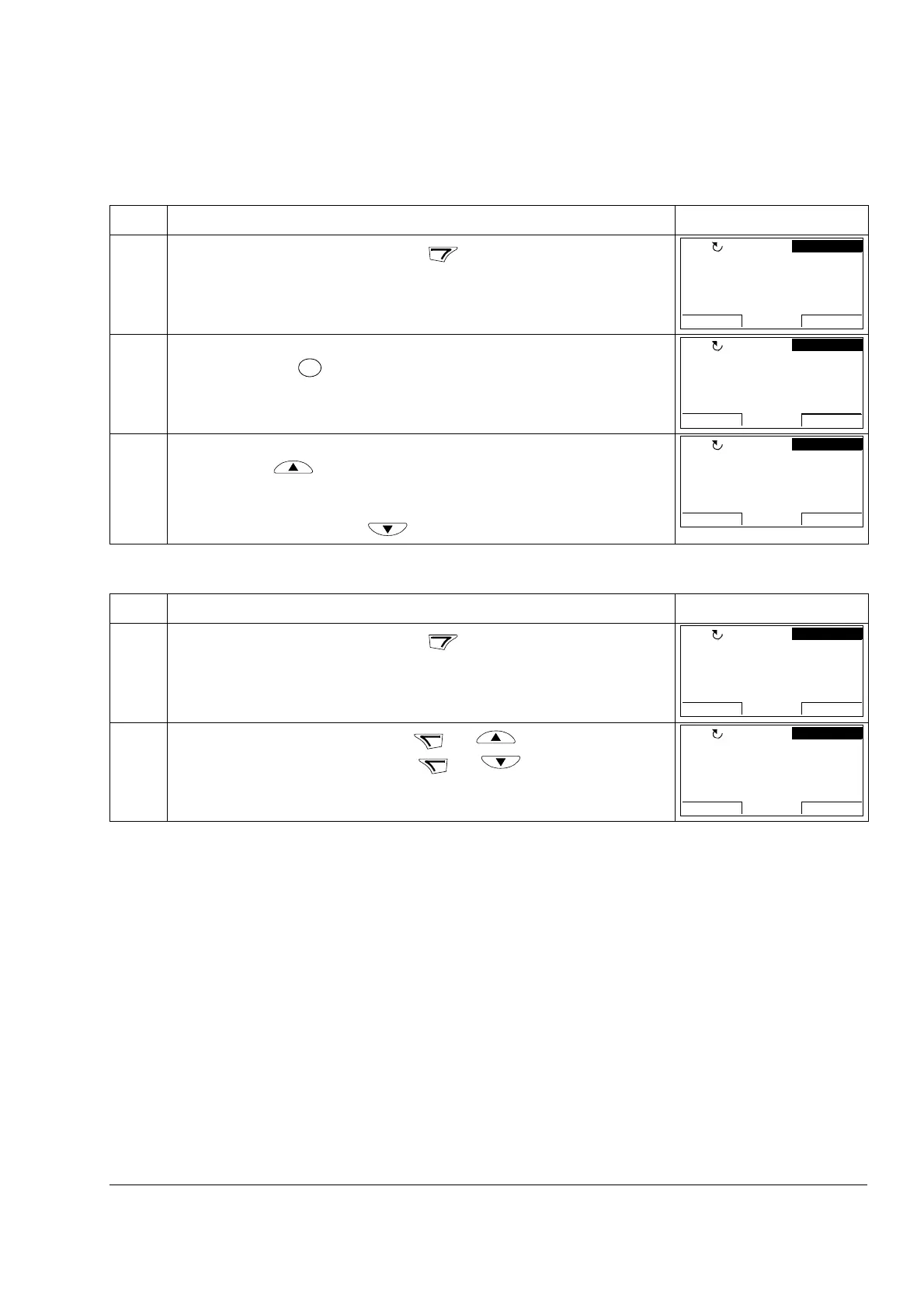

How to set the speed, frequency, torque or position reference in the Output mode
See also section Reference Edit on page 42.
How to adjust the display contrast
Step Action Display
1. If you are not in the Output mode, press repeatedly until you get there.
2. If the drive is in remote control (REM shown on the status line), switch to local
control by pressing . The display briefly shows a message about changing
the mode and then returns to the Output mode.
3. • To increase the highlighted reference value shown in the top right corner of the
display, press . The value changes immediately. It is stored in the
permanent memory of the drive and restored automatically after power switch-
off.
• To decrease the value, press .
Step Action Display
1. If you are not in the Output mode, press repeatedly until you get there.
2. • To increase the contrast, press keys and simultaneously.
• To decrease the contrast, press keys and simultaneously.
EXIT
50 A
10 Hz
7 %10.
0.
49.
REM
DIR
MENU00:00
30.00rpm
LOC
REM
50 A
10 Hz
7 %10.
0.
49.
LOC
DIR
MENU00:00
30.00rpm
50 A
10 Hz
7 %10.
0.
49.
LOC
DIR
MENU
00:00
31.00rpm
EXIT
50 A
10 Hz
7 %10.
0.
49.
LOC
DIR
MENU00:00
30.00rpm
MENU
MENU
50 A
10 Hz
7 %10.
0.
49.
LOC
DIR
MENU00:00
30.00rpm
