Drive Info
In the Drive Info option, you can:
• view information on the drive,
• start, stop, change the direction and switch between local and remote control.
How to view drive info

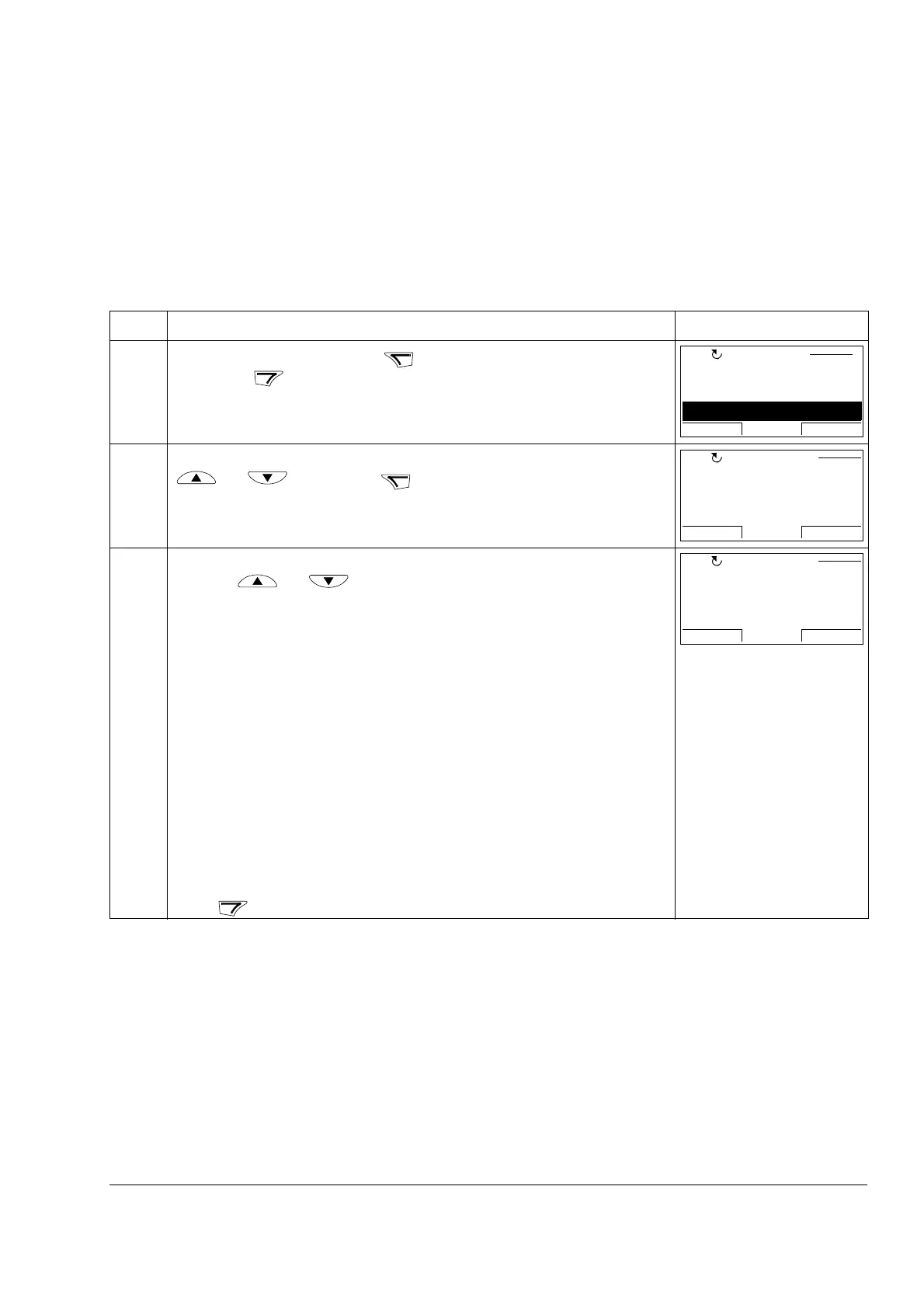

Step Action Display
1. Go to the Main menu by pressing if you are in the Output mode, otherwise
by pressing repeatedly until you get to the Main menu.
2. Go to the Drive info option by selecting DRIVE INFO on the menu with keys
and , and pressing .
3. The display shows information about the drive. You can scroll the information
with keys and . Note: The information shown may vary according
to the firmware version of the drive.
DRIVE NAME: Drive name defined as a text in DriveStudio commissioning and
maintenance tool
DRIVE TYPE: Product variant, e.g. ACSM1 Speed or ACSM1 Motion
DRIVE MODEL: Type code of the drive
FW VERSION: See page 41.
SOLUTION PROGRAM: Information on the active solution program
STANDARD LIBRARY: Version information of the standard library in the
firmware
TECHNOLOGY LIBRARY: Optional. Version information of the technology
library
POWER UNIT SERNO: Serial number of the power stage (JPU)
MEM UNIT HW SERNO: Serial number in manufacturing the memory unit
(JMU)
MEM UNIT CONFIG SERNO: Serial number in configuring the memory unit
(JMU).
Press to return to the Main menu.
MENU
EXIT
PAR BACKUP
REF EDIT
DRIVE INFO
EXIT ENTER
00:00
MAIN MENU 6
LOC
ENTER
EXIT 00:00
DRIVE NAME
-
DRIVE TYPE
ACSM1 Motion
DRIVE MODEL
DRIVE INFO
LOC
EXIT
EXIT 00:00
FW VERSION
UMFI, 1330, 0,
SOLUTION PROGRAM
-
STANDARD LIBRARY
DRIVE INFO
LOC
