Aztec 600 aluminium, ammonia, color, iron, manganese, phosphate
Single- and multi-stream colorimetric analyzers 13 Maintenance
68 IM/AZT6CR–EN Rev. J
2. Referring to Fig. 13.5:
a. Note the routing of the waste tube (recorded in
Section 13.3.4, step 4a).
b. Remove the tube from clip
C and discard.
c. Route the new waste tube as noted in step a and
connect it to the waste valve connector
D on the
valve manifold.
3. Referring to Fig. 13.6:
a. Disconnect the interconnecting tube (recorded in
Section 13.3.4, step 4a) from the connector
E at
the base of the measurement cell assembly and
discard.
b. Fit the new interconnecting tube to the valve
manifold center connection
F.
Do not connect the tube to connector
E at this
stage.
Caution. Ensure the correct tube is fitted
– AW630 371 (Tygon 3603)

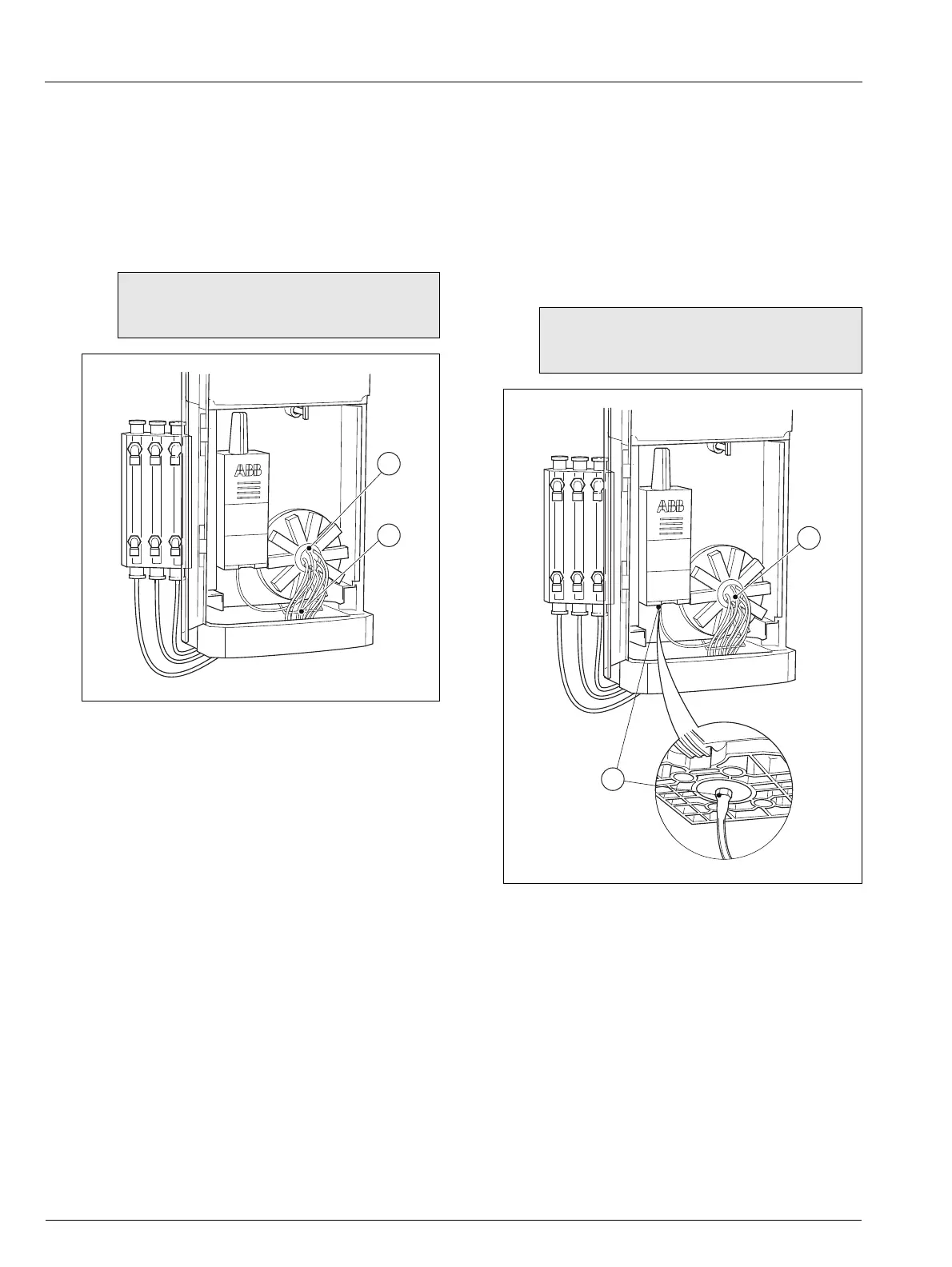

Fig. 13.5 Replacing the Waste Tube
Caution. Ensure the correct tube is fitted:
– AW630 370 (Tygon 3603)
Fig. 13.6 Replacing Interconnecting Tube
