Technical specifications 3 – 20 Advant Controller AC 31 / Issued: 01.99
3
Technical specifications of the analog central extension, continued
XM 06 B5
Analog outputs Voltage Current
- Nominal range
- Max. current
+/- 10 V
2 mA
0…20 mA
4…20 mA
20 mA
- Isolation of the outputs/electronic
- Resolution
500 V
11 bits + sign
500 V
12 bits
- Min output resolution (± 1 LSB)
+/- 5 mV +/- 5 µA
- Word value range +/- 32767 0… 32767
- Linearity of full range 1.2 % 1.3 %
- Max. resistance
400 Ω
- Diagnosis no no
- Cable length:
shielded
50 m
yes
50 m
yes
- Permissible total voltage drop at the sensors and lines circuited in series = Max 8 V
- Configuration: Voltage Current
- With push-button yes yes
- With connection elements (CE) yes (chapter 5.4 – configuration)

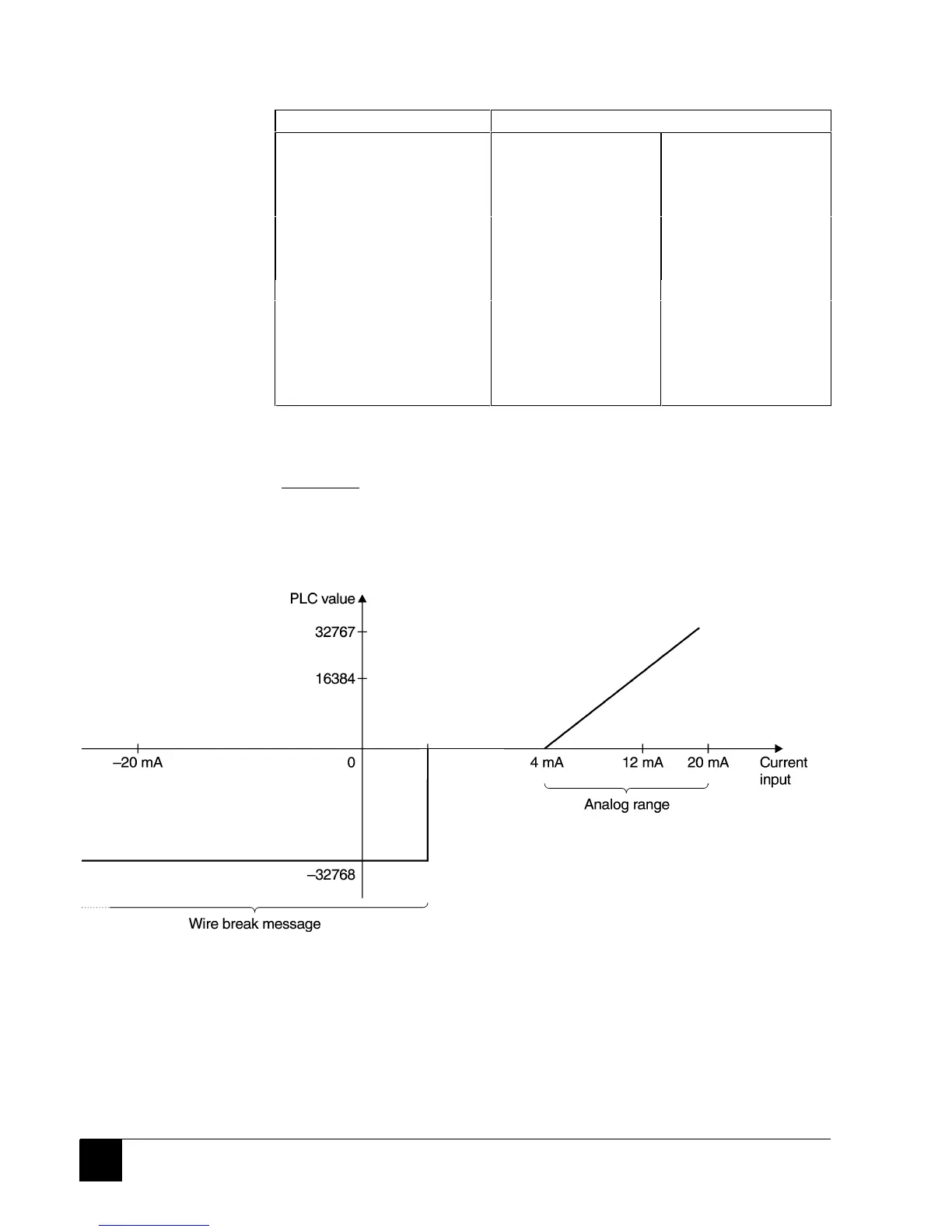

3.6.3 Analog inputs diagrams
Current 4-20 mA:
3.75 mA
