Technical specifications 3 – 30 Advant Controller AC 31 / Issued: 01.99
3
3 – Cage clamp type connectors
Cage clamp type connectors enable rapid cabling of all the 40 and 50 series products.
Installation involves:
- connection using the supplied tool (see Figure 14) or with a screwdriver (see
Figure 15)
- insertion of the bare wire.
The wires should meet the following specifications:
- rigid or multi-conductor wire in accordance with AWG 28 (0.08 mm²) to AWG 12
(3.1 mm²)
- wire bares for a length of 8 - 9 mm
The following connector kits are available:
07 ST 52 2 cage clamp type connectors for digital channels
07 ST 54 A set of cage clamp type connectors for basic units or remote units
07 ST 55 A set of cage clamp type connectors for XI 16 E1 extension
07 ST 56 A set of cage clamp type connectors for XO 08 R1or XC 08 L1 extensions
07 ST 57 A set of cage clamp type connectors for XM 06 B5 extension

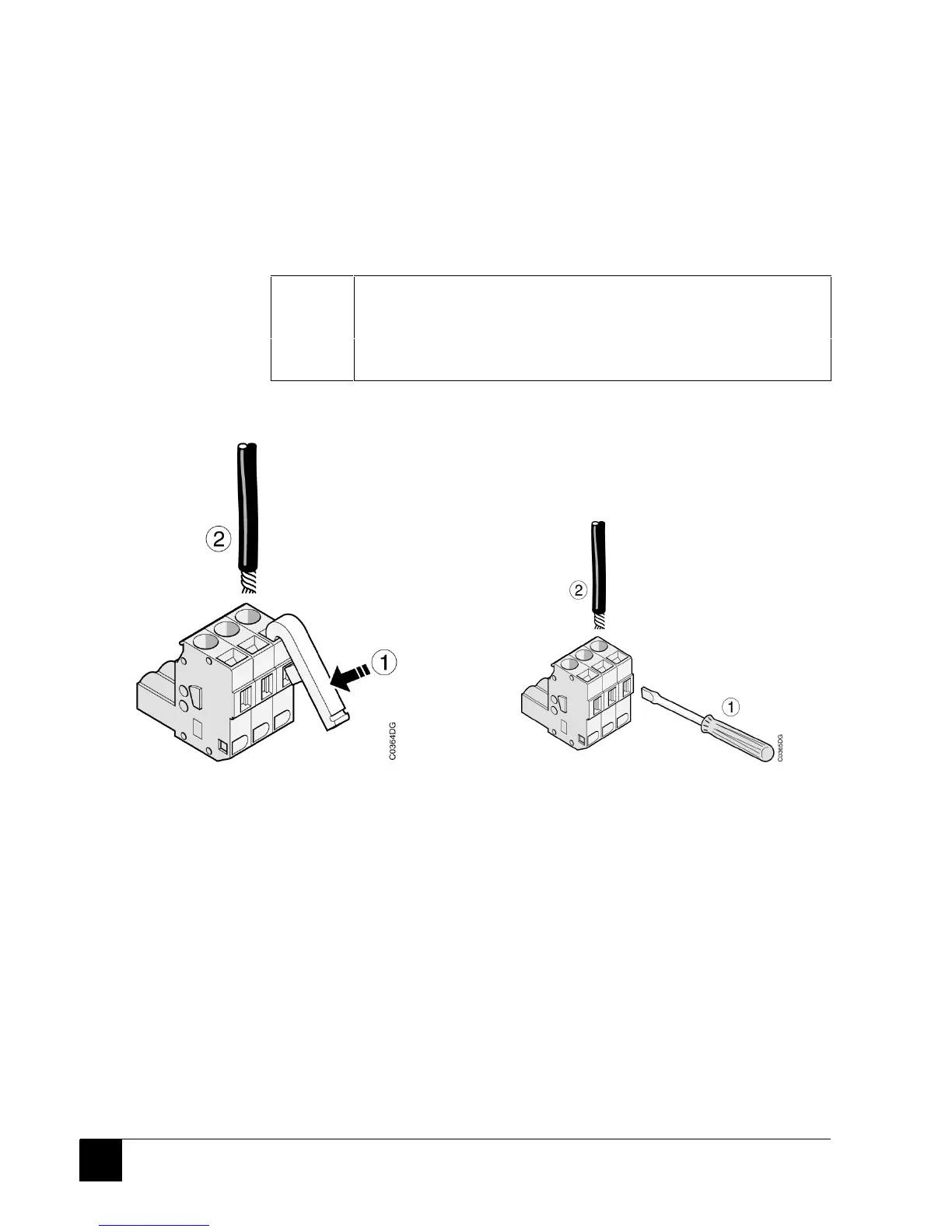

Figure 14: Cage clamp type connectors Figure 15: Cage clamp type connectors
3.7.5 Labels
A set of 100 labels is available for labelling the I/O channels used.
The user writes on the labels and they are then stuck inside the cover flaps.
