3.3 Models and range of equipment
NOTE – D The choice of the inverter model must be made by a qualified technician who knows
about the installation conditions, the devices that will be installed in addition to the inverter
and possible integration with an existing system.

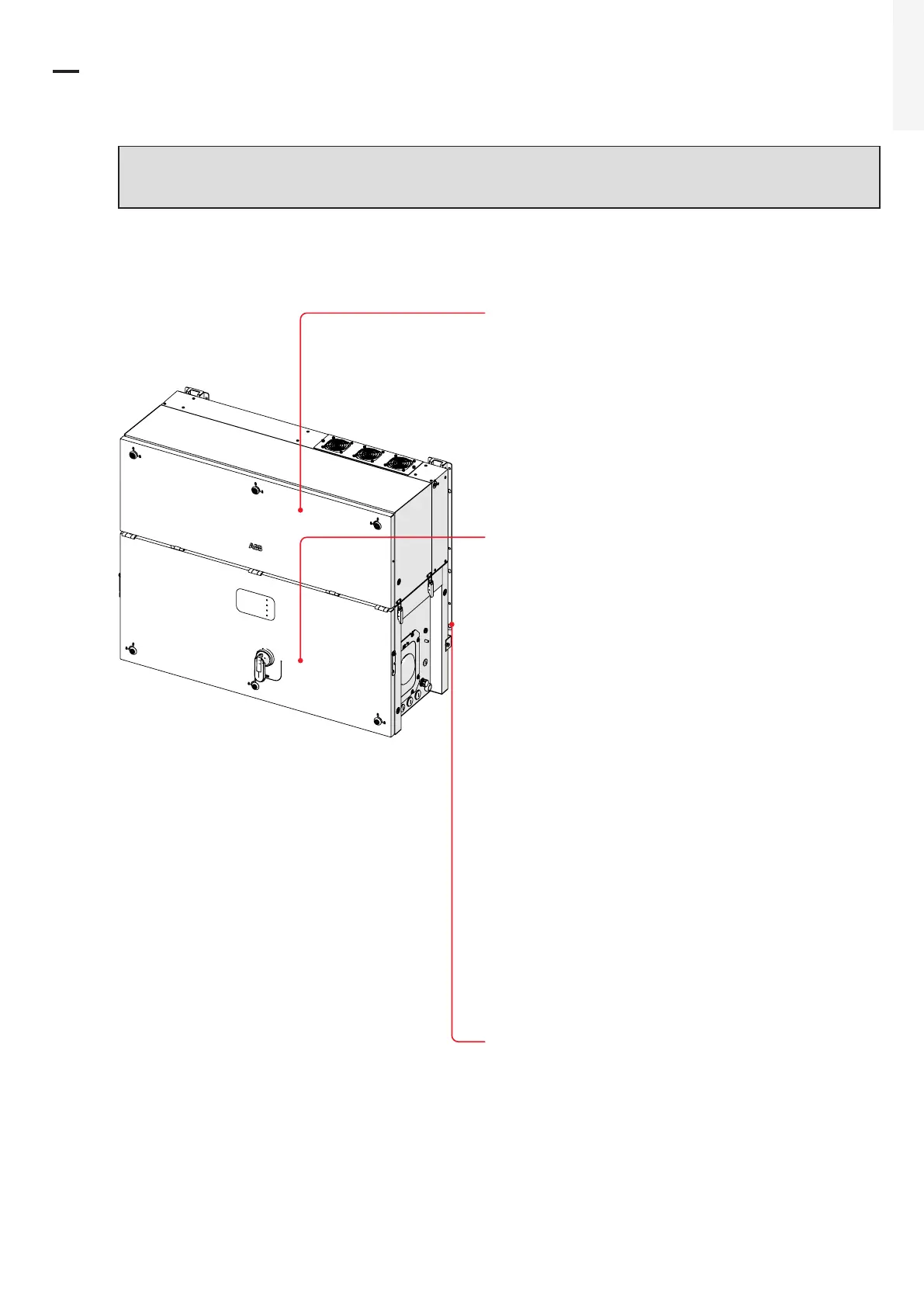

The parts of equipment which make up the inverter are:
Three-phase power module:
• PVS-175-TL-POWER-MODULE-1
175kW output power with precharge module
• PVS-175-TL-POWER-MODULE-2
175kW output power without precharge module
Wiring box:
• WB-S-PVS-175-TL
24 quick fit connector pairs (2 each mppt)
DC disconnection switches
DC side varistor
• WB-S2-PVS-175-TL.
24 quick fit connector pairs (2 each mppt)
DC disconnection switches
AC disconnection switch
DC side varistor
• WB-SX-PVS-175-TL.
24 quick fit connector pairs (2 each mppt)
DC disconnection switches
SPD Type 2 Pluggable Cartridges (DC & AC)
• WB-SX2-PVS-175-TL.
24 quick fit connector pairs (2 each mppt)
DC disconnection switches
AC disconnection switch
SPD Type 2 Pluggable Cartridges (DC & AC)
Mounting Braket:
• PVS-175-TL-BRACKET.
