53Installation
EN
5.4.2 Assembly the inverter to the bracket
LIFTING – U Handling and installation operations shall be performed only by using the special
tools and accessories provided with “PVS-175 Installation Kit” that have to be ordered
separately. The use of these equipment are mandatory to safely install the inverter. Refer to “Kit
of recommended spare parts” paragraph content in the user manual for further information.
• Lift the wiring box (02) up to the bracket using the optional handles (04) or another appropriate lifting
device.
LIFTING – U Risk of injury due to the heavy weight of the equipment. Always consider the center
of gravity of the enclosures while lifting.

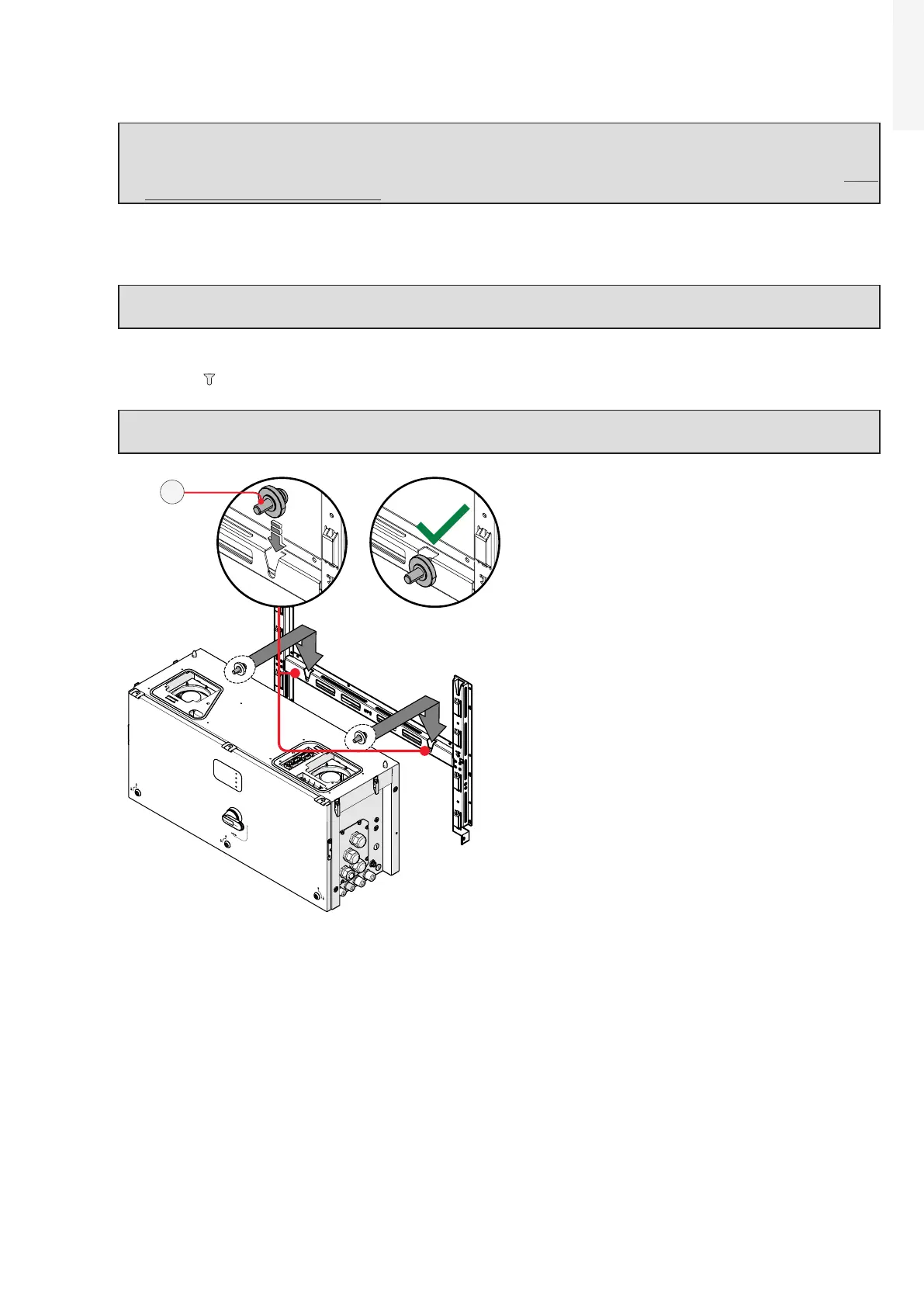

• Insert the heads of the two rear attachment pins (17) (placed on the rear part of the wiring box) into the
two slots located on the bracket (03).
ATTENTION – A Check that the pins (17) have been correctly inserted in the slots as shown in the
picture before releasing the wiring box.
PVS
17
• Remove handles (04) or other lifting device (if used)
