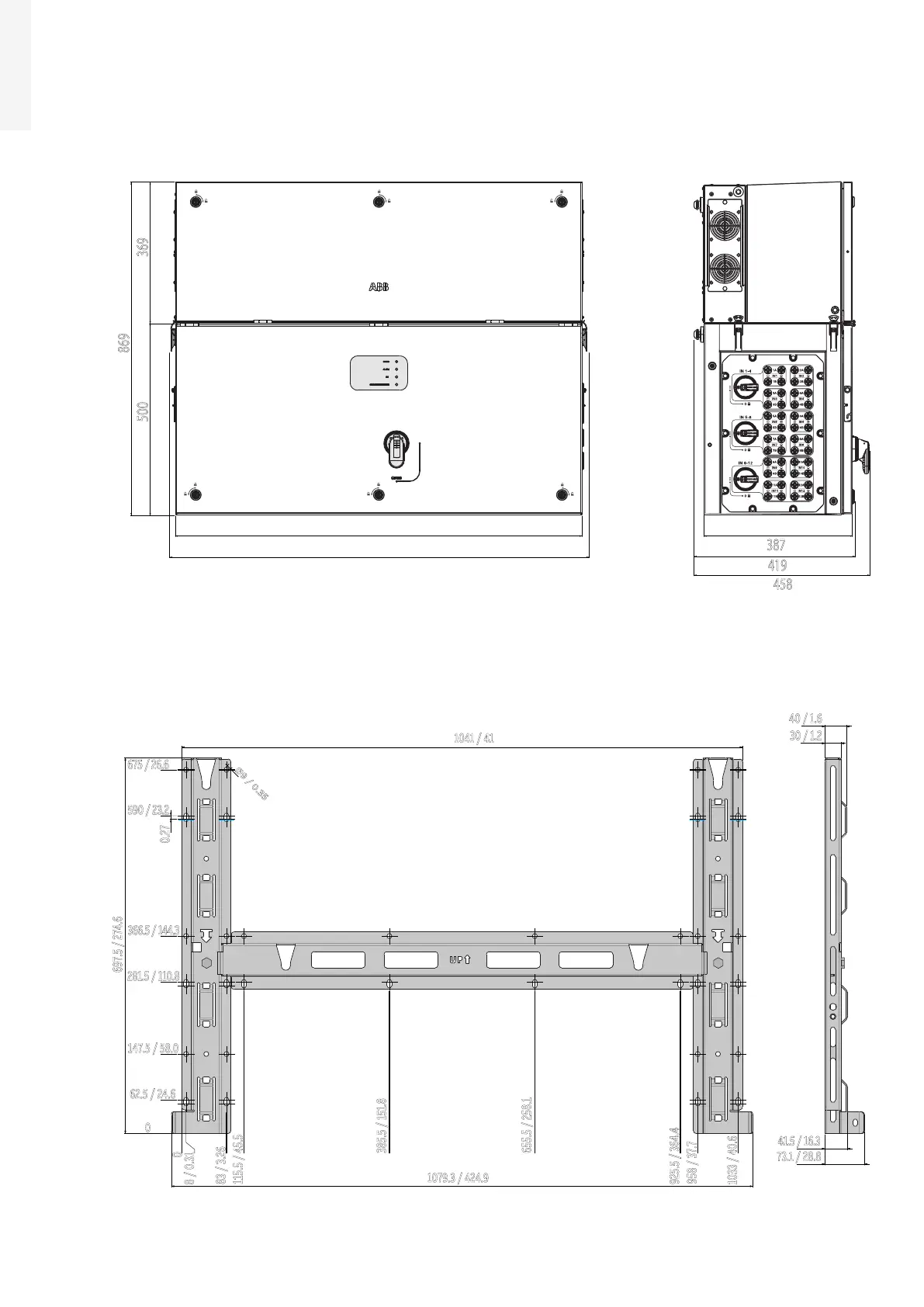

3.5.3 Overall dimensions of the inverter
The overall dimensions, not including the mounting bracket (03), are expressed in millimeters.
369
500
1060
1086
869
387
458
419
PVS-175
3.5.4 Overall dimensions of the mounting bracket
The dimensions of the wall mounting bracket (03) are expressed in millimeters and inches.
73.1 / 28.8
41.5 / 16.3
30 / 1.2
40 / 1.6
Ø9 / 0.35
1041 / 41
675 / 26.6
590 / 23.2
697.5 / 274.6
0.27
0
8 / 0.31
366.5 / 144.3
281.5 / 110.8
147.5 / 58.0
1079.3 / 424.9
83 / 3.26 115.5 / 45.5
385.5 / 151.8 655.5 / 258.1
925.5 / 364.4
958 / 37.7
1033 / 40.6
62.5 / 24.6
0
The diameter of holes in the bracket are 9mm / 0,35”.
