5.4 Mounting Instruction
5.4.1 Bracket assembly

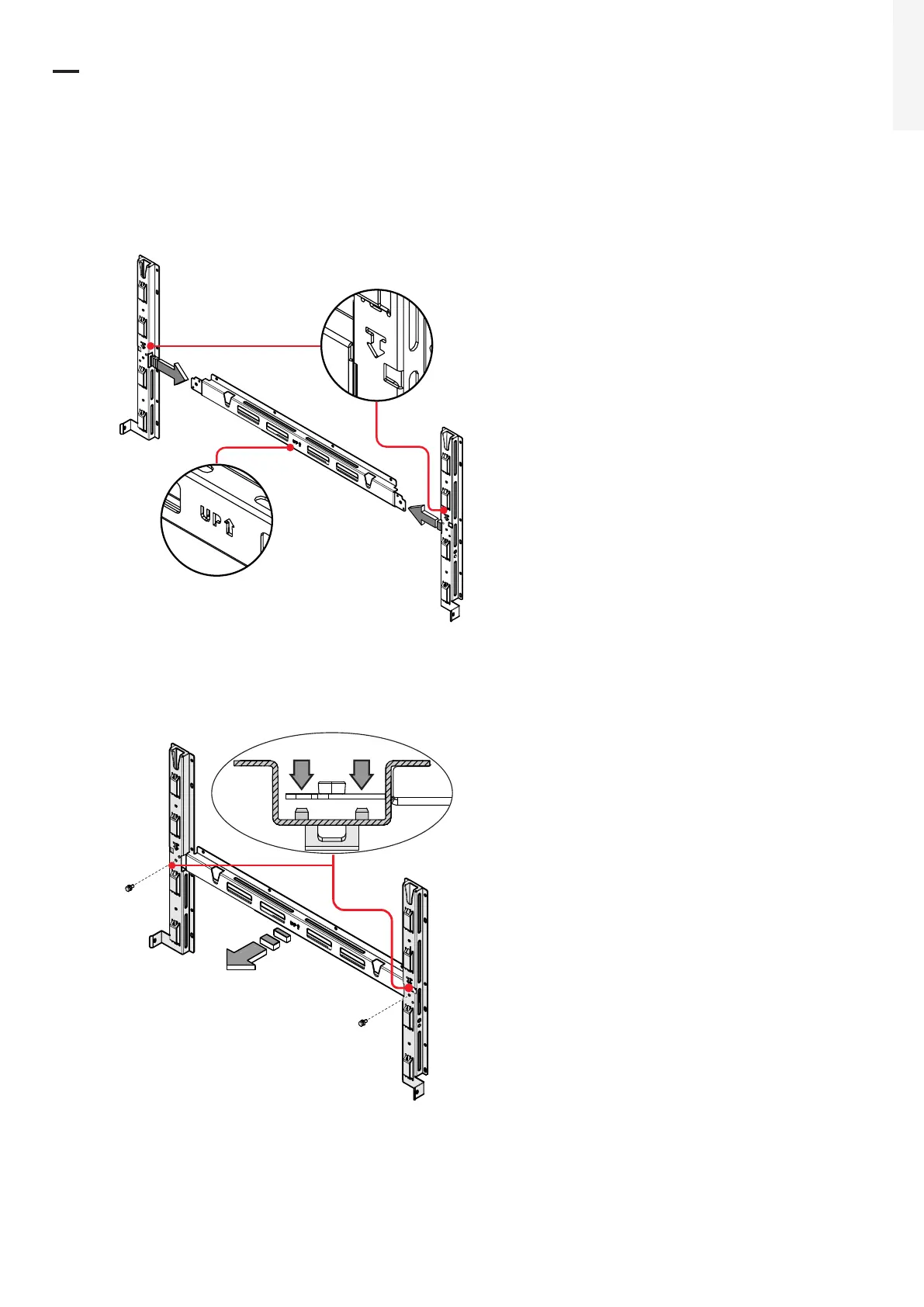

• Assembly the two side bracket parts together with the central bracket part, by sliding it as shown in the
picture and paying attention to the orientation of the parts (refer to arrow and “UP” markings on the
brackets): side brackets arrow have to be turned downwards, central bracket have to be turned upwards.
• Slide the central bracket in order to match the two holes with the centerning pins of the side brackets.
• Use the two M8 screws with flat and spring washers (supplied) to fix all parts of bracket together.
•
Position the bracket (03) perfectly level on the support and use it as drilling template.
Consider the overall dimensions of the power module (01) and the wiring box (02).
•
It is an installer’s responsibility to choose an appropriate number and distribution of attachment points.
The choice must be based on the type of support (wall, frame or other support), the type of anchors to
be used, and their ability to support at least 4 times the inverter’s weight (4x153Kg=612Kg for all models).
