4.7 Kit of recommended spare parts

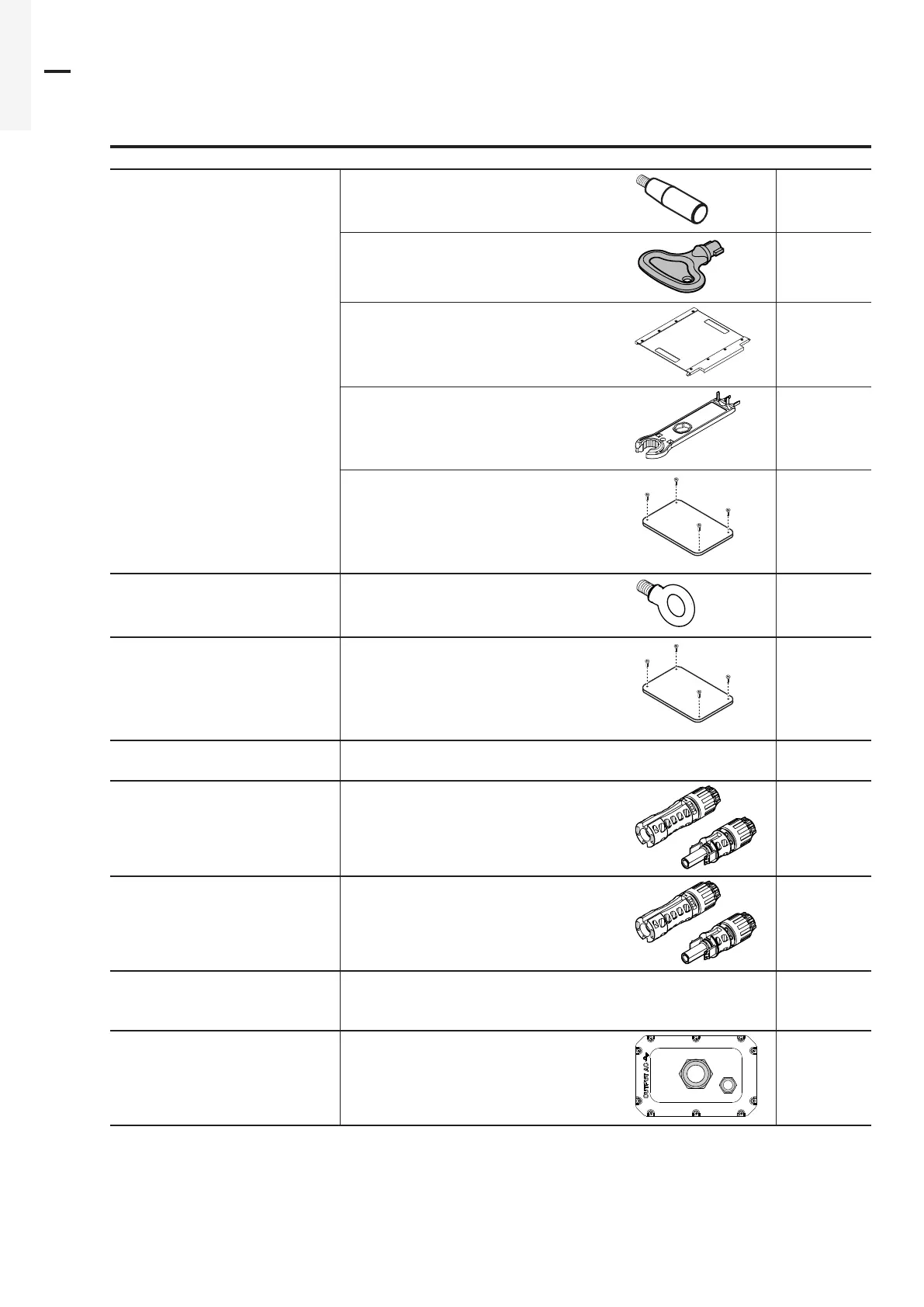

Code Description Quantity
PVS-175 INSTALLATION KIT
Kit of M8 handles (04)
4
Key tool for front cover quarter cam-
lock (05)
1
Gasket protective covers (for
installation purpose)
2
PV quick fit connector (18)
disconnection tool
1
IP65 protection covers with screws
for wiring box openings (for
temporary installation of wiring box
only)
2 (with 8
screws)
EYEBOLTS KIT Eyebolts for lifting 4
PVS-175 IP65 COVERS KIT
IP65 protection covers with screws
for wiring box openings (for
temporary installation of wiring box
only)
2 (with 8
screws)
KIT SURGE AC SIDE PVS-175
Kit of spare cartridges for AC surge arresters type 2
(25)
3
KIT MC4 EVO mating part
(complete)
Quick fit connectors for DC cable
mating kit (24 couples)
24 female
24 male
KIT MC4 EVO mating part
(single channel)
Quick fit connectors for DC cable
mating kit (2 couples)
2 female
2 male
PVS-175 FAN KIT
1 external fan sets for power module (DC/DC side),
1 external fan sets for power module (AC/DC side),
2 internal air circulating fans for wiring box
2 + 2
AC MULTICORE CABLE
GLAND PLATE
AC multicore cable gland plate
(Supports M63 (11) Ø 37…53mm
+ M32 Ø (25) 18...25mm)
1
