Mechanical installation 31
Moving the unpacked inverter cabinet
Lifting the cabinet with a crane

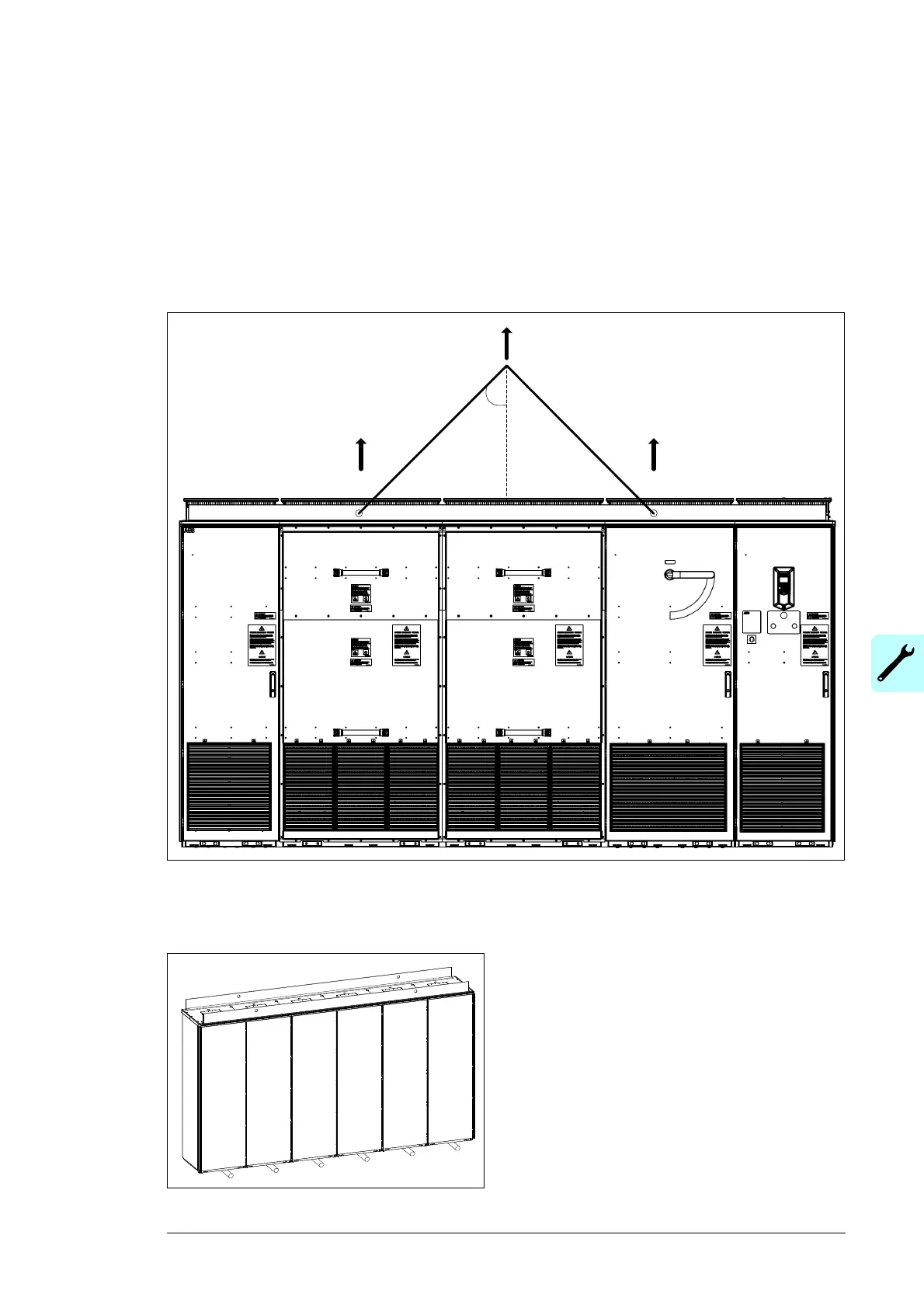

Lift the inverter cabinet using its lifting beams. You can remove the lifting beams after the
cabinet is in its final position. If you remove the lifting beams, seal their mounting holes to
retain the degree of protection.
The distance between the lifting holes in the lifting beam is 2150 mm (7’).
The minimum length of the lifting slings is 1600 mm (5’3”).
Moving the cabinet on rollers
Lay the cabinet on the rollers and move it carefully until close to its final location. Lift the
unit with a crane, forklift, pallet truck or jack to remove the rollers.
< 45°
Minimun length
1600 mm
