Mechanical installation 33

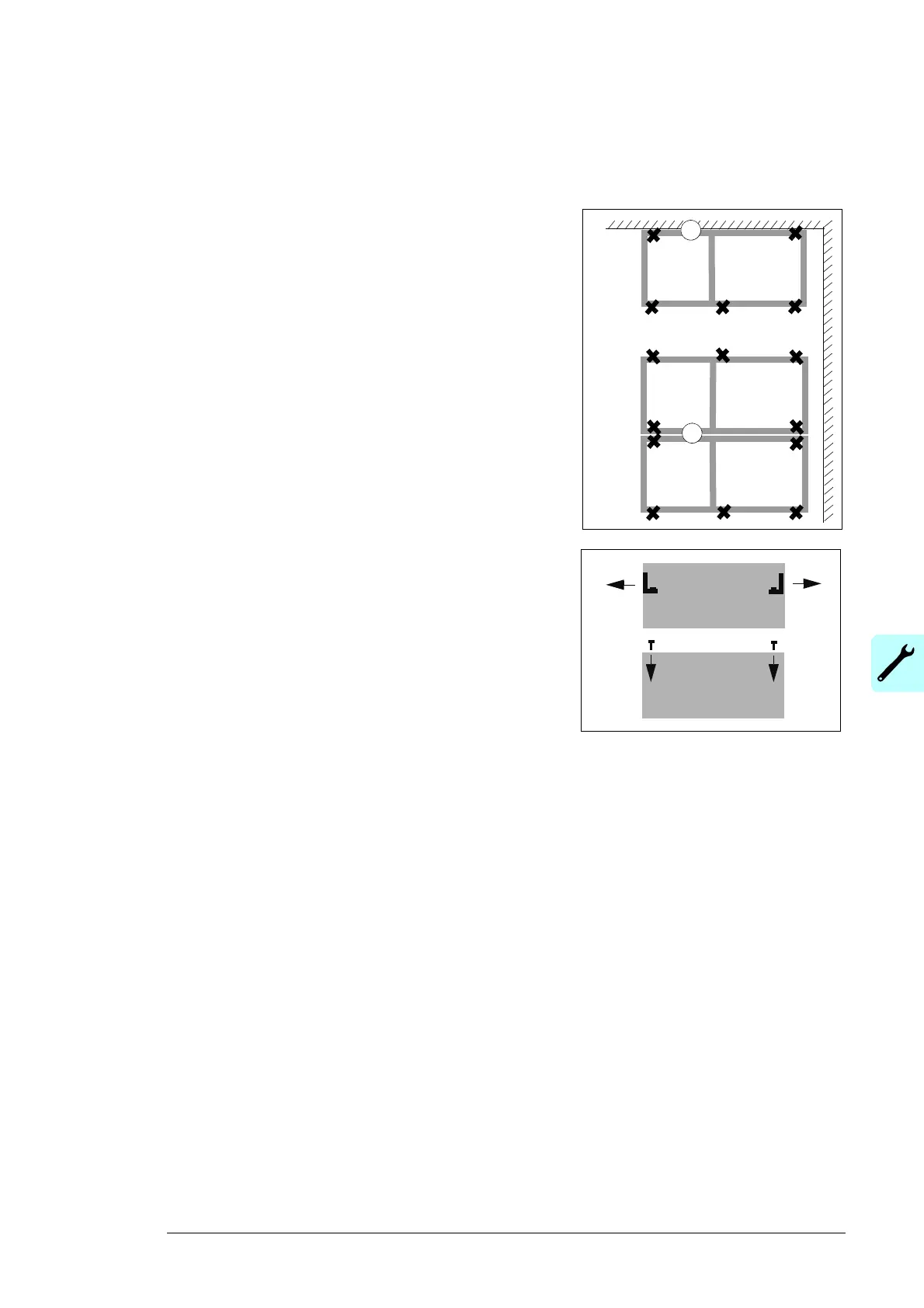

Fastening the cabinet to the floor and wall or roof
General rules
• Install the inverter in an upright vertical position.
• You can install the cabinet with its back against a
wall (a), or back-to-back with another unit (b).
• To adjust the height of the cabinet, use metal
shims between the cabinet bottom and the floor.
• When you remove the lifting beams, fasten the
bolts to retain the degree of protection of the
cabinet.
