3 Installation
Pos: 8.2 /Überschri ften/1.1/1-spalti g/A - C/Antriebskontr olle @ 10\mod_11816325 27031_3101.doc @ 103415
3.1 Actuator check
Pos: 8.3 /Montage/Aktor ik/Elektr. Sc hwenkantriebe/Allge mein/Antriebskontr olle RHD @ 16\mod_11972728 53218_3101.doc @ 144955
Before you start to install the actuator make sure that the delivery status corresponds to the
ordered status and to the intended use.
• Check the oil level when installing the device in positions other than IMB 3.
• Did you fasten the separately delivered venting plug in the uppermost bore (depending on
the mounting orientation)?
• Make sure that the motor and the connection chambers are free of dirt, moisture and
corrosion.
Pos: 8.4 /Überschri ften/1.1/1-spalti g/D - F/Einbaulage @ 3\mod_ 1158651041937_3101.doc @ 41702
3.2 Mounting position
Pos: 8.5 /Montage/Ak torik/Elektr. Sc hwenkantriebe/RHD250 ...4000/Einbaulag e Zeichnung @ 14\mod_11942 60228968_3101.doc @ 135729
The spur gears of the actuator RHD250 ... 4000 are oil lubricated. They contain the max. oil
quantity when leaving the manufacturer. Once the actuator is installed replace the uppermost
check plug by the separately supplied venting plug.
IMB 3
IMB 6
IMB 7
IMB 8
IMV 6
IMV 5
1
2
M00366

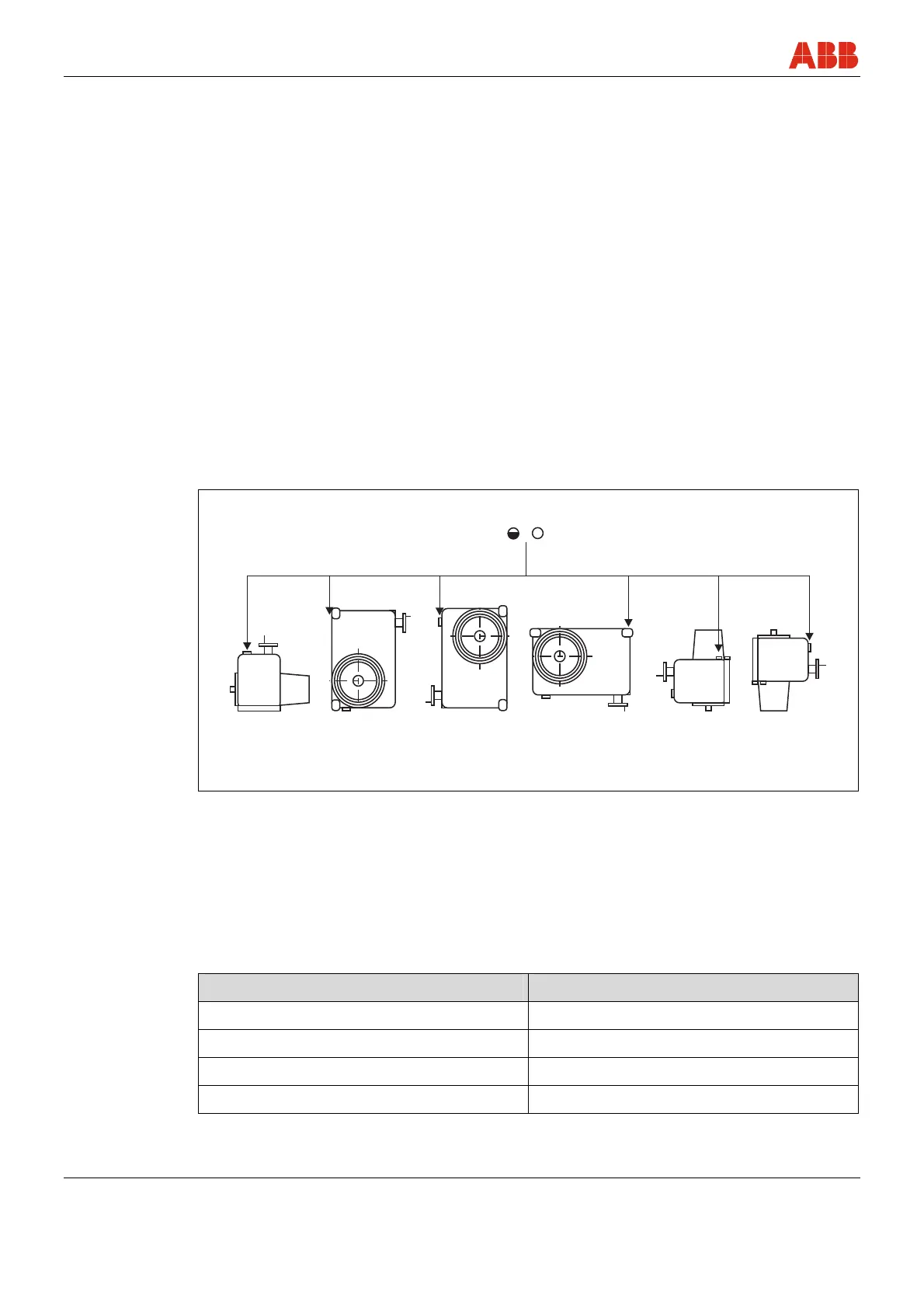

Fig. 3
1 Inspection plug 2 Venting plug
Pos: 8.6 /Montage/Ak torik/Elektr. Sc hwenkantriebe/RHD250 ...4000/Einbaulag e RHD250...4000 @ 14\mod_1 194260186359_3101. doc @ 135705
All mounting orientations shown in fig. Fig. 3 are permissible. To facilitate mounting and
maintenance, however, it is recommended to use orientation IMB 3. For each mounting
position, check the oil level prior to commissioning.
In order to ensure sufficient ventilation and space for the motor de-/installation allow for the
following min. space to the motor hood:
Actuator Space
RHD250 60 mm (2.36 inch)
RHD500/800 60 mm (2.36 inch)
RHD1250/2500 80 mm (3.15 inch)
RHD4000 80 mm (3.15 inch)
