3.6 Dimensioned drawings
Pos: 8.27 /Überschri ften/1.1.1/1-spal tig/Hebeltrieb RHD 250 @ 14\mod_119426076121 8_3101.doc @ 135777
3.6.1 Lever for RHD250
Pos: 8.28 /Technische Dat en / Datenblatt/Akt orik/Antriebe/Sc hwenkantriebe/El. S chwenkantrieb RHD 250 (Contr ac)/Maßbild Hebel trieb @ 5\mod_11528655 63125_3101.doc @ 34924
4
1
2
3
M00112
265
50
16
5
21
50
- 0,051
45
- 0,015
150
40
120
8
33,3
+0,2
60
30
+ 0,033
0,000
200
40
Ø18
30
74
18
23
100 ... 120
L-220
L
18
100 ... 120
23
99
19

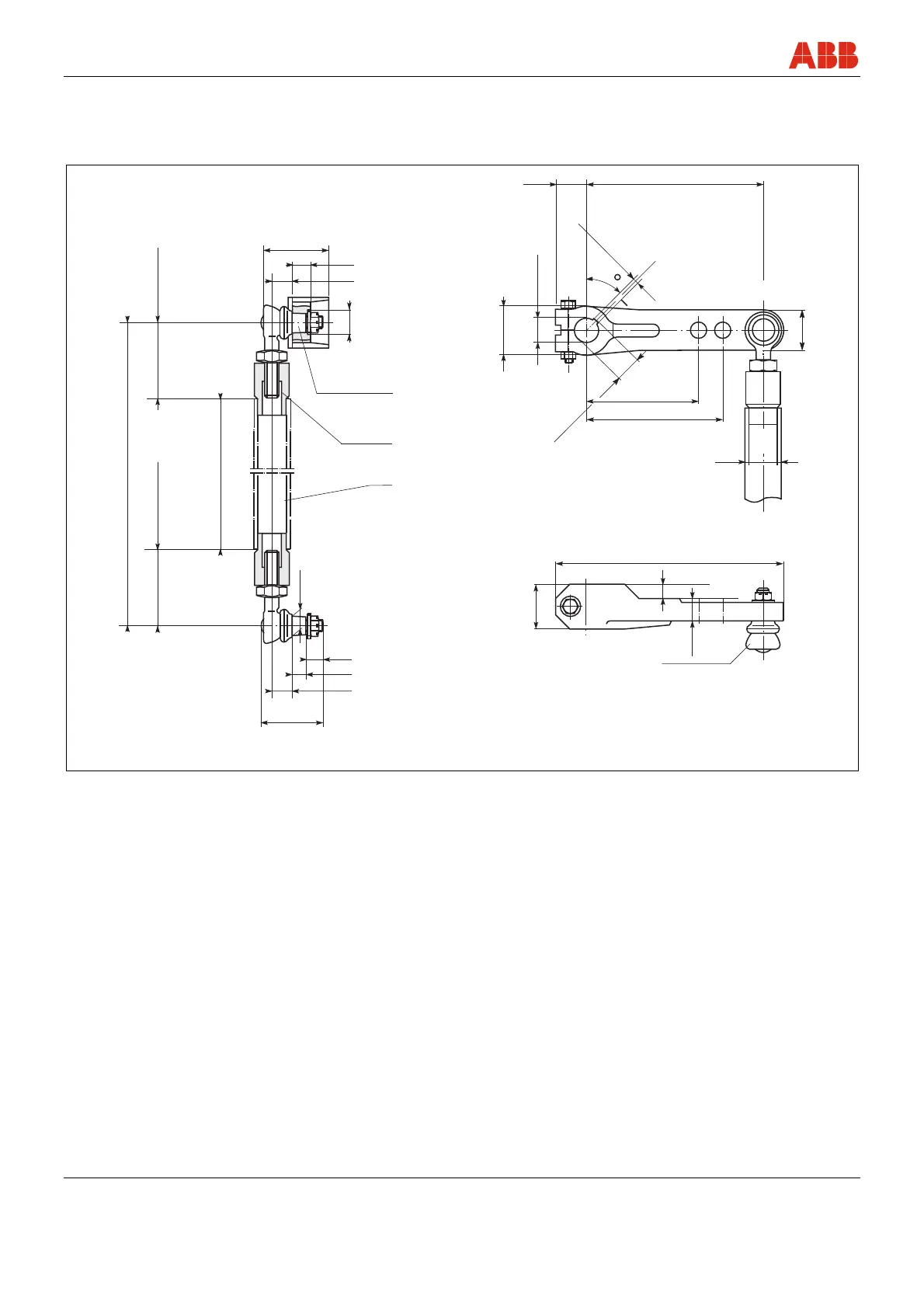

Fig. 6: Dimensions in mm
1 Cone 1 : 10
2 Welding bushings are part of shipment
3 Connection pipe 1 1/4” DIN 2440 resp. 1 1/4” schedule 80 pipe
size “L” acc. to requirements. The pipe is not included in
shipment.
4 Angular deflection of ball and socket joint:
Pointing towards the actuator: max. 3°
Pointing away from the actuator: max. 10°
