Ekip Touch - Interface and menus
2 - Navigation
10 | © 2023 ABB | 1SDH001316R1002 - ECN000297030
2 - Navigation

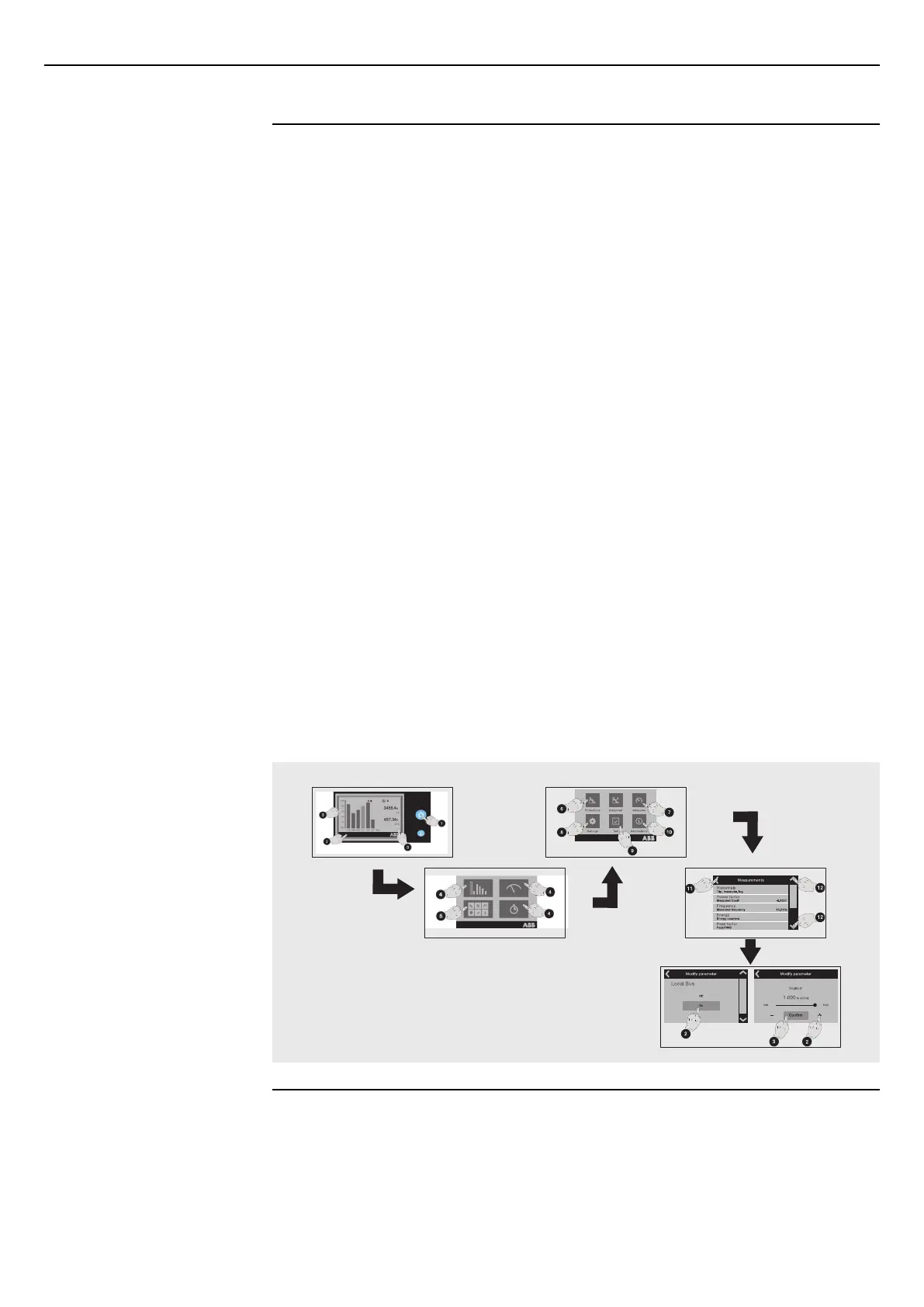

Levels and pages
The Ekip Touch menu is divided into several levels, all accessible using the touchscreen display and
buttons available in the units:
Level 1 (HOME)
Page shown on power up; appears when push-button of the same name appears, as described on page
9; from here you can:
1. access the
MAIN PAGE (level 2), by pressing the HOME button
2. access the
Alarm list , by selecting the diagnostic bar at the bottom
3. access the
Summary pages of some of the measurements by pressing on the edges
Level 2 (MAIN PAGE)
This page allows you to:
4. access one of the graphic pages:
Histograms , Measuring instruments and Measurements
5. access the MENU AREA (level 3)
Level 3 (MENU AREA):
You can access all the configuration menus and consult the parameters in this page
6.
Protections and Advanced
7. Measures
8. Settings
9. Test
10. About
Level 4 (MENUS and SUBMENUS)
Selection of one of the level 3 menus accesses a set of submenus with the list of available options, which
are organized into several levels through to details of the specific parameter.
Each submenu has a command for returning to the previous menu (11); if the list contains more than five
options, there is also a scroll bar (12) for full consultation.
L1evel
L2evel
L3evel
L4evel
Figure 3

ABB SACE Emax 2 Specifications

General

Type	Air circuit breaker
Rated Current	800 A to 6300 A
Breaking Capacity	Up to 150 kA at 415 V AC
Frequency	50/60 Hz
Number of Poles	3, 4
Installation	Fixed or withdrawable
Standards	IEC 60947-2
Trip Unit	Ekip Touch, Ekip Hi-Touch
Communication	Modbus, Profibus, Ethernet
